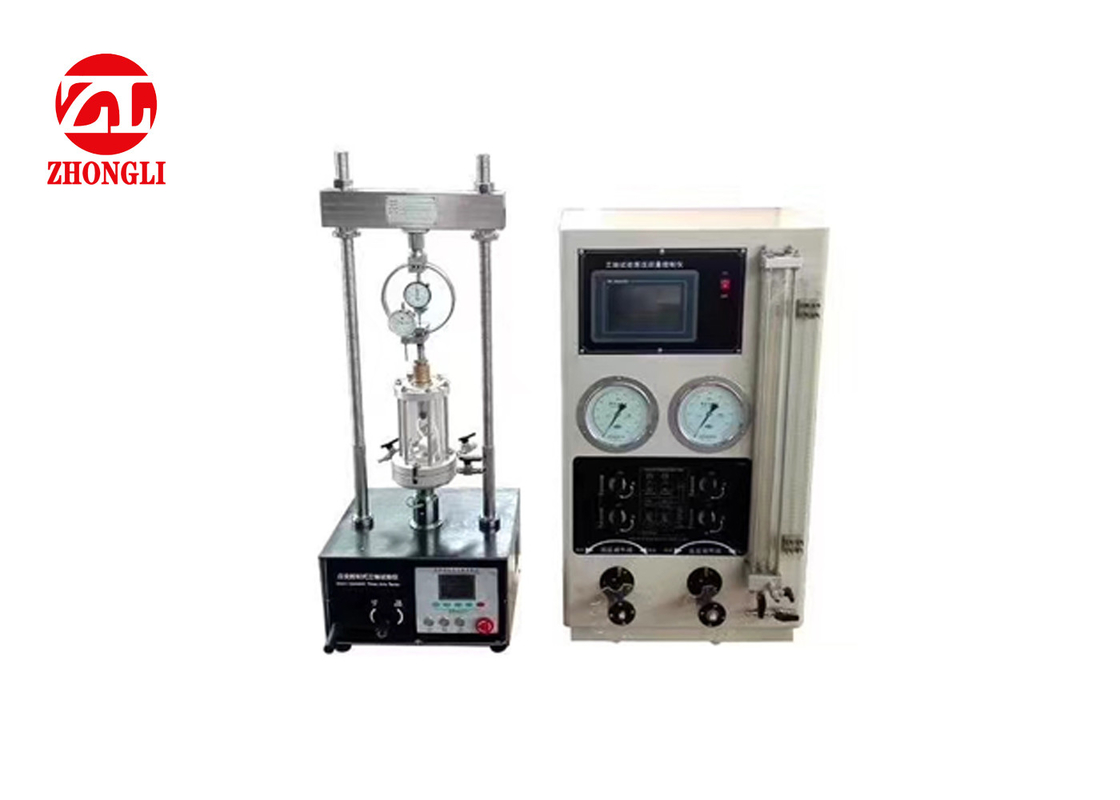

10KN Automatic Triaxial Test Apparatus Soil Strain Controlled Geotechnical

10KN Automatic Triaxial Test Apparatus Soil Strain Controlled Geotechnical
10KN Automatic Triaxial Test Apparatus Soil Strain Controlled Geotechnical

Large Image :  10KN Automatic Triaxial Test Apparatus Soil Strain Controlled Geotechnical

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-2431
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged within wooden case
Delivery Time: 5-7 days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 set per month
Detailed Product Description
Specimen Size: Φ39.1mm X 80mm Load: 10KN Maximum Maximum Load 10KN
Strain Rate: 0.016-1.6mm/min. Mechanical Transmission 6 Gears Table Stroke: 50mm Maximum
Confining Pressure: (σ3) 0-1MPa Back Pressure: (σb) 0-0.6MPa
Pore Pressure: (u) 0-1MPa Volume Change: 0-25ml, Small Division: 0.1ml
Axial Displacement: 0-30mm (micrometer) Power Supply: 220V±10% 50Hz
Instrument Size:: Controller: 500 X 500 X 925mm (L X W X H)
High Light:

10KN Triaxial Test Apparatus

,

Automatic Triaxial Test Apparatus

,

Geotechnical Laboratory Testing Instrument

10KN Automatic Soil Strain Controlled Triaxial Instrument Geotechnical Triaxial Test Instrument



Application



ZL-2431 Strain Control Triaxial Instrument is used in general geotechnical laboratories and teaching experiments in colleges and universities. The instrument is a strain control type, which is used to measure the triaxial shear test of the strength and deformation characteristics of the soil sample with a maximum surrounding pressure of 1.0MPa and a diameter of Φ39.1mm under the condition of axial static load, and can be unconsolidated and undrained. Triaxial testing of shears (UU), consolidated undrained shears (CU) and consolidated drained shears (CD).



Technical Parameter



Specimen Size Φ39.1mm X 80mm
Load 10KN maximum maximum load 10KN
Strain Rate 0.016-1.6mm/min. Mechanical transmission 6 gears
Table Stroke 50mm maximum
Confining Pressure (σ3) 0-1MPa
Back Pressure (σb) 0-0.6MPa
Pore Pressure (u) 0-1MPa
Volume Change 0-25ml, small division: 0.1ml
Axial Displacement 0-30mm (micrometer)
Power Supply 220V±10% 50Hz
Instrument Size: Main body: 350 x 300 x 1100mm (L x W x H)
Controller: 500 x 500 x 925mm (L x W x H)
