Name: | Horizontal Torsion Spring Testing Machine | Maximum Test Torque: | 1-5000 MN﹒m |
---|---|---|---|
Measurement Range: | 5~500 (mN﹒m), 0.01~1 (N﹒m,Can Be Customized | Angle Resolution: | 0.1° |
Measuring Angle Range: | 0~ ±9999.9° | Specimen Rotation Diameter: | φ100mm |
Specimen Length: | 150mm | Loading Method: | Manual |
Accuracy: | ±1% | ||
Highlight: | horizontal torsion spring tester,5000 mN·m torque tester,laboratory spring tester ±1% accuracy |

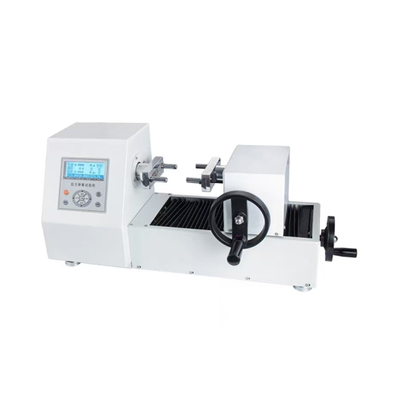

Horizontal Torsion Spring Testing Machine
Product Overview:
The Horizontal Torsion Spring Testing Machine is an intelligent multi-functional instrument designed for testing various torsion springs, including spiral springs and elastic torque components. It features high precision, user-friendly operation, and portability, making it ideal for electrical, light industrial, mechanical manufacturing, and research applications.
1. High precision, high resolution, fast sampling speed, large screen display.
2. Upper and lower limits can be set, with sound and light alarm function
3. Three parameter display (torque value, rotation angle, spring stiffness).
4. Three units N·m, kgf·cm, Ibf·in can be converted to each other.
5. Real-time, peak, automatic peak three modes can be switched at will.
6. Peak hold, automatic release function, release time can be set freely.
7. Automatic shutdown function without operation, time can be set freely.
8. Large storage capacity, can save 99 sets of test data.
9. Automatic shutdown function without operation, time can be set freely.
10. Built-in micro printer (optional).
11. USB interface communicates with PC, can be connected to computer for synchronous testing.
Technical Specifications:
1.Measurement parameters:
Model | Maximum Test Torque | Measurement Range |
Minimum Reading Value (N﹒mm) |
ZL-500A | 500 mN﹒m | 5~500 (mN﹒m) | 0.01 mN﹒m |
ZL-1000A | 1000 mN﹒m | 10~1000(mN﹒m) | 0.1 mN﹒m |
ZL-2000A | 2000 mN﹒m | 20~2000(mN﹒m) | 0.1 mN﹒m |
ZL-5000A | 5000 mN﹒m | 50~5000(mN﹒m) | 0.1 mN﹒m |
ZL-1 | 1 N﹒m | 0.01~1 (N﹒m) | 0.0001 N﹒m |
ZL-2 | 2 N﹒m | 0.02~2 (N﹒m) | 0.0001 N﹒m |
ZL-5 | 5 N﹒m | 0.05~5 (N﹒m) | 0.0001 N﹒m |
ZL-10 | 10 N﹒m | 0.1~10 (N﹒m) | 0.001 N﹒m |
ZL-20 | 20 N﹒m | 0.2~20 (N﹒m) | 0.001 N﹒m |
ZL-30 | 30 N﹒m | 0.3~30 (N﹒m) | 0.001 N﹒m |
ZL-50 | 50 N﹒m | 0.5~50 (N﹒m) | 0.001 N﹒m |
2. Angle resolution: 0.1°
3. Measuring angle range: 0~ ±9999.9°
4. Specimen rotation diameter: φ100mm
5. Specimen length: 150mm
6. Loading method: manual
7. Accuracy: ±1%
8. Power supply: AC220V 50Hz
9. Dimensions: 710×320×290 (mm)
10. Weight: about 37.5Kg
