Professional Intelligent Ultrasonic Flaw Detector Machine Highly Accurate

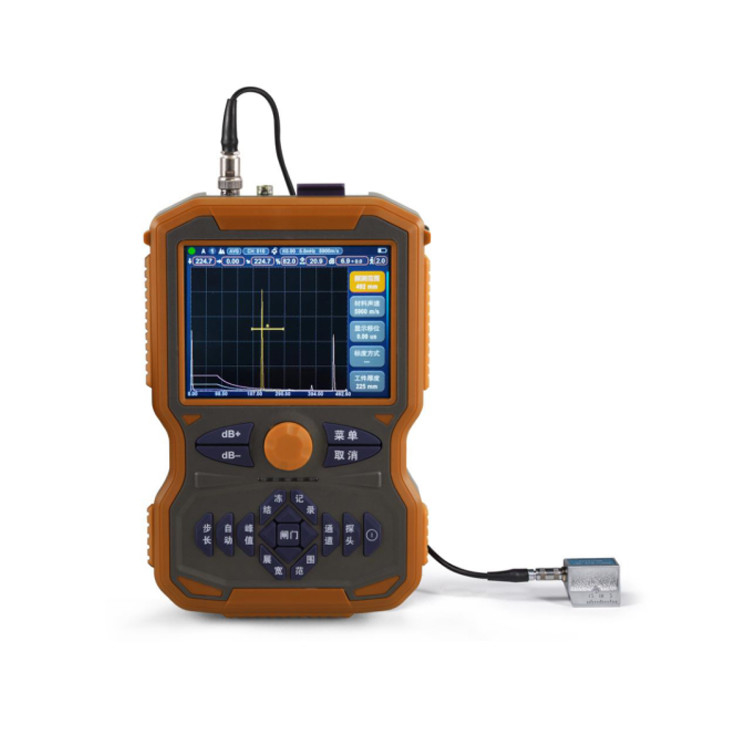

Large Image : Professional Intelligent Ultrasonic Flaw Detector Machine Highly Accurate

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2515

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Intelligent Ultrasonic Flaw Detector Flaw Detector Ultrasonic will be Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Intelligent Ultrasonic Flaw Detector Flaw Detector Ultrasonic	Model:	ZL-B981S
Detection Range:	10m (steel Center, Longitudinal Wave), Transmission 20 M (expandable)	Speed Of Sound Range:	(1000～15000)m/s
Repeat Emissivity:	30-1500Hz Adjustable	Dynamic Range:	≥38dB
Vertical Linearity Error:	≤2.5%	Horizontal Linearity Error:	≤0.2%
Digital Suppression:	(0-80)%, Does Not Affect The Linearity And Gain
Highlight:	Professional Ultrasonic Flaw Detector Machine , Intelligent Ultrasonic Flaw Detector Machine , Highly Accurate Ultrasonic Flaw Detector Machine

Intelligent Ultrasonic Flaw Detector Flaw Detector Ultrasonic

Summarize:

Can be imported into the customer's workpiece a full set of inspection process, will be able to open the machine can be detected;

● DAC, AVG, echo coding and other tools are complete;

● Repeat emissivity: 20-1500Hz accurately adjusted, high-speed sweeping, no leakage detection;

● High signal-to-noise ratio, very stable waveform, special anti-interference design, not afraid of harsh working conditions;

● 10-bit AD, 15M probes can be used, details are revealed, high sensitivity and resolution under small defects;

● High-definition and bright display, three-dimensional and beautiful interface, humanized operation style;

● Probe calibration, curve production and other operations throughout the prompts, dialog box interaction, no need to read the manual;

● IP65 protection standard, durable, waterproof and dustproof, damping bracket at any angle;

● Single power 8 hours continuous work, 2 hours fast charging, can be charged independently, two pieces to achieve uninterrupted work.

Technical Data:

Model	ZL-B981S
Detection Range	10m (steel center, longitudinal wave), transmission 20 m (expandable)
Speed of Sound Range	(1000～15000)m/s
Repeat Emissivity	30-1500Hz Adjustable
Dynamic Range	≥38dB
Vertical Linearity Error	≤2.5%
Horizontal Linearity Error	≤0.2%
Resolution	>40dB(5P14)
Sensitivity Margin	>65dB(Deep 200mm Ф2 flat bottom hole)
Digital Suppression	(0-80)%, does not affect the linearity and gain
Probe Type	Straight probe, oblique probe, double crystal probe, penetration probe, climbing wave probe, surface wave probe
Gate	Wave entry gate, wave loss gate; single gate, double gate
Alarm	Buzzer alarm, LED light alarm
Power Source	Direct current (DC) 9V
Battery Operating Time	10 hours
External Dimensions	240×153×38 (mm)
Weight	0.95Kkg
Ambient Temperature	(-10～50)℃
Relative Humidity	(20～95)%RH
Pulse Amplitude	100V, 200V, 300V, 400V, 500V graded selection, applicable to a wide range of probes
Pulse Width	Continuously adjustable in the range of (0.03～0.51)µs to match probes of different frequencies.
Probe Damping	50Ω, 100Ω, 150Ω, 400Ω selectable to meet the different working requirements of sensitivity and resolution.
Hardware Real-Time Sampling	High-resolution 10-bit AD converter, sampling speed 150MHz, waveform high fidelity
Detection Mode	Positive half-wave, negative half-wave, full-wave, RF detector
Filter Band	(0.1～15)MHz
Gate Reading	Single-gate and double-gate readout options; peak readout within the gate
Total Gain Amount	110 dB (with 0.1dB, 1dB, 2dB, 6dB step value)
Plug Sockets	BNC/LEMO optional

Note: The above indexes are measured at a probe frequency of 2.5MHz and a full-wave detection mode.
