Convenient Upright Metallographic Microscope Portable

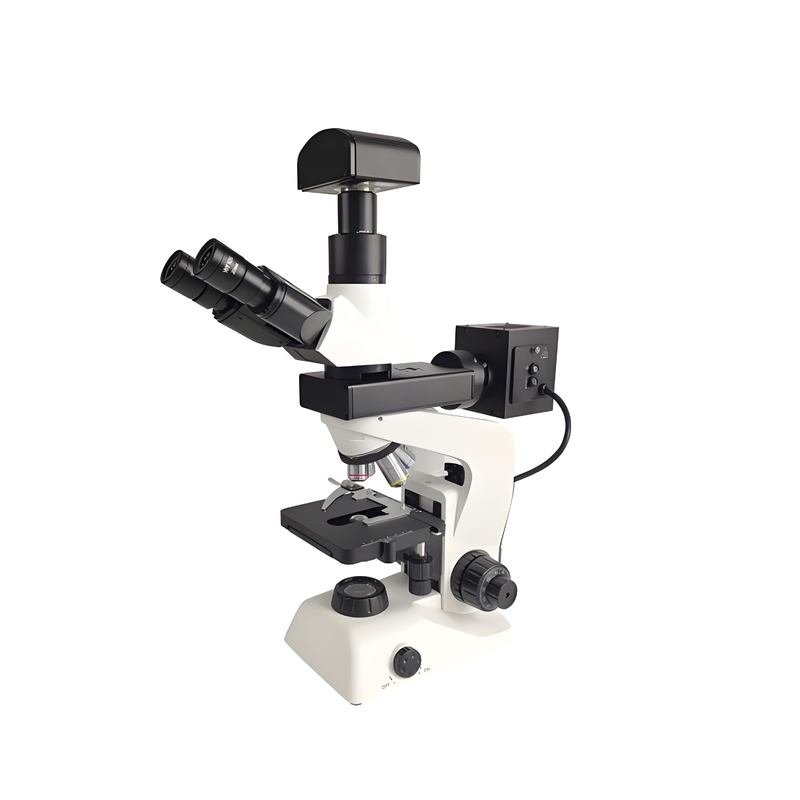

Large Image : Convenient Upright Metallographic Microscope Portable

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2515

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Upright Metallographic Microscope Portable Metallographic Microscope will be Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Upright Metallographic Microscope Portable Metallographic Microscope	Model:	ZL-2515
Eyepiece:	WF10×/20mm 10× Wide Field Of View High Eye Point Eyepiece Rotating Axis Three Eyepiece Observation Tube (70% Observation, 30% Video)	Observation Tube:	Hinge Binocular Tube, 30° Tilt, 360° Flip, Interpupillary Distance Adjustment 48mm～75mm (φ20 Field Of View), 48mm～76mm (φ22 Field Of View)
Objective Changer:	Four-hole Small Inclination Converter	Infinity Plan Metallographic Objectives:	5× NA=0.12 WD=21.5
Infinity Long-distance Plan Metallographic Objective:	10× NA=0.25 WD=16，20× NA=0.4 WD=9.3，50× NA=0.55 WD=6.3	Stage:	Table Size: 200*135mm, Moving Range: 76mmX50mm
Illumination Device:	5W LED/12Ⅴ30W Halogen Lamp
Highlight:	Upright Metallographic Microscope , Portable Metallographic Microscope , Convenient Metallographic Microscope

Convenient Upright Metallographic Microscope Portable

Upright Metallographic Microscope Portable Metallographic Microscope

Overview

The ZL-2515 is a modern upright metallographic microscope featuring bright field, polarized light, and epi-illumination observation modes. It offers a large field of view, high eye point, and exceptional resolution. The epi-illumination Kohler illumination system utilizes either a 5W LED or 12V 30W halogen lamp. Designed with ergonomic principles, this microscope combines aesthetic appeal with comfortable, easy operation. It can be equipped with digital industrial cameras, metallographic rating software, and other accessories to accommodate various observation requirements.

Main Functions

Coaxial coarse and fine adjustment with mechanical upper limit and tension adjustment device
Coarse adjustment stroke of 25mm with fine adjustment accuracy of 0.002mm
Composite double-layer mechanical mobile platform with low hand position coaxial adjustment
200mm * 135mm flat platform attached to mechanical platform for convenient sample placement
Falling Kohler illumination with anti-reflection structure to prevent interference from reflected light
Enhanced image clarity and improved field of view contrast

Application Fields

Applicable Occasions: Factory inspection and testing, laboratory research, teaching experimental classrooms

Application Range: Metals, minerals, ceramics, electronics, and related materials

Specifications

Model	ZL-2515
Eyepiece	WF10/20mm 10 wide field of view high eye point eyepiece rotating axis three eyepiece observation tube (70% observation, 30% video)
Observation Tube	Hinge binocular tube, 30° tilt, 360° flip, interpupillary distance adjustment 48mm～75mm (φ20 field of view), 48mm～76mm (φ22 field of view)
Objective Changer	Four-hole small inclination converter
Objective	Infinity Plan Metallographic Objectives: 5* NA=0.12 WD=21.5, Infinity long-distance plan metallographic objective: 10* NA=0.25 WD=16, 20* NA=0.4 WD=9.3, 50* NA=0.55 WD=6.3
Coarse and Fine Focusing Device	Coaxial coarse and fine adjustment, with mechanical upper limit and tension adjustment device, coarse adjustment stroke 25mm, fine adjustment accuracy 0.002mm
Stage	Table size: 200135mm, moving range: 76mm50mm
Illumination Device	5W LED/12V 30W halogen lamp
Camera Interface	0.5* Camera Tube
Working Power Supply	AC220V±5 50HZ
