U/V Notch Profile Projector With 200×200mm Projection Screen And Longitudinal Horizontal Lifting Workbench

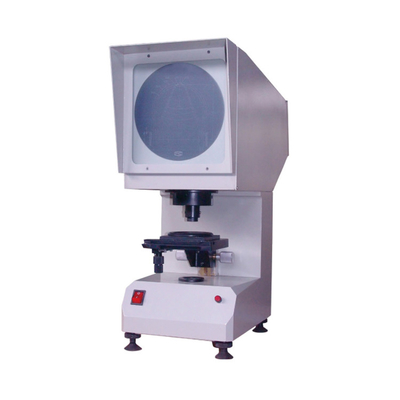

Large Image : U/V Notch Profile Projector With 200×200mm Projection Screen And Longitudinal Horizontal Lifting Workbench

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2123

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Sensing Projector Impact Specimen U/V Notch Profile Projector Measuring Specimen Projector is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Sensing Projector Impact Specimen U/V Notch Profile Projector Measuring Specimen Projector	Model:	ZL-2123
Projection Screen Diameter:	200×200mm	Square Workbench Size:	110×125mm
Workbench Itinerary Longitudinal, Horizontal, Lifting:	±10mm,±10mm,±12mm	Workbench Rotation Range:	0～360°
Dimension:	515×224×603mm	Weight:	20kg
Highlight:	U/V Notch Profile Projector , 200×200mm Profile Projector , Horizontal Lifting Profile Projector

U/V Notch Profile Projector With 200*200mm Projection Screen And Longitudinal Horizontal Lifting Workbench

Sensing Projector Impact Specimen U/V Notch Profile Projector Measuring Specimen Projector

Performance Overview

The ZL-2123 impact sample notch projector is a specialized optical instrument designed and developed to meet domestic user requirements and comply with GB/T229-2007 "Metal Charpy Pendulum Impact Test Method" standards. This instrument utilizes optical projection to magnify and project the contour of measured impact sample V or U-shaped notches onto the projection screen, enabling comparison with standard sample diagrams to determine notch qualification. Key advantages include simple operation, intuitive inspection, and high efficiency.

Technical Specifications

Specification	Details
Projection Screen Diameter	200*200mm
Workbench Size	Square: 110*125mm, Diameter: 90mm, Glass Diameter: 70mm
Workbench Travel Range	Longitudinal: ±10mm, Horizontal: ±10mm, Lifting: ±12mm
Workbench Rotation Range	0～360°
Instrument Magnification	50X (Objective: 2.5X, Projection Objective: 20X)
Light Source	Halogen Tungsten Lamp: 12V 100W
Power Supply	220V 50Hz
Dimensions	515224603mm
Weight	20kg

Standard Equipment Configuration

Projector main unit - one unit
Base adjustment knobs - four pieces
Power cable - one piece
Halogen lamps - two pieces
Flat glass plate - one piece
