ZL-9055 Precise Paper Cup Stiffness Tester Accurate Test Results At 5-300±2.5mm/min Speed

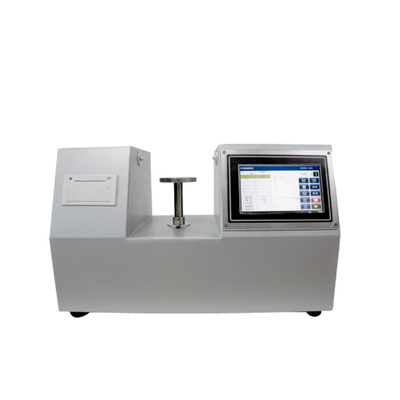

Large Image : ZL-9055 Precise Paper Cup Stiffness Tester Accurate Test Results At 5-300±2.5mm/min Speed

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9055

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Paper Cup Stiffness Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Paper Cup Stiffness Tester	Model:	ZL-9055
Measure Range:	0-20N	Paper Cup Diameter:	20-150mm
Resolution:	Stress Resolution Is Greater Than 0.01N	Measuring Accuracy:	Measurement Accuracy Is Greater Than ±1%
Test Speed:	5-300±2.5mm/min	Deformation:	9.5±0.5mm
The Spherical Size Of The Measuring Head:	5mm	Axis Line Deviation:	Less Than 0.2mm
Highlight:	Paper Cup Stiffness Tester , Accurate Paper Cup Stiffness Tester , Precise Paper Cup Stiffness Tester

ZL-9055 Precise Paper Cup Stiffness Tester

Accurate test results at 5-300±2.5mm/min speed for reliable paper cup quality assessment.

Product Overview

Paper Cup Stiffness Tester

Application

The paper cup body stiffness measuring instrument is a specialized device designed specifically for detecting the strength of paper cup bodies. It primarily controls the physical quality of paper cups through comprehensive testing. This equipment is suitable for paper cup production enterprises, quality supervision bureaus, university research structures, and other professional units.

Standard Compliance

GB/T 27590, QB/T 2294－1997, JJG157－1995, QB/T 5023-2017

Technical Parameters

Measure Range	0-20N
Paper Cup Diameter	20-150mm
Resolution	Stress resolution greater than 0.01N
Measuring Accuracy	Measurement accuracy greater than ±1%
Test Speed	5-300±2.5mm/min
Deformation	9.5±0.5mm
Spherical Size of Measuring Head	5mm
Axis Line Deviation	Less than 0.2mm
Measurable Height of Paper Cup	15≤L≤120mm
Power Supply	220V 50Hz
Dimensions	550280350mm
Weight	Approximately 44kg
Working Environment	Temperature (20±15°C), Humidity <85%
Display & Output	Touch screen displays curve display and print capability

Purpose and Characteristics

The instrument's contact advances and retreats driven by a motor, while the resistance force of the cup body is measured by a precision force sensor. All actions, data collection, measurements, and calculations are controlled, processed, and displayed on an LCD screen, with comprehensive test reports printed by an integrated printer. This automated electronic testing instrument offers exceptional convenience with a wide testing range suitable for measuring the stiffness of various capacity cups. It represents an ideal solution for testing paper cup body stiffness in quality control applications.
