Manual Control Packaging Testing Equipment ISO 5267-1 GB/T3332-1982 0-100 ° SR Beating And Freeness Tester

Large Image : Manual Control Packaging Testing Equipment ISO 5267-1 GB/T3332-1982 0-100 ° SR Beating And Freeness Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9039

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Beating and Freeness Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	Beating And Freeness Tester	Measuring Range:	0-100 ° SR
Dividing Value:	1 ° SR	Testing Distilled Water Temperature:	20 + / - 0.5 ° C
Testing Distilled Water Volume:	1000 Ml	Drainage Time:	149±1s
Installation Dimensions:	460 * 250 Mm	Accessories:	Including 2 Measuring Cylinder 1 Slice Seal Copper Network One
Highlight:	paper test equipment , carton bursting tester

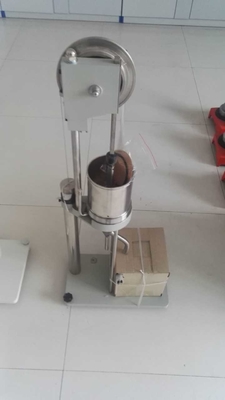

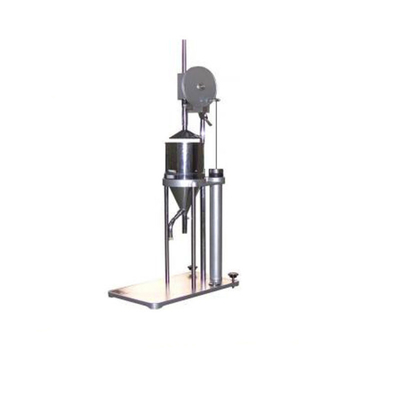

Manual Control Packaging Testing Equipment - ISO 5267-1 GB/T3332-1982 0-100° SR Beating and Freeness Tester

Product Overview

This precision instrument is designed for determining pulp slurry freeness up to 100° SR. It enables optimal raw material utilization by identifying the ideal stopping point during the beating process in production. In research applications, it serves as a reliable tool for analyzing fiber state characteristics. The manual control system ensures straightforward operation and consistent performance.

Compliance Standards

ISO 5267-1 | GB/T3332-1982

Technical Specifications

Parameter	Specification
Measuring Range	0-100° SR
Dividing Value	1° SR
Testing Distilled Water Temperature	20 ± 0.5°C
Testing Distilled Water Volume	1000 ml
Drainage Time	149 ± 1s
Installation Dimensions	460 * 250 mm

Standard Accessories

2 Measuring Cylinders
1 Slice Seal Copper Network
