ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester

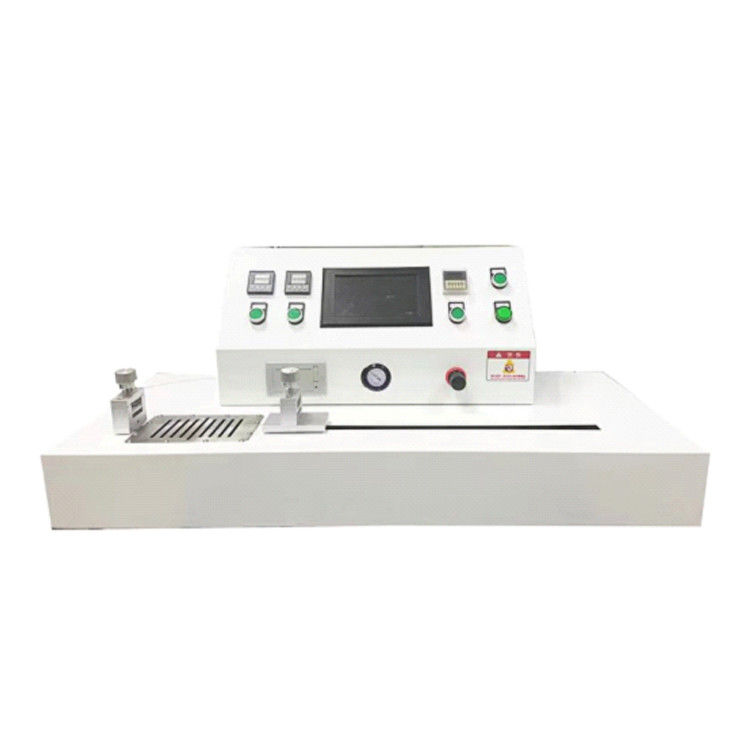

Large Image : ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9054

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester	Model:	ZL-9054
Force Measurement Resolution:	0.001N	Force Measurement Accuracy:	0.2% Or More
Sampling Frequency:	200Hz	LCD Display Life:	About 100,000 Hours
Touch Screen Effective Touch Times:	About 50,000 Times	Loading Speed:	0.1-1400cm/min
Temperature Control Accuracy:	±0.5℃	Heat Sealing Pressure Resolution:	0.1kPa
Highlight:	ASTM F1921 hot tack testing , ASTM F2029 hot tack testing , Packaging Material hot tack testing

ASTM F1921 ASTM F2029 Packaging Material Hot Tack Tester Heat Seal Tester

The packaging material hot tack and heat seal performance tester is developed and manufactured according to ASTM F1921, ASTM F2029 and other standards. This advanced testing equipment performs multiple test types including hot tack testing, heat seal testing, heat seal strength testing, and tensile testing.

Traditional heat seal testing involves placing sealed samples on a tensile machine after temperature drops to room temperature, resulting in higher force values. However, many manufacturers require measurement of sealing force at specific time intervals after sealing, before temperature reaches room temperature. This critical testing method, known as hot tack testing, simulates the actual time intervals between production line processes.

Key Product Features

Steplessly adjustable loading speed from 0.1 to 1400 cm/min, precisely meeting ASTM F1921 Method B requirements for hot-adhesive peeling speed of 1200 cm/min
Dual heating mode with digital PID temperature control for more accurate and faster temperature regulation
High-precision digital pressure sensor with digital display for intuitive and accurate heat sealing air pressure monitoring
Digital pressure controller for precise adjustment of heat sealing air pressure
Comprehensive test data analysis including average values, maximum values, minimum values, and standard deviation calculations for enhanced testing efficiency

Technical Specifications

Force Measurement Resolution	0.001N
Force Measurement Accuracy	0.2% or more
Sampling Frequency	200Hz
LCD Display Life	Approximately 100,000 hours
Touch Screen Effective Touch Times	Approximately 50,000 times
Loading Speed	0.1-1400 cm/min
Heat Sealing Time	10-99999 ms
Heat Sealing Temperature	Room temperature - 200℃
Temperature Control Accuracy	±0.5℃
Heat Sealing Pressure Range	100-500 kPa
Heat Sealing Pressure Resolution	0.1 kPa
