ISO 12647 Flexo Proofing Machine With Plate Thickness Of 1.7mm And Stamping Pressure Scale

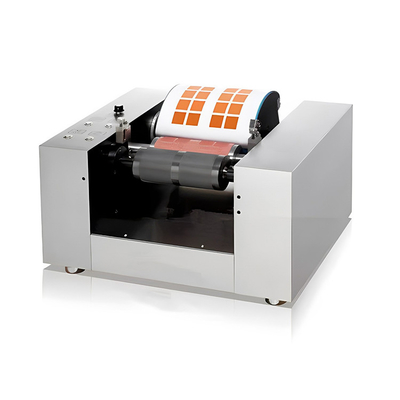

Large Image : ISO 12647 Flexo Proofing Machine With Plate Thickness Of 1.7mm And Stamping Pressure Scale

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-9051C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ISO 12647 Flexo Proofing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	ISO 12647 Flexo Proofing Machine	Model:	ZL-9051C
Applicable Targets:	Monochrome Proofing (e.g. Colour Matching, Testing, Etc.)	Inking Method:	The Dropper Dripped Ink
Thickness Of Proofing Material:	0.01-2mm (bendable Material)	Plate Thickness:	1.7mm Thick Flexographic Back Glue 0.3mm
Plate Roller And Mesh Roller Pressure:	Can Be Adjusted By 2mm, There Is A Scale To Show The Pressure	Plate Roller And Stamping Pressure:	Can Be Adjusted By 2mm, There Is A Scale To Show The Pressure
Highlight:	ISO 12647 Flexo Proofing Machine , 1.7mm Flexo Proofing Machine , Stamping Pressure Scale Flexo Proofing Machine

ISO 12647 Flexo Proofing Machine With Plate Thickness Of 1.7mm And Stamping Pressure Scale

ISO 12647 Flexo Proofing Machine

Technical Specifications

Applicable Targets	Monochrome proofing (e.g. colour matching, testing, etc.)
Power Supply	220V, 50/60Hz
Power	500W
Inking Method	The dropper dripped ink
Thickness of Proofing Material	0.01-2mm (bendable material)
Size of Proofing Material	120x170mm
Printing Area	100x150mm
Plate Area	120x170mm
Plate Thickness	1.7mm thick flexographic back glue 0.3mm
Plate Roller and Mesh Roller Pressure	Can be adjusted by 2mm, with scale to show pressure
Plate Roller and Stamping Pressure	Can be adjusted by 2mm, with scale to show pressure
Adjustable Printing Speed	10-80 m/min
Ceramic Mesh Roller Specification	φ70x200mm
Ceramic Mesh Roll Line Number	Standard one (can be customized 70-1200 lines)
Applicable Inks	Flexographic waterborne ink, UV ink, lithography, letterpress ordinary or UV ink
Applicable Proofing Materials	Paper, plastic film, non-woven fabric, napkins, gold and silver cardstock, etc.
Dimensions (L x W x H)	450x810x240mm
Net Weight	110KG
UV Curing Device	Optional - The instrument can be coated, solid color, dot pattern proofing

Unique Instrument Features

After the ceramic roller rotates the ink evenly, the printing material and plate cylinder start to rotate one week to complete the proofing work. The ceramic roller, printing material cylinder and plate cylinder run synchronously to ensure the proofing quality.
The four structures of scraper, ceramic roller, plate roller and printing material roller can adjust the pressure separately and flexibly.
Mesh roll, scraper disassembly is simple and convenient.
With large drum structure, it is easy to install printing material, install printing plate and clean printing plate.
