ASTM D445 Kinematic Viscometer Ubbelohde Viscometer Dynamic Viscosity Meter

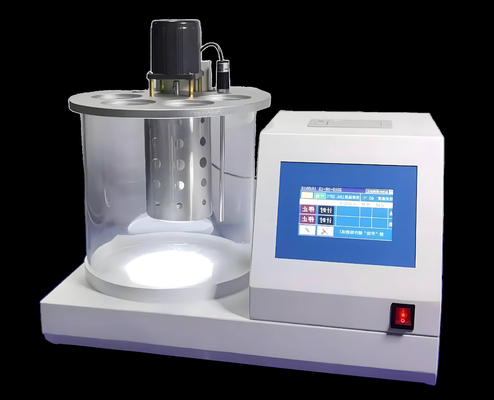

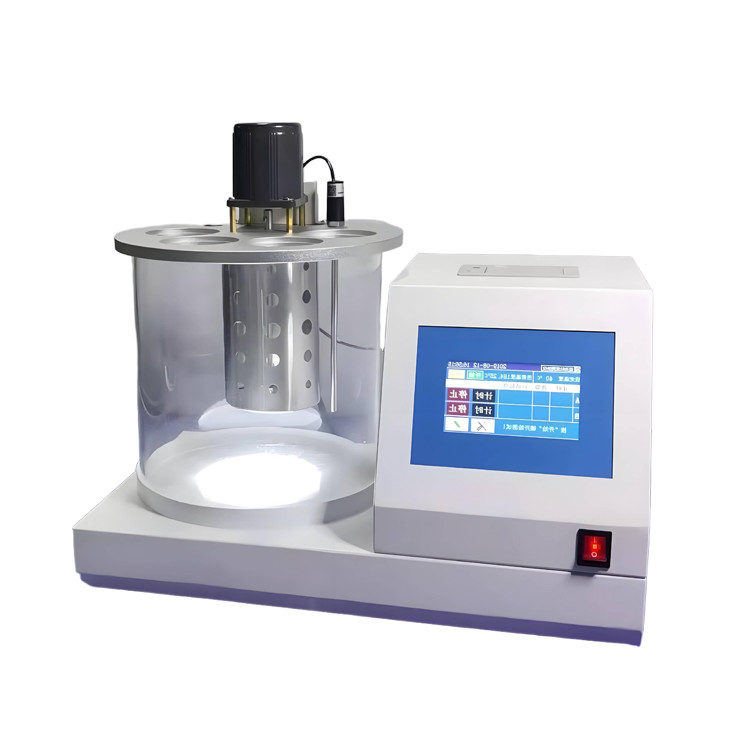

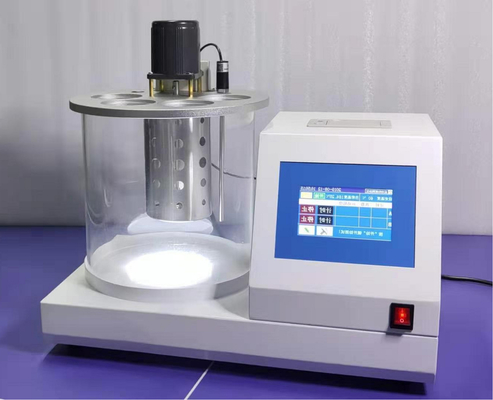

Large Image : ASTM D445 Kinematic Viscometer Ubbelohde Viscometer Dynamic Viscosity Meter

Product Details:

Place of Origin:	China
Brand Name:	Kinematic Viscometer Ubbelohde Viscometer
Certification:	CE,ISO
Model Number:	ZL-1309

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ASTM D445 Kinematic Viscometer Ubbelohde Viscometer Dynamic Viscosity Meter is packaged within wooden case.
Delivery Time:	7-10 days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Name:	Kinematic Viscometer Ubbelohde Viscometer Dynamic Viscosity Meter	Model:	ZL-1309
Standard:	ASTM D445, IP71	Temperature Range:	Room Temperature To 200℃(Adjustable)
Measurement Range:	0.5 To 20,000 Mm ² /s	Temperature Control Accuracy:	±0.1℃
Timing Accuracy:	6.±0.1S	Display Timer Range:	0.1 Seconds -999.9 Seconds
Highlight:	ASTM D445 Kinematic Viscometer , Ubbelohde Viscometer , Dynamic Viscosity Meter

ASTM D445 Kinematic Viscometer Ubbelohde Viscometer Dynamic Viscosity Meter

This precision instrument complies with standards including GB265-88 Method for Determining Kinematic Viscosity of Petroleum Products and ASTM D445. It is widely utilized across electrical oil, power generation, chemical engineering, railway, and scientific research industries.

Key Features

Advanced single-chip microcomputer intelligent temperature control with 5-inch LCD color touch screen for real-time monitoring of temperature, time, and parameters
Unique modular technology enables measurement across both low and high viscosity ranges
Automatic calculation of kinematic viscosity values and average test results with automatic printing and storage capabilities
Constant temperature bathtub features organic glass insulation cover for uniform temperature distribution and excellent temperature control
Stainless steel construction for heaters and components ensures corrosion resistance and durability
Ring-shaped fluorescent lamp lighting for easy observation during testing
Flexible testing configuration allowing 1 to 6 tests with parallel testing capability for multiple oil samples
Three-point vertical capillary meter card design for flexible operation and reliable clamping

Technical Specifications

Standard Compliance	GB265, ASTM D445, IP71
Display Mode	5-inch LCD touch screen
Temperature Range	Room temperature to 200℃ (Adjustable)
Kinematic Viscosity Range	0.5 to 20,000 mm²/s
Temperature Control Accuracy	±0.1℃
Timing Accuracy	±0.1S
Display Timer Range	0.1 seconds - 999.9 seconds
Thermostatic Water Bath	250*250mm double-layer
Printer	Low-energy thermal printer, paper width 56mm
Temperature Sensor	Imported precision platinum resistance
Stirring Rate	1350 rpm/min
Power	1.2KW
Sample Capacity	4 devices
Operating Environment	Ambient temperature 15-35℃, ambient humidity less than 85%
Voltage	220V, 50HZ
