Product Details:
Payment & Shipping Terms:
|
| Product Name: | Computer Servo Type Tensile Test Using Universal Testing Machine Price | Maximum Load: | 200KN |
|---|---|---|---|
| Model: | ZL-8006C | Accuracy Class: | Level 0.5 |
| Effective Force Range: | 0.4%～100% (Level 0.5) | Effective Stretching Space: | 400, 500, 600mm |
| Test Speed Range: | 0.01～500mm/min | Host Size: | 1040×590×2000mm(L*W*H) |
| High Light: | Computer Servo Tensile Testing Machine,Universal Tensile Testing Machine |
||

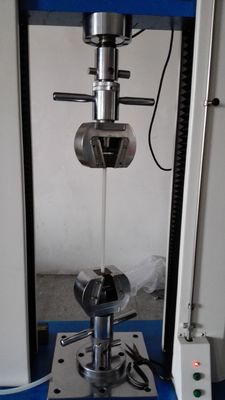

ZL-8006C Computer Servo Universal Material Testing Machine is a new type of material testing machine combining electronic technology and mechanical transmission. It has wide and accurate loading speed and force measuring range, high precision and sensitivity for load and displacement measurement and control, and can also carry out automatic control test of equal speed loading and equal speed displacement. With simple and convenient operation, it is especially suitable to be a testing instrument for controlling product quality on production lines. This series of models is mainly suitable for testing non-metallic and metallic materials with a test load of less than 50KN.
The Main Function:
It is mainly suitable for testing metal and non-metal materials, such as rubber, plastic, wire and cable, fiber optic cable, seat belt, safety belt, leather belt composite material, plastic profile, waterproof coil, steel pipe, copper material, profile, spring steel, Bearing steel, stainless steel (and other high-hardness steel), castings, steel plates, steel strips, and non-ferrous metal wires have tension, compression, bending, shearing, peeling, tearing, and two-point extensions in high-temperature environments (need to be ordered separately) Extensometer) and other tests.
Main Feature:
Imported photoelectric encoder is used for displacement measurement, the controller adopts embedded single-chip microcomputer structure, built-in powerful measurement and control software, which integrates measurement, control, calculation and storage functions. It has the function of automatically calculating stress, elongation (extensometer needs to be added), tensile strength and elastic modulus, and automatically counts the results; automatically records the force value or elongation of the maximum point, breaking point, and designated point; uses a computer for testing The process and test curves are dynamically displayed, and data processing is performed. After the test, the graph processing module can be used to zoom in on the curve for data re-analysis and editing, and the report can be printed. The product performance has reached the international advanced level.
Corresponding Standard :
ISO6892-1-2009, ISO10113-2020, ISO9513-2012, ISO6892-1-2009, ISO898-1-2013,
ASTME8(E8M)-2013a, ASTMA370
|
Deformation Measurement Accuracy |
Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 1040×590×2000mm(L*W*H) |
| power System | Taiwan Delta AC servo motor + drive + high precision ball screw |
| power Supply | 220V, 50HZ, |
| Power | 0.75KW (according to different force value requirements, different power motors are standard) |
| Host Weight | 500 KG(approximately) |
