Mechanical Tensile Testing Machine 5T Universal Testing Machine With Computer Servo Type

Large Image : Mechanical Tensile Testing Machine 5T Universal Testing Machine With Computer Servo Type

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8006B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	5T Universal Testing Machine With Computer Servo Type Mechanical Tensile Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	5T Universal Testing Machine With Computer Servo Type Mechanical Tensile Testing Machine	Maximum Test Force:	20 KN
Accuracy Level:	0.5 Level	Test Force Measurement Range:	2% To 100% FS (maximum Load)
Deformation Accuracy:	Better Than ±0.5%	Displacement Resolution:	0.03μm
Stress Control Rate Range:	0.005～5%FS/s	Range Of Strain Control Rate:	0.005～5%FS/s
Main Unit Size:	650×540×1750mm
Highlight:	Mechanical Tensile Testing Machine , Tensile Testing Machine Computer Servo Type

Computer Servo Universal Material Testing Machine

The ZL-8006B Computer Servo Universal Material Testing Machine is a precision instrument designed for comprehensive static performance testing of metals and non-metals, including composite materials. This 5T capacity universal testing machine features advanced computer servo control for accurate tensile, compression, bending, shearing, peeling, tearing, load retention, and reciprocation testing.

Equipment Specifications

Model: ZL-8006B

Maximum Test Force: 20 KN (5T capacity)

Accuracy Level: 0.5 Level

Testing Capabilities

This universal testing machine performs comprehensive analysis of material mechanical properties including:

Tension, compression, and bending tests
Shearing, peeling, and tearing analysis
Load retention and reciprocation testing
Automatic calculation of ReH, ReL, Rp0.2, Fm, Rt0.5, Rt0.6, Rt0.65, Rt0.7, Rm, E parameters

Compliance Standards

Designed to meet international testing standards including:

ISO 6892-1-2009, ISO 10113-2020, ISO 9513-2012, ISO 898-1-2013
ASTM E8(E8M)-2013a, ASTM A370
GB/T228, GB/T7314, GB/T14452
Customizable for GB, ISO, DIN, ASTM, JIS international standards

Technical Parameters

Parameter Category	Specifications
Measurement Parameters	Test Force Measurement Range: 2% to 100% FS Test Force Indication Error: within ±0.5% Test Force Resolution: ±1/300000 Deformation Accuracy: better than ±0.5% Displacement Resolution: 0.03μm
Control Parameters	Stress Control Rate: 0.005～5%FS/s Strain Control Rate: 0.005～5%FS/s Displacement Control Rate: 0.001～500mm/min
Host Parameters	Test Width: 450mm Test Space: 700mm Main Unit Size: 6505401750mm

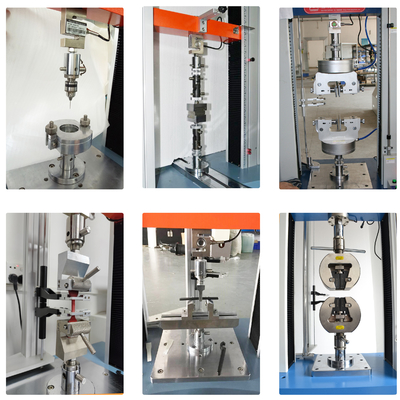

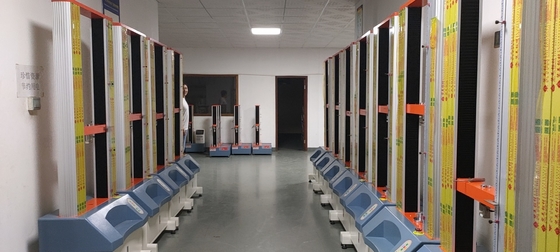

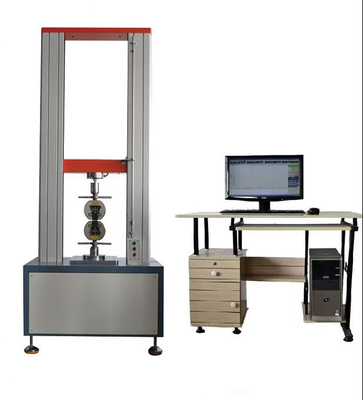

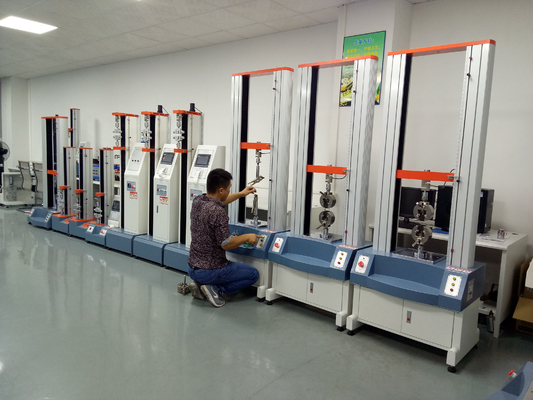

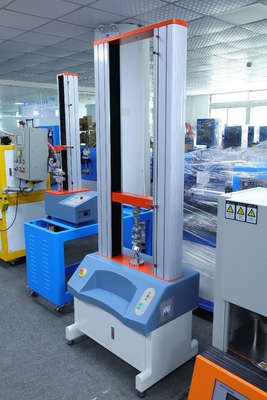

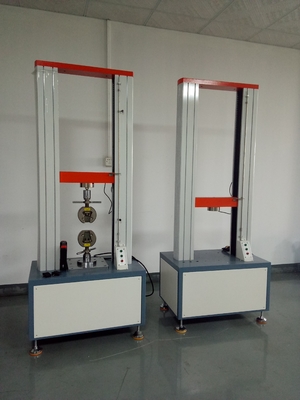

Machine Images
