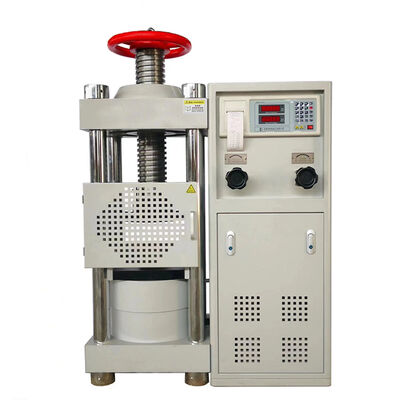

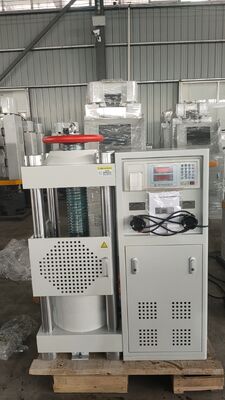

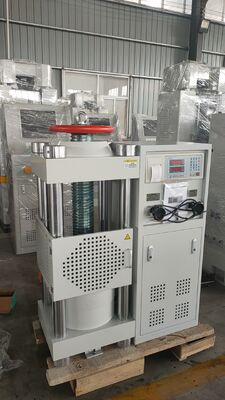

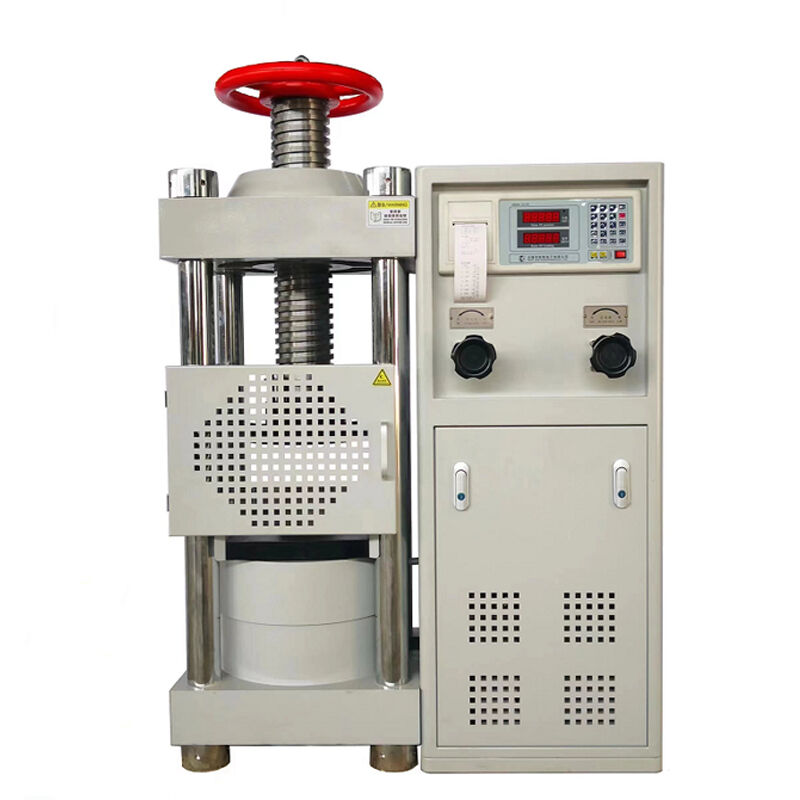

200t 300t Manual Concrete Compression Testing Machine Lab Compressive Testing Equipment

Large Image : 200t 300t Manual Concrete Compression Testing Machine Lab Compressive Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8015

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1500-2500
Packaging Details:	Export wooden crate packaging
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	150

Contact Now

Detailed Product Description

Maximum Test Force (KN):	2000/3000	Test Force Measurement Range (KN):	100-1000
Relative Error Of The Test Force Value:	≤ ±1% Of The Displayed Value	Resolution Of Test Force:	0.1KN
Rated Pressure Of Hydraulic Pump:	40MPa	Upper And Lower Platen Size:	250x220
Maximum Distance Between Upper And Lower Platens:	290mm	Piston Diameter:	φ250mm

200t 300t Manual Concrete Compression Testing Machine Lab Compressive Testing Equipment

Functional Use

This tester is primarily used for compressive and flexural strength testing of construction materials including brick, stone, cement, concrete, ceramics, coal mine pellets, and other materials. The machine utilizes hydraulic loading with electronic force measurement, featuring digital load display, load rate display, maximum load value retention, overload protection, and power-off data retention functions. Complies with GB/T 50081 standard.

Mechanical Components

Space Adjustment System

Compression space adjustment is achieved through handwheel rotation for precise control.

Hydraulic System

Oil is drawn from the tank through a filtration net into the oil pump, then delivered to the oil delivery valve via the pump's delivery pipe. When the delivery handwheel is closed, oil pressure pushes the piston while excess oil returns to the tank through the return pipe.

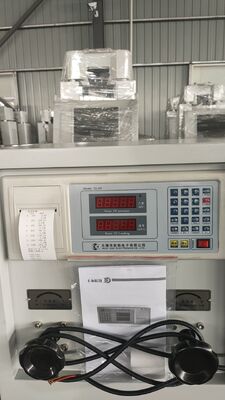

Control System

This machine employs hydraulic loading with electronic force measurement, featuring digital load display, loading rate display, maximum load value retention, overload protection, and power-off data retention capabilities.

Safety Protection Device

When test force exceeds 3% of maximum test force capacity, overload protection activates and the oil pump motor automatically shuts down.

Technical Specifications

Specification	Value
Maximum Test Force (KN)	2000/3000
Test Force Measurement Range (KN)	100-1000
Relative Error of Test Force Value	≤ ±1% of displayed value
Resolution of Test Force	0.1KN
Rated Pressure of Hydraulic Pump	40MPa
Upper and Lower Platen Size	250x220
Maximum Distance Between Upper and Lower Platens	290mm
Piston Diameter	φ250mm
Piston Stroke	50mm
Motor Power	Three-phase 0.75 KW
Dimension (mm)	Approximately 8005001200
Weight	800KG
