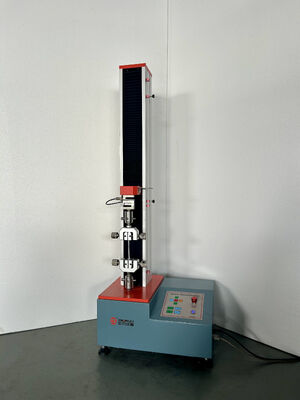

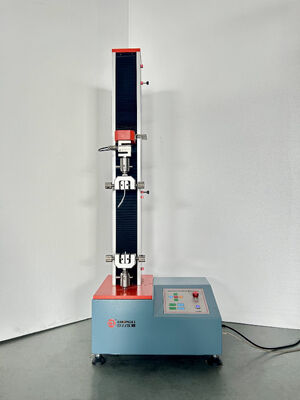

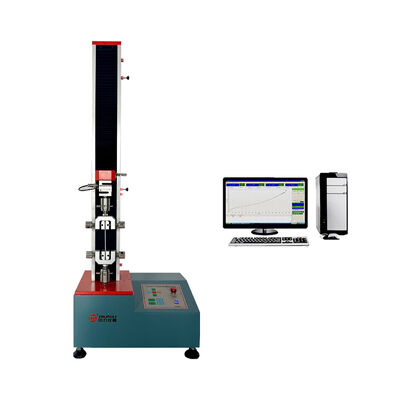

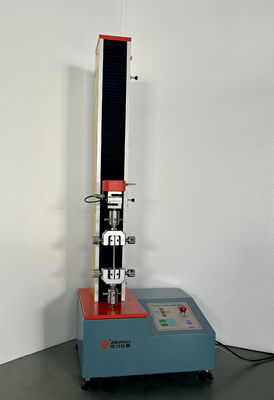

ASTM D3787 ASTM D6796 Fabric CRT Bursting Strength Testing Machine Tensile Machine Electronic Universal Testing Machine

Large Image : ASTM D3787 ASTM D6796 Fabric CRT Bursting Strength Testing Machine Tensile Machine Electronic Universal Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8004B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$2000-2800
Packaging Details:	Export wooden crate packaging
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100 sets / month

Contact Now

Detailed Product Description

Model:	ZL-8004B	Capacity Selection:	2, 5, 10, 20, 50, 100, 200kg (optional,can Be Customized)
Load Measurement Accuracy:	Class 0.5	Effective Force Measurement Range:	0.4% To 100%
Force Measurement Accuracy:	Within ±0.5% Of The Indicated Value	Effective Test Width:	150mm
Effective Stretching Space:	500mm

ASTM D3787 ASTM D6796 Fabric CRT Bursting Strength Testing Machine Tensile Machine Electronic Universal Testing Machine

Equipment Overview

ZL-8004B Electronic Computerized Tensile Testing Machine is a simple tensile testing machine with straightforward structure and convenient operation, designed for workbench testing. It features an electronic control system that regulates speed motor rotation through a governor, driving the T-shaped screw to move the load sensor up and down via a speed reduction mechanism, completing tensile or compression tests. Force values are output by the sensor with real-time feedback display and test speed monitoring.

Easy and convenient to operate, this instrument is particularly suitable for quality control testing on production lines. This series is primarily designed for testing non-metallic and metallic materials with test loads less than 2000N.

Main Features

Excellent appearance design with aluminum profiles and electrostatic spray patterns
Digital LCD display of force values, distinguishing tension or pressure with clear, readable interface
Three measurement units: N-Kgf-Lbf, optional and automatically interchangeable
LCD display with backlight for use in low-light environments
Single measurement capability reading peak values in both tension and compression directions with automatic/manual reset
Travel limit and overload stop functions
Desktop single-column structure for easy operation while seated

Compliance Standards

ASTM D1004
ASTM D882
ASTM D638
ASTM D1693
ASTM D3330

Technical Parameters

Parameter	Specification
Model	ZL-8004B
Capacity Selection	2, 5, 10, 20, 50, 100, 200kg (optional, customizable)
Load Measurement Accuracy	Class 0.5
Effective Force Measurement Range	0.4% to 100%
Force Measurement Accuracy	Within ±0.5% of indicated value
Tester Resolution	Maximum load 1/±300,000 codes, no range switching, constant resolution throughout entire range
Load Sensor	Standard configuration tension and compression sensor (maximum load)
Effective Test Width	150mm
Effective Stretching Space	500mm
Testing Speed	0-500mm/min (customizable according to requirements)
Displacement Measurement Accuracy	Within ±0.5% of indicated value

Tag:

Contact Person: Ms. Fiona Zhong

Tel: +86 135 3248 7540

Fax: 86-0769-3365-7986
