ASTM D3039 ASTM D3039M ASTM D2256 Single Yarn Strength Tester Tensile Testing Machine Desktop Single Arm Tensile Testing Machine

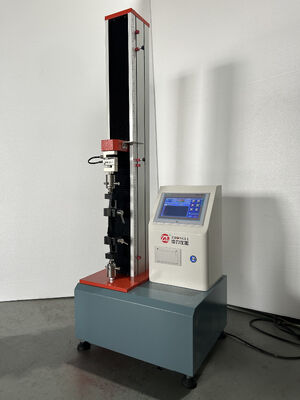

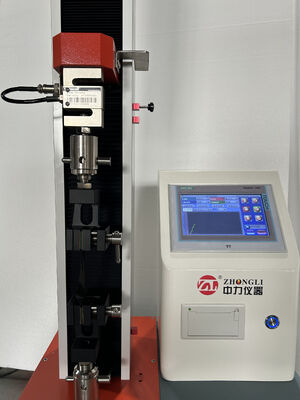

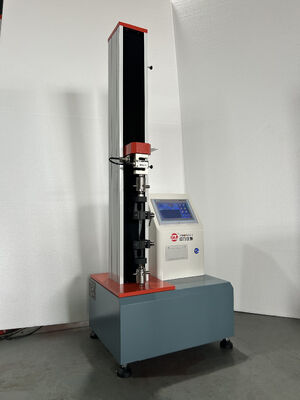

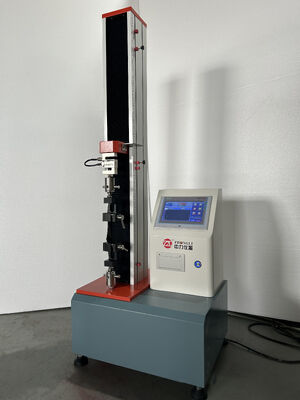

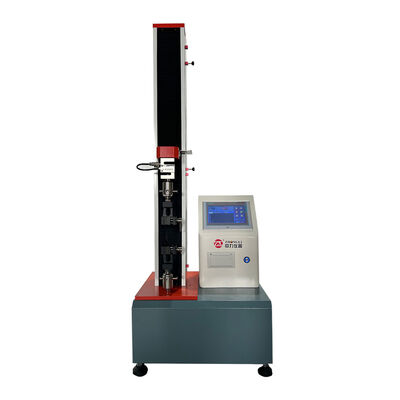

Large Image : ASTM D3039 ASTM D3039M ASTM D2256 Single Yarn Strength Tester Tensile Testing Machine Desktop Single Arm Tensile Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-8004A

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	$1500-2500
Packaging Details:	Export wooden crate packaging
Delivery Time:	5-8 work days
Payment Terms:	Western Union,T/T,D/P,D/A,L/C
Supply Ability:	100 sets / month

Contact Now

Detailed Product Description

Model:	ZL-8004A	Capacity Selection:	2, 5, 10, 20, 50, 100, 200kg (optional,can Be Customized)
Force Measurement Accuracy:	Within ±0.5% Of Indicated Value	Unit Switching:	Kg, Lb, N
Data Sampling Frequency:	200 Times/sec	Effective Test Width:	150mm
Effective Stretching Space:	500mm (excluding Fixtures)

ASTM D3039 ASTM D3039M ASTM D2256 Single Yarn Strength Tester Tensile Testing Machine Desktop Single Arm Tensile Testing Machine

Equipment Overview

The ZL-8004A Electronic Tensile Testing Machine is a simple tensile testing machine with straightforward structure and convenient operation, designed for workbench placement. It features an electronic control system that regulates the speed control motor via a governor, which then drives the T-shaped screw through a speed reduction mechanism to move the load sensor up and down, completing tensile or compression tests on samples.

Force values are output by the sensor with real-time feedback display, and test speeds are shown in real-time. This equipment is easy to operate and particularly suitable as a quality control testing instrument for production lines. The series is primarily designed for testing non-metallic and metallic materials with test loads less than 2000N.

Main Functions

This machine is suitable for various testing applications including:

Stretching, compressing, bending, and shearing tests
Peeling tests (90 degrees and 180 degrees)
Tearing and two-point extension tests (requires additional extensometer)
Quality determination for products in textile, rubber, plastic, synthetic leather, tape, adhesive products, plastic film, composites, electronics, and metal industries

Technical Parameters

Parameter	Specification
Model	ZL-8004A
Capacity Selection	2, 5, 10, 20, 50, 100, 200kg (optional, customizable)
Force Measurement Accuracy	Within ±0.5% of indicated value
Display Method	Touchscreen display, switchable between Chinese and English, membrane touch keys
Unit Switching	Kg, lb, N
Data Sampling Frequency	200 times/sec
Testing Machine Resolution	Maximum load 1/±25,000 codes, no internal/external range switching, full-range resolution remains unchanged
Load Sensor	Tension and compression sensor
Effective Test Width	150mm
Effective Stretching Space	500mm (excluding fixtures)
Test Speed Range	0.01-500mm/min, stepless speed adjustment and 5 fixed speeds (customizable)
Displacement Measurement Accuracy	Within ±0.5% of indicated value
