Product Details:
Payment & Shipping Terms:
|

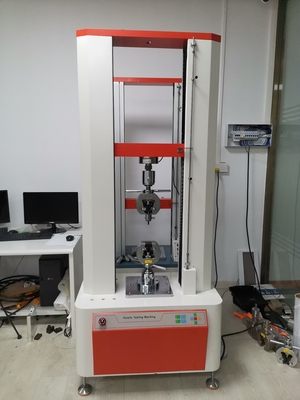

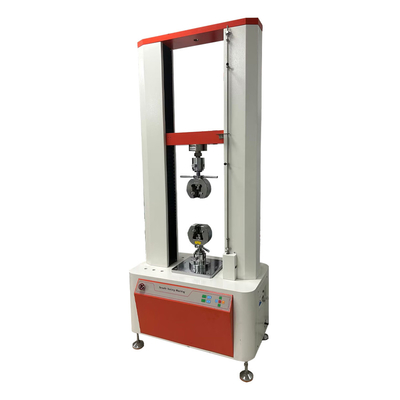

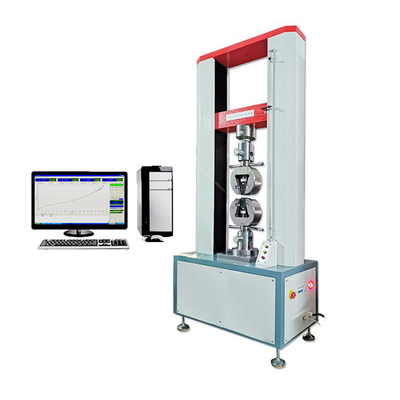

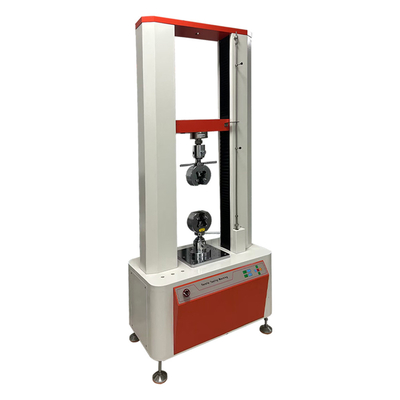

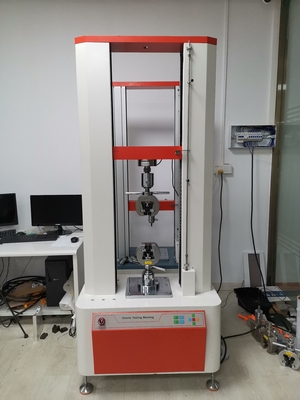

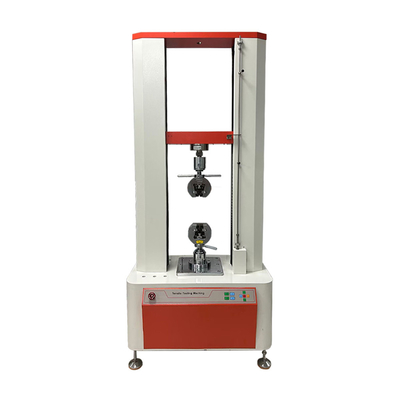

| Product Name: | Servo Control Universal Testing Machine Servo Computerized Universal Testing Machine | Model: | ZL-8006C |
|---|---|---|---|
| Test Speed Range: | 0.01～500mm/min | Displacement Measurement Accuracy: | Within ±0.5% Of Indicated Value/Within ±0.2% Of Indicated Value |
| Deformation Measurement Accuracy: | Within ±0.5% Of The Indicated Value | Test Bench Safety Device: | Electronic Limit Protection |
| Test Bench Lifting Device: | Fast/slow Two Speed Automatic Control, Jogging Possible | Bench Return Function: | Manual Or Automatic Two Options, Automatic Or Manual Return To The Initial Position Of The Test At The Highest Speed After The Test |
| Fixture Configuration: | A Set Of Tensile Fixtures | ||
| High Light: | Servo Control Universal Testing Equipment,Servo Computerized Universal Testing Equipment |
||
Main Feature:
Universal testing machine is a material testing machine that integrates functions such as tension, bending, compression, shear, and ring stiffness. It is mainly used for mechanical performance testing of metal and non-metal materials. It is an ideal testing equipment for industrial and mining enterprises, scientific research units, colleges and universities, engineering quality supervision stations, and other departments.
A universal testing machine is a mechanical testing machine that can perform various tests such as tension, compression, bending, and torsion. The most common types are lever swing and hydraulic swing.
Universal testing machine, also known as universal material testing machine, or tensile testing machine, is a double screw series with an integrated structure of control, measurement, and operation. It integrates contemporary advanced technology and has advantages such as high accuracy, wide speed range, compact structure, convenient operation, and stable performance. The electronic universal testing machine meets the requirements of GB/T1040, 1041, 8804, 9341, 9647, ISO7500-1, GB16491, GB/T17200, ISO5893, ASTMD638, 695, 790, and plastic pipe standards. Suitable for tensile, compression, bending, and creep tests on samples and products of materials such as plastics, waterproof materials, textiles, paper products, and rubber, and equipped with a large pressure plate for direct flat compression (compression recovery), ring stiffness (resistance to external load), creep ratio, ring tensile strength, and other tests on pipes.
The universal material testing machine is a product of the combination of modern electronic technology and mechanical transmission technology. It is a large precision testing instrument that fully utilizes the strengths of electromechanical systems. It can perform multiple performance tests on various materials such as tension, compression, bending, peeling, and shearing, and has the characteristics of wide measurement range, high accuracy, and fast response. The work is reliable, efficient, and can display, record, and print experimental data in real time.
Corresponding Standard :
ISO6892-1-2009, ISO10113-2020, ISO9513-2012, ISO6892-1-2009, ISO898-1-2013,
ASTME8(E8M)-2013a, ASTMA370
| Deformation Measurement System(Optional According to Requirements) |
Extended Configuration: large deformation: minimum gauge distance 10mm, Deformation Range: 800mm Extended Configuration: small deformation: gauge length 25mm, 50mm, 100mm; Deformation Range: 5mm, 10mm, 25mm |
|
Deformation Measurement Accuracy |
Within ±0.5% of the indicated value (large or small deformation can be selected according to customer requirements) |
| Test Bench Safety Device | Electronic limit protection |
| Test Bench Lifting Device | Fast/slow two speed automatic control, jogging possible |
| Bench Return Function | Manual or automatic two options, automatic or manual return to the initial position of the test at the highest speed after the test |
| Overload Protection | 10% more than the maximum load, the machine automatically protects |
| Fixture Configuration | A set of tensile fixtures |
| Host Size | 1040×590×2000mm(L*W*H) |
| power System | Taiwan Delta AC servo motor + drive + high precision ball screw |
| power Supply | 220V, 50HZ, |
| Power | 0.75KW (according to different force value requirements, different power motors are standard) |
| Host Weight | 500 KG(approximately) |
