| Product Name: | High Temperature Tensile Testing Machine Universal Testing Machine Tensile Test | Model: | ZL-8001C |
|---|---|---|---|
| Capacityoption(KG): | 2000,1000,500 ,200 | Unit Selection: | N, KN |
| Test Speed Range: | 0.001~500 Mm/min Stepless Speed Regulation | Power Servo Motor: | Taiwan TECO Servo Motor (Panasonic Servo Motor Optional) & Servo Drive Controller |
| Power Consumption: | 0.4KVA | Power Supply: | 1ø, 220 VAC, 50/60 Hz |
| Host Volume: | 86x60x210 Cm(W*D*H) | ||
| High Light: | High Temperature Tensile Testing Machine,0.4KVA Tensile Testing Machine |
||

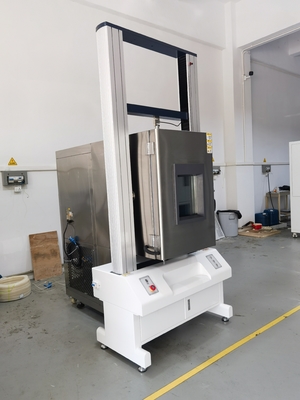

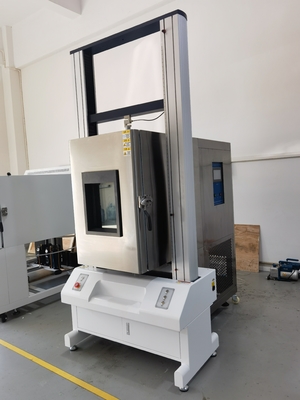

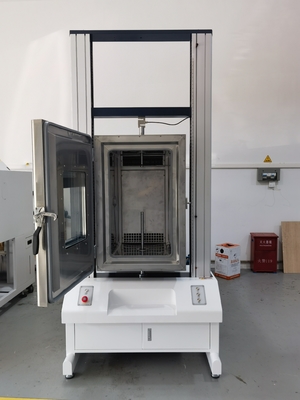

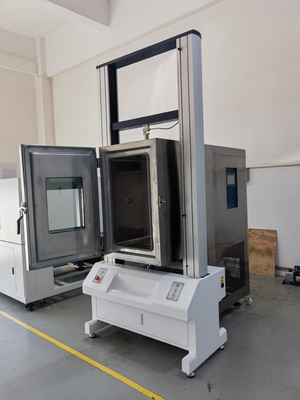

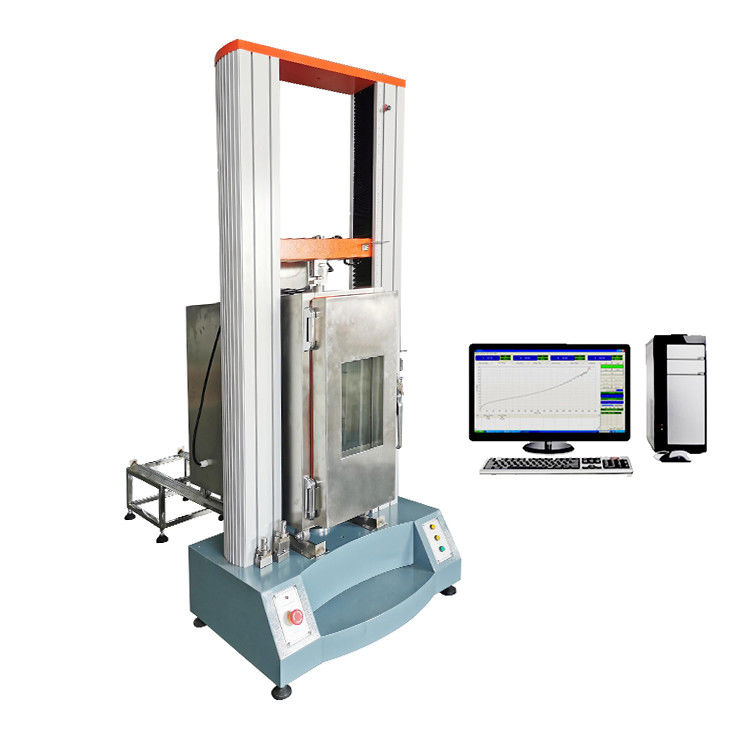

High Temperature Tensile Testing Machine Universal Testing Machine Tensile Test
High temperature universal testing machine is a physical performance testing instrument used in the basic disciplines of physics, engineering, and technical science
This machine adopts computer control and is widely used in rubber, plastic, wires and cables, and textiles
Non metallic materials such as materials, waterproof materials, non-woven fabrics, as well as metal wires, metal foils, and metal sheets
Mechanical performance testing of materials and metal bars, combined with specialized fixtures, is also suitable for various finished products
Elongation, compression, peeling, shearing, tearing, bending (folding) tests. Can print multiple documents
Material, can make graphical output comparisons based on different data, with high control accuracy and easy operation;
Adopting modular design, with a complete variety of accessory accessories and flexible matching.
This machine is mainly suitable for testing the mechanical properties of metals such as tension, compression, and bending
It can also achieve constant stress, constant strain, creep, relaxation, axial, radial, and other functions
Multiple dead cycle tests. Can automatically calculate according to standards such as GB, JIS, ASTM, DIN, etc
Tensile strength, yield strength, elongation, constant elongation stress, constant stress elongation
Elastic modulus and other parameters.
Technical Parameters:
| Capacityoption | KG | 2000 | 1000 | 500 | 200 |
| Test Accuracy |
0.5 level, the accuracy of the test force indication is better than ±0.5% |
||||
| Load Sensing | High-precision tension and pressure sensors (multiple sensors can be installed at the same time - optional) | ||||
| High Resolution | 1/500000 | ||||
| Magnification | 24-bit AD non-segment amplification | ||||
| Unit Selection | N, KN | ||||
| Test Speed Range | 0.001~500 mm/min stepless speed regulation | ||||
| Speed Control Accuracy | ±0.5% | ||||
| Displacement Decomposition Degree | 0.001mm | ||||
| Test Effective Width | Standard type: 400 mm (or customized according to customer requirements) | ||||
|
Test Stroke (Including Fixture) |
Standard type: 800 mm (or customized according to customer requirements) | ||||
