Product Details:
Payment & Shipping Terms:
|

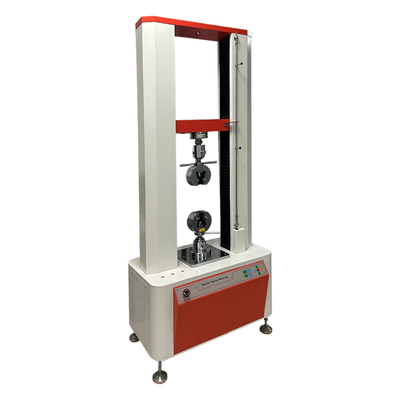

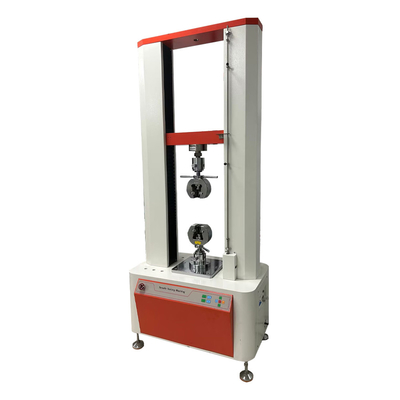

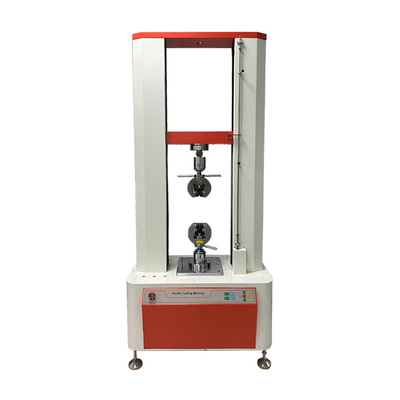

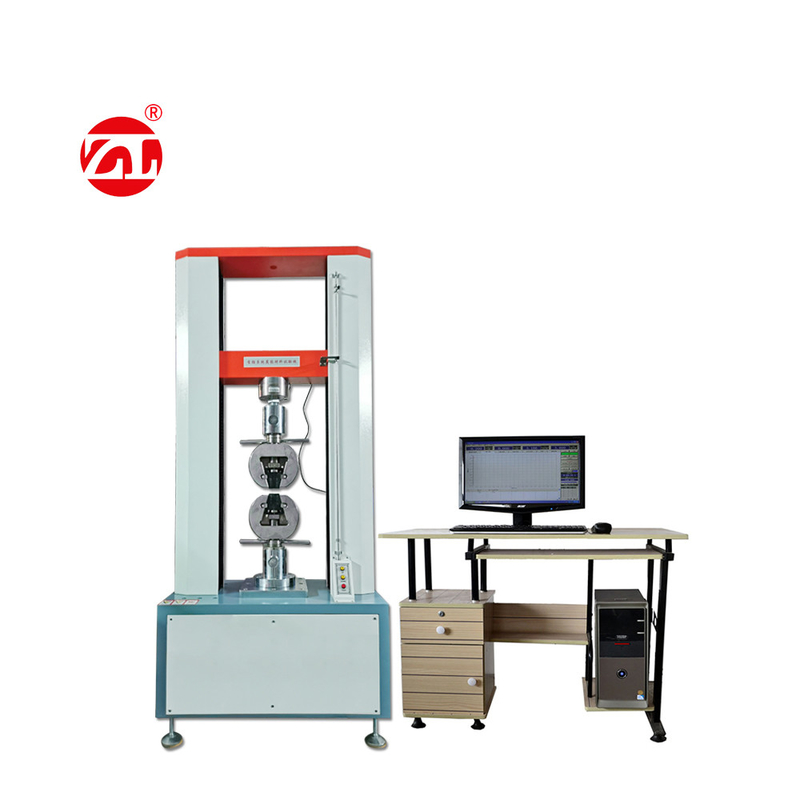

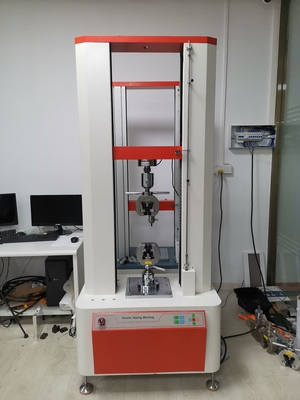

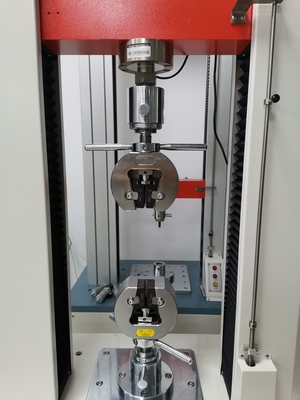

| Product Name: | 30T Universal Material Testing Machine With Computer Servo | Maximum Test Force (KN): | 300 |
|---|---|---|---|
| Test Force Measurement Range: | 1%-100% | Relative Error Of Test Force Indication Value: | <±0.5% |
| Resolution Of Test Force: | 1/500000 Of The Maximum Test Force | Deformation Measurement Range: | 1%-100% |
| Relative Error Of Deformation Value: | ＜±0.5% | Deformation Resolution: | Max. Deformation 1/500000 |
| Relative Error Of Displacement Value: | ＜±0.5% | ||
| High Light: | 30T Universal Material Testing Machine,Computer Servo Universal Material Testing Machine |
||
Project Introduction:
Domestic microcomputer-controlled electronic universal testing machine started in the early 1990s, in order to improve the technical level of enterprise products, the company has introduced foreign advanced technology, so that the company's product technology level jumped to a new level.
Fields of use:
This product is widely used for mechanical property tests on metal and non-metal materials in tension, compression, bending and shear. With a wide range of attachments, they can also be used for testing the mechanical properties of profiles and components. It also has a very wide range of applications in the field of testing materials such as rope, tape, silk, rubber and plastic, where the deformation of the specimen is large and the test speed is fast. It is suitable for quality supervision, teaching and research, aerospace, iron and steel metallurgy, automobile, construction and building materials and other testing fields.
Based on standards:
Meet the requirements of the national standard GB/T228.1-2010 "Room temperature tensile test method for metal materials" and GB/T7314-2005 "Metal compression test method", and meet the data processing of GB, ISO, ASTM, DIN and other standards. It can meet the requirements of users and the standards provided.
Technical Indicators:
| Maximum Test Force (KN) | 300 | |
| Test Force Measurement Range | 1%-100% | |
|
Relative Error of Test Force Indication Value |
<±0.5% | |
| Resolution of Test Force | 1/500000 of the maximum test force | |
| Deformation Measurement Range | 1%-100% | |
| Relative Error of Deformation Value | ＜±0.5% | |
| Deformation Resolution | Max. deformation 1/500000 | |
| Relative Error of Displacement Value | ＜±0.5% | |
| Displacement Resolution(mm) | 0.001 | |
| Speed Range | 0.01mm/min ~ 400mm/min |
Stepless speed control
|
| Stretching Stroke(mm) | 600 | |
| Compression Space (mm) | 600 | |
| Test Width (mm) | 550 | |
| Can be Equipped with Fixture | Tensile, compression, bending, shearing, peeling, tearing, etc. | |
| Dimension of Main Machine (mm) | Approx. 900×600×2000mm | |
| Servo Motor Power (KW) | 3 | |
| Total Weight (KG) | 500(Approx) | |
