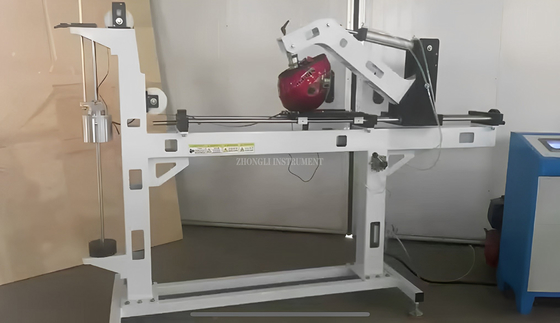

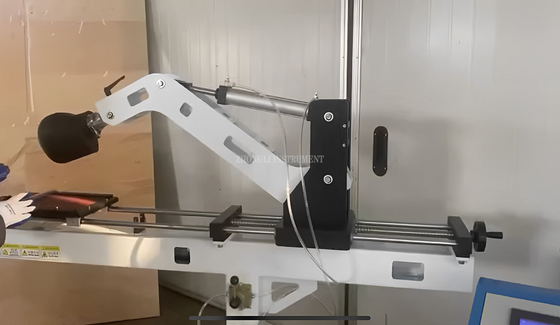

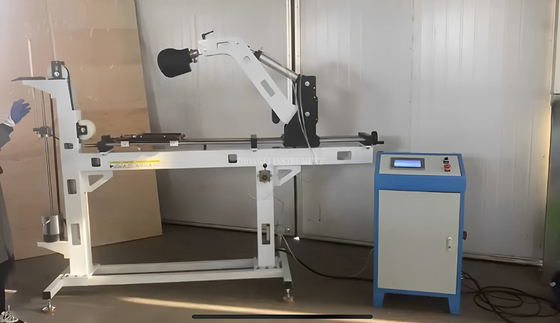

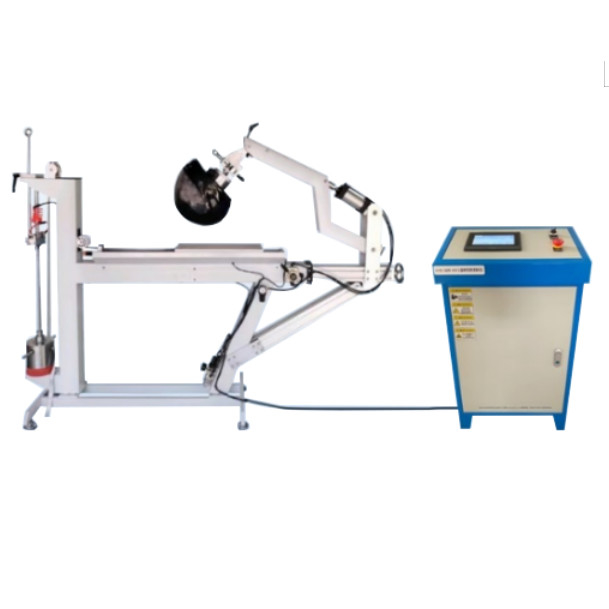

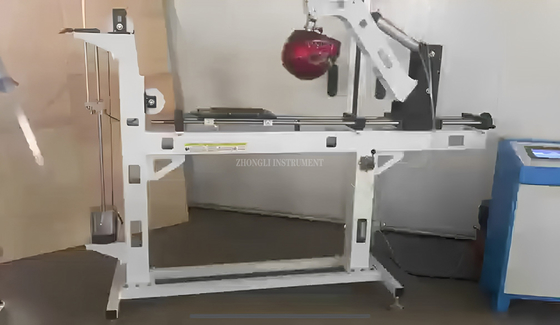

Surface Projection Shear and Friction Tester , Motorcycle Helmet Testing Equipment

Surface Projection Shear and Friction Tester , Motorcycle Helmet Testing Equipment
Surface Projection Shear and Friction Tester , Motorcycle Helmet Testing Equipment
video play

Large Image :  Surface Projection Shear and Friction Tester , Motorcycle Helmet Testing Equipment

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1825
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Helmet Surface Projection Shear and Friction Tester Motorcycle Helmet Testing Equipment is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: Helmet Surface Projection Shear And Friction Tester Motorcycle Helmet Testing Equipment Model: ZL-1825
Friction Sandpaper: Aluminium Oxide Coated Sandpaper 300mm - 303mm Long, Grade 80 Steel Cutter: 6mm High And 25mm Wide, With A 1mm Radius Chamfer On The Top Edge Of The Cutter
Impact Weights: 15kg - 15.5kg Weight Drop Height: 0-1000mm
Pre-loaded Weights: 400N-410N Sensor Range: 0-120mm
Instrument Power Supply: 220V 50HZ
Highlight:

400N Helmet Testing Equipment

,

PLC Touch Screen Helmet Tester

,

Motorcycle Helmet Friction Tester

Surface Projection Shear and Friction Tester
Motorcycle Helmet Testing Equipment designed for comprehensive safety testing of helmet surface structures.
Product Overview
This specialized testing equipment evaluates the shear force and friction performance of raised surface structures on motorcycle and electric vehicle helmets. Engineered for precision and reliability in quality control applications.
Applications
Manufactured according to relevant helmet safety standards, this tester is essential for production facilities, scientific research institutions, and quality supervision departments involved in helmet manufacturing and certification.
Key Features
  • PLC touch screen control system for intuitive operation
  • Horizontal guided carrier with interchangeable sandpaper and cutter installation
  • 360-degree rotatable head type for comprehensive testing angles
  • Professional speed measuring tooling for accurate performance assessment
Technical Specifications
Parameter Specification
Model ZL-1825
Friction Sandpaper Aluminium oxide coated sandpaper 300mm - 303mm long, grade 80
Steel Cutter 6mm high and 25mm wide, with 1mm radius chamfer on top edge
Impact Weights 15kg - 15.5kg
Weight Drop Height 0-1000mm
Pre-loaded Weights 400N-410N
Sensor Range 0-120mm
Power Supply 220V 50HZ
Compliance Standards
GB811, ECE R22.05
