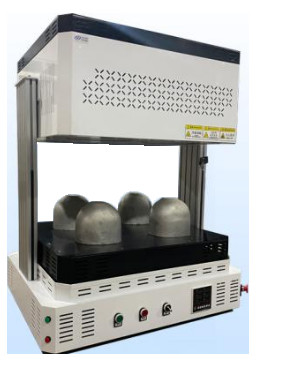

EN ASTM JIS Very High Temperature Safety Helmet Tester With SNELLM2015 AS NZS 2063

Large Image : EN ASTM JIS Very High Temperature Safety Helmet Tester With SNELLM2015 AS NZS 2063

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1806

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ECE EN ASTM JIS Safety Helmet Very High Temperature Tester with SNELLM2015 AS NZS 2063 Will be Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Temperature:	50 ℃ ± 2 ℃
Time Range:	0-99 Hours.	Marterial:	304B
Temperature Fluctuation:	± 2 °C	Arranty:	12 Month
Meet Standards:	GB/T2812-2006, GB 2811-2007、ECE、EN、ASTM、JIS、SNELLM2015、AS/NZS 2063
Highlight:	304B Helmet Tester , High Temperature Safety Helmet Tester , ECE Helmet Testing Machine

EN ASTM JIS Very High Temperature Safety Helmet Tester With SNELLM2015 AS NZS 2063

ECE EN ASTM JIS Safety Helmet Very High Temperature Tester with SNELLM2015 AS NZS 2063

Equipment Description

The Helmet High Temperature Pretreatment Test Chamber is specifically designed, developed, and manufactured for helmet companies to meet new national standard testing requirements. This specialized high-temperature pretreatment equipment prepares helmets for subsequent testing procedures.

Main Characteristics

High-quality cold-rolled plate exterior with 304B mirror stainless steel water bath cabinet
Self-tuning PID temperature controller for precise temperature control
Digital timer with thermostat counting functionality
All stainless steel finned heating system
Complete temperature fluctuation within ±2℃

Download Safety Helmet Testing Machine Catalog (PDF)

Corresponding Standards

GB/T 2812-2006 - Helmets test method
GB/T 2811-2007 - Helmet

Technical Parameters

Test Chamber Temperature	Room temperature - 200°C, standard operating temperature 150±5°C
Test Duration	0-99 min, self-adjustable, 60±2 min standard
Number of Tests	1-4 helmets simultaneously
Head Temperature	50℃±2℃
Test Heads	Wall thickness > 1.5mm, size GB2812 of 1#, material aluminium alloy, internal hollow
Head Temperature Measurement Points	Distance from the midpoint of the head mould <40mm
Instrument Dimensions	8707101100mm
Instrument Power Supply	220V 50HZ 2.8KW
