Safety Resistance Puncture Impact Helmet Testing Equipment EN397 SNELLM2015

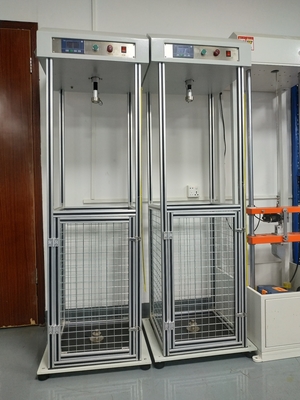

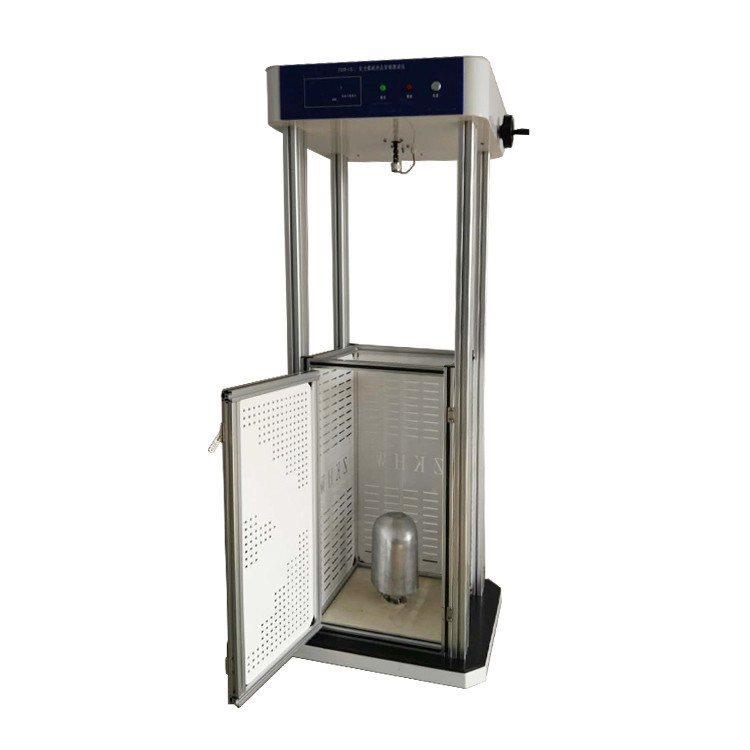

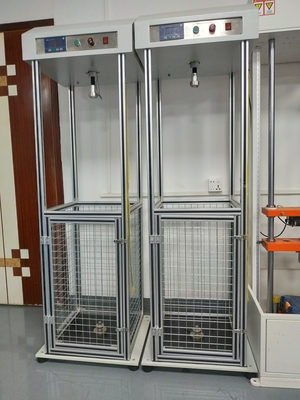

Large Image : Safety Resistance Puncture Impact Helmet Testing Equipment EN397 SNELLM2015

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1801

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Drop Height 1000mm Safety Helmet Resistance Puncture Impact Testing Equipment is Packaged within wooden case
Delivery Time:	10-15 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 60hz	Test Weight:	5-5.01kg
Hammer Hemispherical Diameter:	96 Mm	Material:	45 # Steel
Puncture Hammer:	3-3.05kg Weight	Cone Tip Diameter:	1mm
Maximum Diameter:	28 Mm	Warranty:	12 Month
Meet Standards:	EN397 、GB/T2812-2006、GB 2811-2007 ECE、EN、ASTM、JIS、SNELLM2015、AS/NZS 2063
Highlight:	220v Helmet Testing Equipment , Resistance Puncture Helmet Testing Equipment , AS/NZS 2063 Helmet Testing Machine

Safety Resistance Puncture Impact Helmet Testing Equipment

This professional testing equipment complies with EN397, SNELL M2015, and AS/NZS 2063 standards for evaluating safety helmet performance. Designed specifically for testing impact absorption and puncture resistance capabilities of industrial safety helmets.

Main Purpose

Developed according to national standard GB/T 2812-2006 "Safety helmet test method," this equipment tests helmet impact absorption performance and puncture resistance. Widely used by special labor protection product supervision stations, building research institutes, construction engineering inspection stations, power departments, and helmet manufacturers.

Testing Applications

Dedicated instrument for detecting helmet impact absorption properties and puncture resistance performance.

Test Methods

Preconditioning includes tempering treatment, ultraviolet irradiation pretreatment, and water treatment. Impact absorption testing uses a drop hammer height of 1000mm ± 5mm with sequential flooding, heat, cold, and ultraviolet radiation pretreatment. Puncture resistance testing positions the cone axis through the helmet crown's weakest point within a 100mm diameter area at 1000mm ± 5mm height.

Technical Documentation

Safety Helmet Testing Machine Catalog (PDF)

Technical Parameters

Component	Specifications
Drop Hammer Weight	5-5.01kg
Hammer Hemispherical Diameter	96 mm
Material	45# Steel
Puncture Hammer Weight	3-3.05kg
Puncture Cone Angle	60°
Cone Tip Diameter	1mm
Cone Length	40 mm
Maximum Diameter	28 mm
Hardness	HRC45

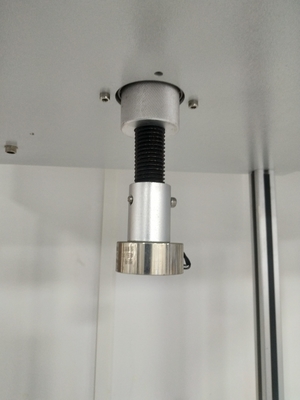

Force Sensors	Measurement range 0-20KN, 5KHz dynamic force sensor, accurate to 1N
Drop Height	1000mm
Head Forms	1#, 2# Si alloy head type testing each one
Standard Compliance	GB/T2812-2006 requirements of Appendix A

Instrument Features

Simple operation for drop hammer and hammer replacement
Automatic guidance system ensures accurate impact positioning
Electric hoist with optical positioning device for reliable automatic positioning
Professional precision sensors with 2t range and ±0.02% accuracy

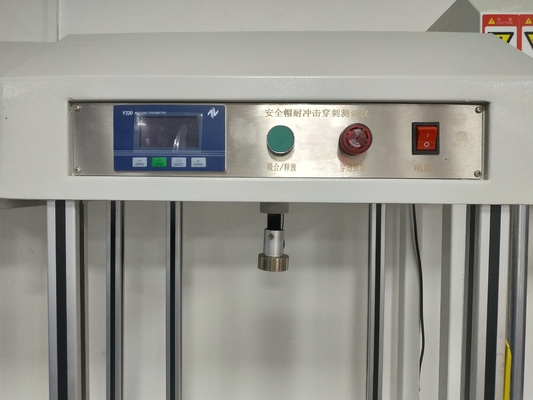

LED digital display with automatic maximum force saving

Compliance Standards

EN397, GB/T2812-2006, GB 2811-2007, ECE, EN, ASTM, JIS, SNELL M2015, AS/NZS 2063
Customizable according to the above standards
