ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test

ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test
ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test

Large Image :  ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1804
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: ISO 16073 EN 397Safety Helmet Electrical Properties Tester For Safety Helmet Electrical Insulation Test is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 50 Sets
Contact Now
Detailed Product Description
Product Name: Safety Helmet Electrical Insulation Tester Voltage: 0-5000V Adjustable
Indication Error: 1% Timing: 0-99S
Probe: Diameter 4mm, The Top Is Hemispherical. Power: 220V 50Hz
Meet Standards: ISO 16073、 En 397、GB/T2812-2006 ECE、EN、ASTM、JIS、SNELLM2015、AS/NZS 2063
Highlight:

ISO 16073 Helmet Tester

,

Electrical Properties Helmet Tester

,

Safety Helmet Electrical Insulation Tester

ISO 16073 EN 397 Electrical Properties Safety Helmet Tester

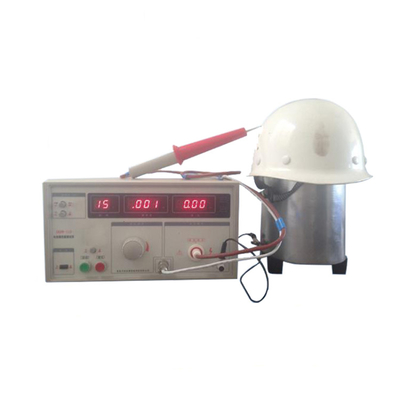

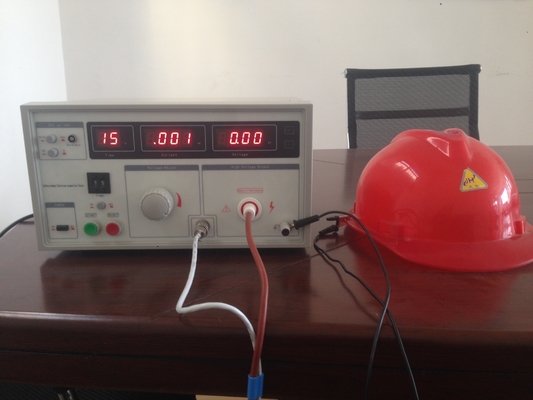

Professional safety helmet electrical insulation testing equipment designed for comprehensive electrical properties evaluation according to international standards.
Main Purpose
Developed in compliance with helmet standards GB/T2812-2006 and GB 2811-2007, this tester is primarily used for safety helmet electrical insulation testing. Widely utilized by special labor protection supplies supervision and inspection stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturers.
Key Features

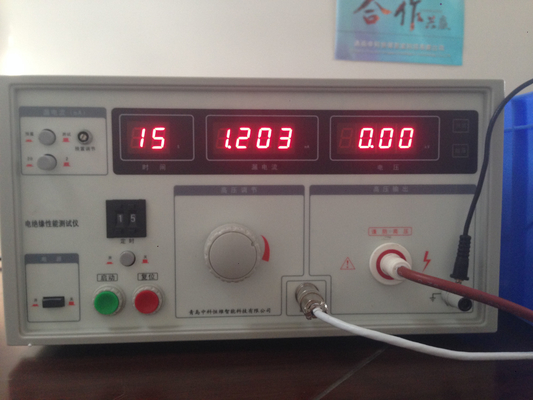

  • Three-window LED display simultaneously shows test voltage, leakage current, and test time
  • Programmable test time with automatic test termination when time limit is reached
  • Customizable leakage current alarm value with automatic voltage cutoff and audible/visual alarm when exceeded
Technical Specifications
Voltage 0-5000V, self-adjustable, standard requirements 1200V ± 25V, indication error: 1%
Timing 0-99S, standard requirements 15S, indication error: 1%
Current 0-2mA or 0-20mA, indicating error 1%
Probe Diameter 4mm, hemispherical tip
Power 220V 50Hz
Applicable Standards
ISO 16073, EN 397, GB/T2812-2006, ECE, EN, ASTM, JIS, SNELL M2015, AS/NZS 2063
Download Safety Helmet Testing Machine Catalog (PDF)
ISO 16073 EN 397 Electrical Properties Safety Helmet Tester For Electrical Insulation Test 0
