Safety Helmet Pretreatment High Temperature Chamber For Science Research Institutes

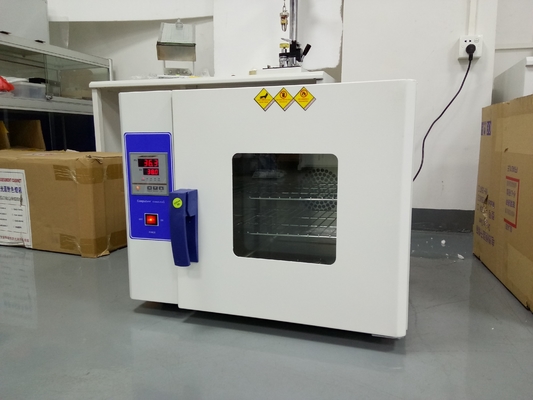

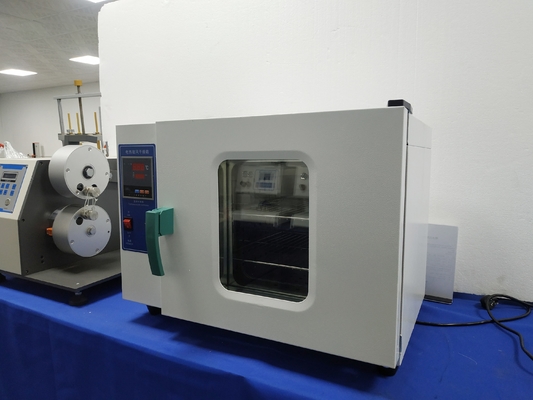

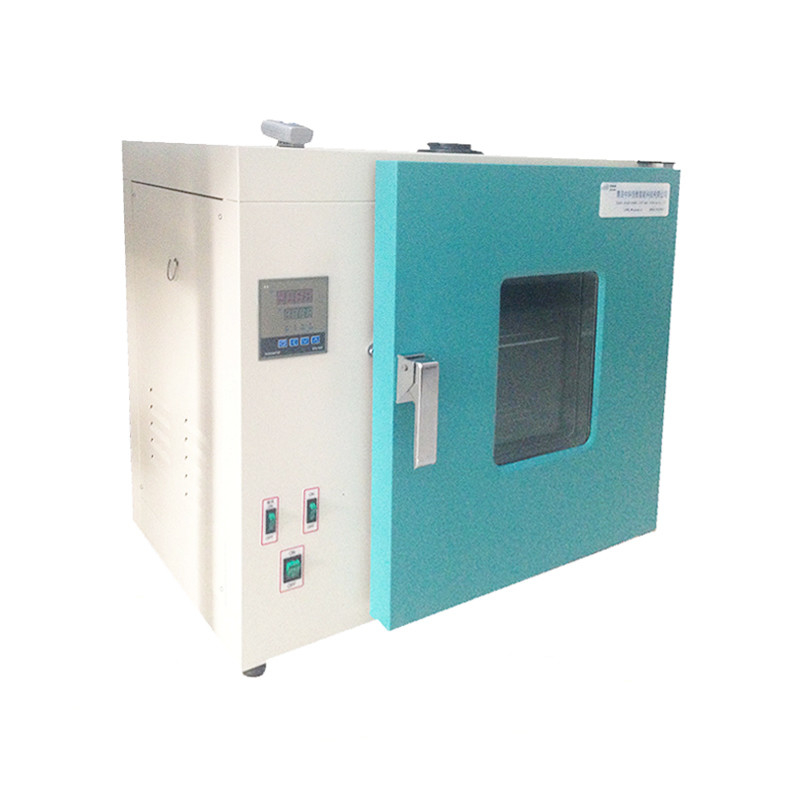

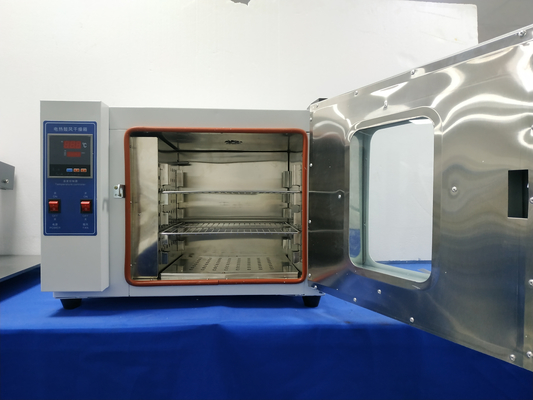

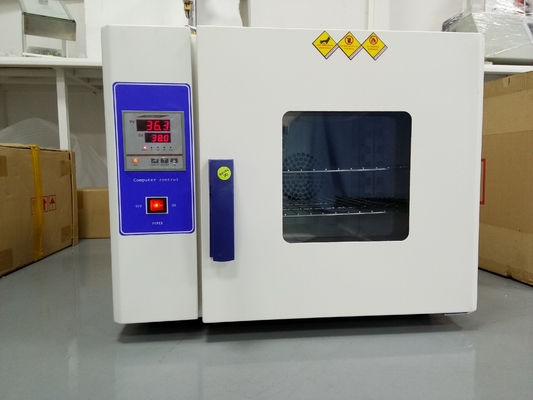

Large Image : Safety Helmet Pretreatment High Temperature Chamber For Science Research Institutes

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-1806

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	ECE EN ASTM Safety Helmet High Temperature Pre-Treatment Chamber For Building Science Research Institutes Will be Packaged within wooden case
Delivery Time:	7-10 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Power:	220v 50hz	Temperature:	50 ℃ ± 2 ℃
Time Range:	0-99 Hours.	Marterial:	304B
Temperature Fluctuation:	± 2 °C	Arranty:	12 Month
Meet Standards:	GB/T2812-2006, GB 2811-2007、ECE、EN、ASTM、JIS、SNELLM2015、AS/NZS 2063
Highlight:	EN Helmet Testing Machine , ASTM Helmet Testing Machine , Helmet Pretreatment High Temperature Chamber

Safety Helmet Pretreatment High Temperature Chamber

Designed for building science research institutes and specialized testing applications

Main Purpose

This high temperature pretreatment chamber is specifically designed for safety helmet testing according to GB/T2812-2006 and GB 2811-2007 standards. It is widely used by special labor protection supplies supervision and inspection stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturers.

Key Features

PID digital microcomputer temperature control for precise temperature regulation
Solid state relays provide contactless, spark-free operation with explosion-proof and anti-corrosion properties
Built-in timing function with adjustable settings and automatic audible alarm
Advanced convection duct design with copper three anti-centrifugal motor ensures continuous air circulation and uniform temperature distribution
Heating wire system offers rapid heating, minimal temperature fluctuations, and cost-effective maintenance
CNC brake construction with high-quality welding and stainless steel interior
3C double tempered glass viewing window for high-temperature resistance and clear internal observation
PT100 metal sensor for accurate and rapid temperature testing

Technical Specifications

Parameter	Specification
Product Name	Helmet High Temperature Pretreatment Test Chamber
Test Temperature	50°C ± 2°C
Temperature Range	0 ~ 200°C
Temperature Control Accuracy	≤ 1°C
Time Range	0 ~ 99 hours
Standard Test Time	3 hours
Sample Capacity	0-6 helmets (customizable)
Power Supply	220V 50HZ 2KW
Material	304B Stainless Steel
Temperature Fluctuation	± 2°C
Display	Count thermostat
Warranty	1-3 years

Applicable Standards

GB/T2812-2006, GB 2811-2007, ECE, EN, ASTM, JIS, SNELL M2015, AS/NZS 2063
Customizable according to specific standard requirements
