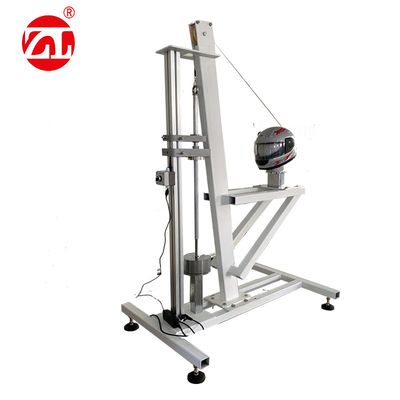

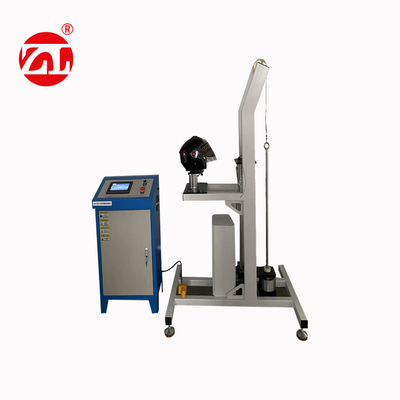

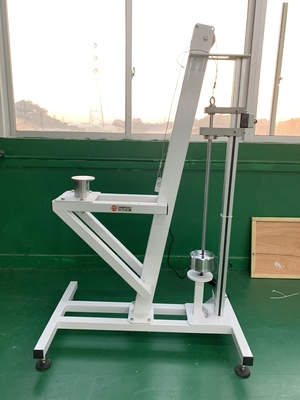

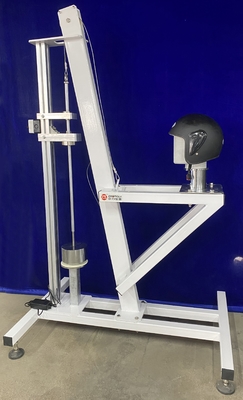

Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard

Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard
Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard

Large Image :  Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1816
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Helmet Surface Projection Shear and Friction Tester with ECE R22.05 CE ASTM Standard is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: Helmet Surface Projection Shear And Friction Tester With ECE R22.05 CE ASTM Standard Initial Weight: 3±0.1kg.
Head Mold Weight: 4kg, 5kg, 6kg, Etc. Fixed Pulley: Φ100mm
Falling Height: 0.5±0.01m Weight Of Falling Objects: 10±0.01kg.
Pulley Height: 600mm Higher Than The Head Type Reference Plane Power Supply: 220V 50HZ.
Warranty Period: 2 Years Standard: ECE R22.05, CE, ASTM
Highlight:

Helmet Surface Projection Friction Tester

,

ECE R22.05 Friction Tester

,

Helmet Surface Projection Shear Tester

Helmet Surface Projection Shear and Friction Tester
Compliant with ECE R22.05, CE, and ASTM standards for comprehensive helmet safety testing.
Application
Designed for motorcycle helmet fixture stability testing according to EN1078, ECE R22.05, GB811-2010, ECE, EN, ASTM, JIS, SNELL M2015, and AS/NZS 2063 standards. Widely used by motorcycle helmet manufacturers, research institutions, and quality supervision units.
Key Features
  • Compact frame design with head model, weights, guidance device, and release mechanism for easy operation
  • Three interchangeable head molds (small, medium, large) accommodate different helmet sizes
  • Electrically controlled weight absorption and release system
  • Electric height adjustment allows precise positioning within the operational range
Technical Documentation
Safety Helmet Testing Machine Catalog (PDF)
Technical Parameters
Parameter Specification
Model ZL-1816
Head Weight 4kg, 5kg, 6kg
Initial Weight 3±0.1kg
Falling Object Weight 10±0.01kg
Fall Height 0.5±0.01m
Fixed Pulley Φ100mm
Pulley Height 600mm above head reference plane
Working Power 220V 50HZ
Result Determination
According to GB811-2010 motorcycle helmet standards, helmet fixture stability must meet the requirement that the helmet shall not separate from the head model during testing.
Compliance Standards
EN1078, ECE R22.05, GB811-2010, ECE, EN, ASTM, JIS, SNELL M2015, AS/NZS 2063. Custom configurations available according to these standards.
