Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test

Large Image : Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-1813

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Helmet Strength of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	50 Sets

Contact Now

Detailed Product Description

Product Name:	Motorcycle Helmet Wearable Device Strength Tester	Working Power:	AC220V, 50Hz
The Force Value Range:	0 ~ 2000N, Accuracy 1%.	The Displacement Range:	0-99min, Precision 0.1s.
Man-made Chin:	The Diameter Of The Rigid Shaft Is 25mm, The Distance Between The Two Axes Is 75mm, And The Shaft Length Is 50mm.	The Beam Speed:	0-500mm/min When No Load, Infinitely Variable Speed Can Be Adjusted. Easy And Quick Adjustment Of Position According To Helmet.
Model:	ZL-1813	Name:	Helmet Strength Of Retention System Tester For NIJ 0104.02 GA294-2012 DOT218 Test
Highlight:	DOT218 Strength Tester , GA294-2012 Strength Tester , Strength of Retention Helmet Testing Machine

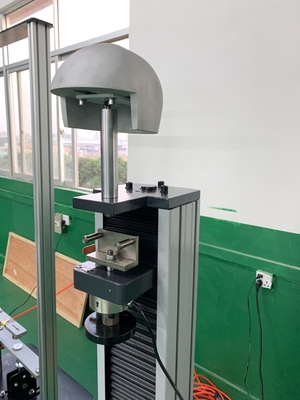

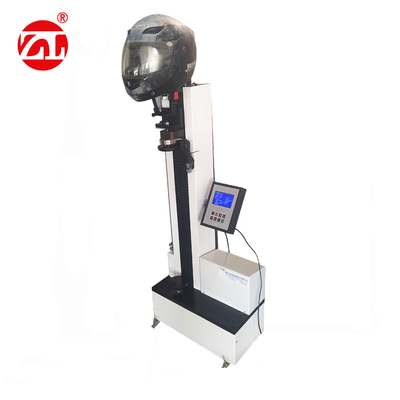

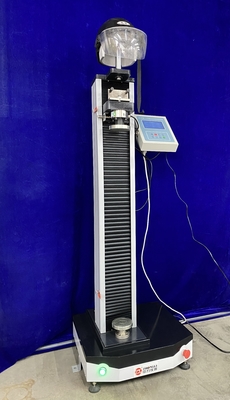

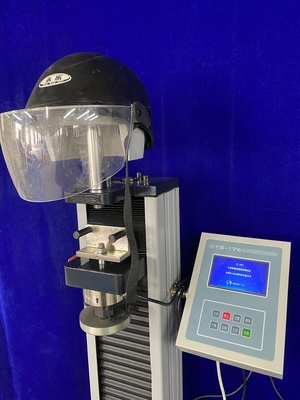

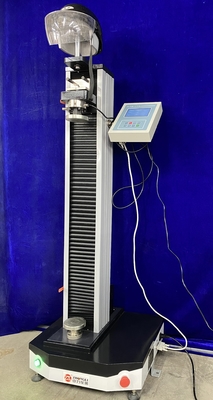

Helmet Strength of Retention System Tester

Comprehensive testing equipment designed for evaluating helmet retention system strength according to NIJ 0104.02, GA294-2012, DOT218, and other international safety standards.

Key Features

Single column host structure with linear vertical movement
Large tether stretching stroke up to 500mm for accurate deformation measurement
Automatic initial load setting and deformation collection without manual zeroing
Touch screen + PLC + specialized test program control system
Automatic speed control and program adjustment based on test conditions
30S or 120S fixed force value hold with automatic closed-loop control
Real-time display of force value, time, displacement, deformation, speed, and test curves

Technical Specifications

Model	ZL-1813
Force Range	0 to 2000N, accuracy 1%
Displacement Range	0-500mm, accuracy 0.1mm
Timing Range	0-99min, accuracy 0.1s
Artificial Chin	Rigid shaft diameter 25mm, distance between shafts 75mm, shaft length 50mm
Crossbar Speed	0-500mm/min at no load, infinitely variable speed; automatic switching between 113N/min (Category A) and 75N/min (Category B)
Working Power	AC220V, 50Hz

Download Safety Helmet Testing Machine Catalog

Result Determination Criteria

According to GB811-2010 motorcycle helmet standards, the helmet wearing device strength performance must meet: No elongation exceeding 25mm, and no lacing tear, connecting pieces detachment, or buckle loosening phenomena.

Compliance Standards

NIJ 0104.02, GA294-2012, DOT218, GB811-2010, ECE, EN, ASTM, JIS, SNELLM2015, AS/NZS 2063. Customizable testing protocols available for all listed standards.
