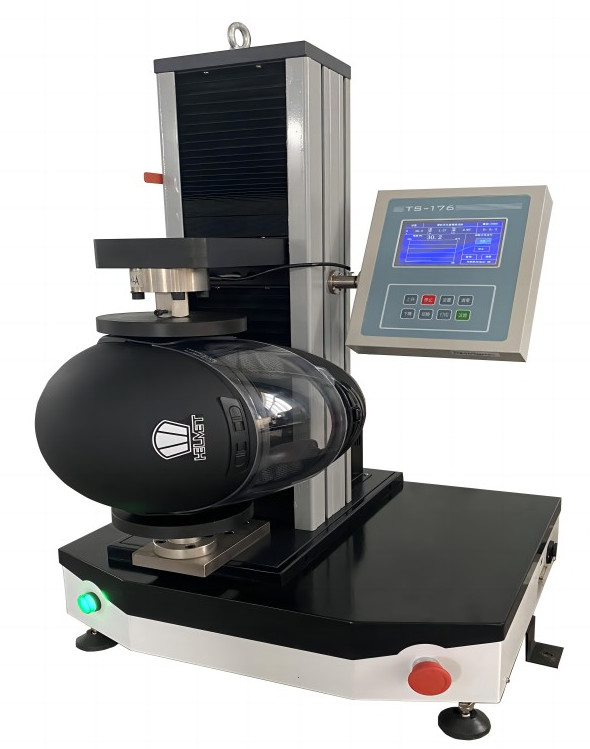

SNELLM2015 AS NZS2063 Lateral Deformation Tester For Motorcycle Helmet

SNELLM2015 AS NZS2063 Lateral Deformation Tester For Motorcycle Helmet
SNELLM2015 AS NZS2063 Lateral Deformation Tester For Motorcycle Helmet
video play

Large Image :  SNELLM2015 AS NZS2063 Lateral Deformation Tester For Motorcycle Helmet

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: ISO
Model Number: ZL-1811
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Packaged within wooden case
Delivery Time: 7-10 days
Payment Terms: T/T,L/C,Western Union
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Power: 220v 50hz Force Value Range: 0 ~ 2000N
Displacement Range: 0-500mm Timing Range: 0-99min
Test Speed: 0-500mm/min Stiffness Plate: Hardness 45HRC
Model: ZL-1811
Highlight:

SNELLM2015 Lateral Deformation Tester

,

Motorcycle Helmet Lateral Deformation Tester

,

AS NZS2063 Helmet Testing Machine

SNELLM2015 AS NZS2063 Lateral Deformation Tester For Motorcycle Helmet
Application
Designed for motorcycle helmet testing according to GB811-2010, ECE, EN, ASTM, JIS, SNELLM2015, and AS/NZS 2063 standards. This lateral deformation tester evaluates the stiffness performance of motorcycle helmets and is widely used by helmet manufacturers, research institutions, and quality control laboratories.
Key Features
  • Single column host structure with linear vertical movement
  • Touch screen + PLC + specialized test program control system
  • Automatic program control with specialized motors and controllers
  • Speed automatically adjusts based on test conditions
  • Automatic 2-minute force value hold with closed-loop control
  • Real-time display of force value, time, displacement, deformation, speed, and test curves
Technical Specifications
Model ZL-1811
Force Range 0 to 2000N, accuracy 1%
Displacement Range 0-500mm, accuracy 0.1mm
Timing Range 0-99min, accuracy 0.1s
Test Speed 0-500mm/min at no load, infinitely variable speed. Loading at 50N/min and unloading at 100N/min, automatically switched during test process
Stiffness Plate Metal plate hardness 45HRC
Operating Power AC220V, 50Hz
Documentation
Safety Helmet Testing Machine Catalog (PDF)
Compliance Standards
  • GB811-2010
  • ECE
  • EN
  • ASTM
  • JIS
  • SNELLM2015
  • AS/NZS 2063
Custom configurations available according to the above standards
