EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063

EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063
EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063 EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063 EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063 EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063

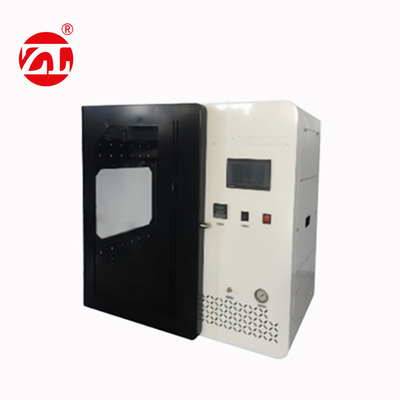

Large Image :  EN 397 Laboratory Safety Helmet Flame Retardant Tester With SNELLM2015 AS NZS 2063

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1808
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Safety Helmet Fire Retardant Tester is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: EN 397 Laboratory Safety Helmet Flame Resistance Tester With SNELLM2015 AS NZS 2063 Flame Height: 50 ± 2mm, And A Flame Height Of 50mm Ruler.
Flame Spray Head: Fuel Nozzle Horizontally Placed, Internal Diameter 10mm. Power Supply: 220V 50HZ 100W.
Air Source: Industrial Grade Methane (customer Self-provisioned) Meet Standard: GB/T2812-2006, GB 2811-2007
Model: ZL-1808
Highlight:

EN 397 Flame Retardant Tester

,

Safety Helmet Flame Retardant Tester

,

Flame Resistance Helmet Testing Machine

EN 397 Laboratory Safety Helmet Flame Retardant Tester
Compliant with SNELLM2015 and AS/NZS 2063 standards for comprehensive safety helmet flame resistance testing.
Main Purpose
Designed according to helmet standards GB/T2812-2006 and GB 2811-2007, this tester is primarily used for safety helmet fire retardant testing. Widely utilized by special labor protection supplies supervision and inspection stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturers.
Key Features
  • Burner pulse auto-ignition system
  • Automatic burner timing with automatic reset function
  • Digital display for afterburning time and smoldering time recording
  • Adjustable flame height with configurable flame height gauge
Technical Specifications
Component Specification
Bracket Firmly clamps helmet for stable positioning during testing; adjustable distance between helmet and flame spray head
Timer Indication error ±1%, range 0-999.9S for continued burning time recording
Timer Task Indication error ±1%, range 0-999.9S for flame application timing
Flame Height 50 ± 2mm with 50mm flame height ruler

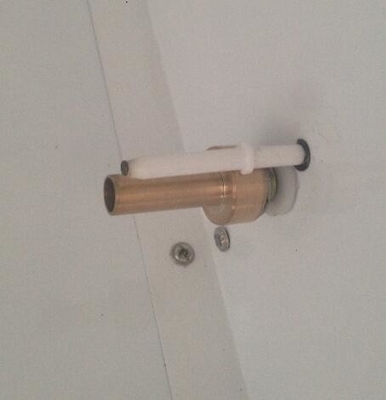

Flame Spray Head Fuel nozzle horizontally placed, internal diameter 10mm
Fuel Supply Pressure regulator valve, gas volume control valve, and gas storage tank for stable 50mm blue flame ejection
Power Supply 220V 50HZ 100W
Air Source Industrial grade methane (customer self-provisioned)
Applicable Standards
  • EN 397, GB/T2812-2006, GB 2811-2007
  • ECE, EN, ASTM, JIS, SNELLM2015, AS/NZS 2063
  • Customizable according to the above standards
Documentation
Safety Helmet Testing Machine Catalog (PDF)
