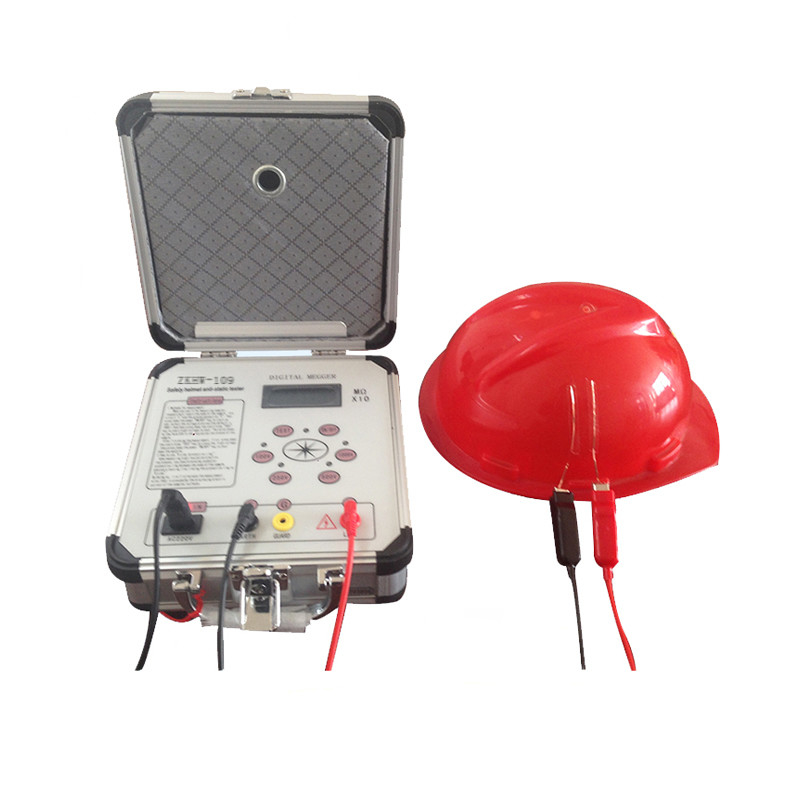

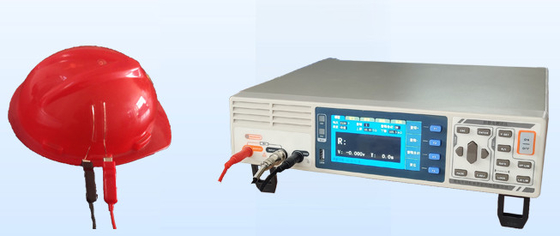

Safety Helmet Anti Static Tester , JIS ECE EN ASTM Helmet Testing Equipment

Safety Helmet Anti Static Tester , JIS ECE EN ASTM Helmet Testing Equipment
Safety Helmet Anti Static Tester , JIS ECE EN ASTM Helmet Testing Equipment Safety Helmet Anti Static Tester , JIS ECE EN ASTM Helmet Testing Equipment

Large Image :  Safety Helmet Anti Static Tester , JIS ECE EN ASTM Helmet Testing Equipment

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-1803
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: JIS ECE EN ASTM Safety Helmet Anti-Static Tester Helmet Testing Equipment is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: GB / T 2812-2006 High Output Power Safety Helmet Anti-static Tester Resistance Range: 0-2×1010 Ω.
Indication Error: 1% Power: DC: 8 × 1.5V (AA, R6) Battery; AC: 220V/50Hz
The Size Of The Instrument: 25 × 22 × 15CM Voltage Range: 100V (250V, 500V, 1000V Can Choose )
Meet Standards: GB/T2812-2006, GB 2811-2007 ECE、EN、ASTM、JIS、SNELLM2015、AS/NZS 2063
Highlight:

Helmet Anti Static Tester

,

Safety Helmet Anti Static Tester

,

JIS Helmet Testing Equipment

Safety Helmet Anti Static Tester
JIS ECE EN ASTM Helmet Testing Equipment
Product Overview
This Safety Helmet Anti-Static Tester is designed for comprehensive helmet testing according to international standards including JIS, ECE, EN, and ASTM. The equipment is widely used by special labor protection supplies supervision stations, building science research institutes, construction quality inspection stations, power departments, and helmet manufacturers.
Main Purpose
Primarily used to test safety helmet anti-static properties according to helmet standards GB/T2812-2006 and GB 2811-2007.
Key Features
  • High-strength aluminum alloy construction with equipotential protection rings and fourth-order active low-pass filters
  • Effective shielding against external power frequency and strong electromagnetic fields
  • High output power with strong load capacity and anti-interference capability
  • Battery-powered operation (AC power supply optional) with no manual intervention required
  • Automatic full-scale test conversion with LED display of test results
  • Audible alarm for values exceeding upper or lower limits
Technical Specifications
Parameter Specification
Voltage Range 100V, 250V, 500V, 1000V (standard requirement: 100V)
Resistance Range 0-2*10¹⁰ Ω
Indication Error 1%
Power Supply DC: 8 * 1.5V (AA, R6) battery; AC: 220V/50Hz
Instrument Dimensions 25 * 22 * 15 cm
Applicable Standards
GB/T2812-2006, GB 2811-2007, ECE, EN, ASTM, JIS, SNELL M2015, AS/NZS 2063
Custom configurations available according to the above standards
