Strain Controlled Soil Testing Apparatus , Electric Lime Unconfined Soil Pressure Gauge

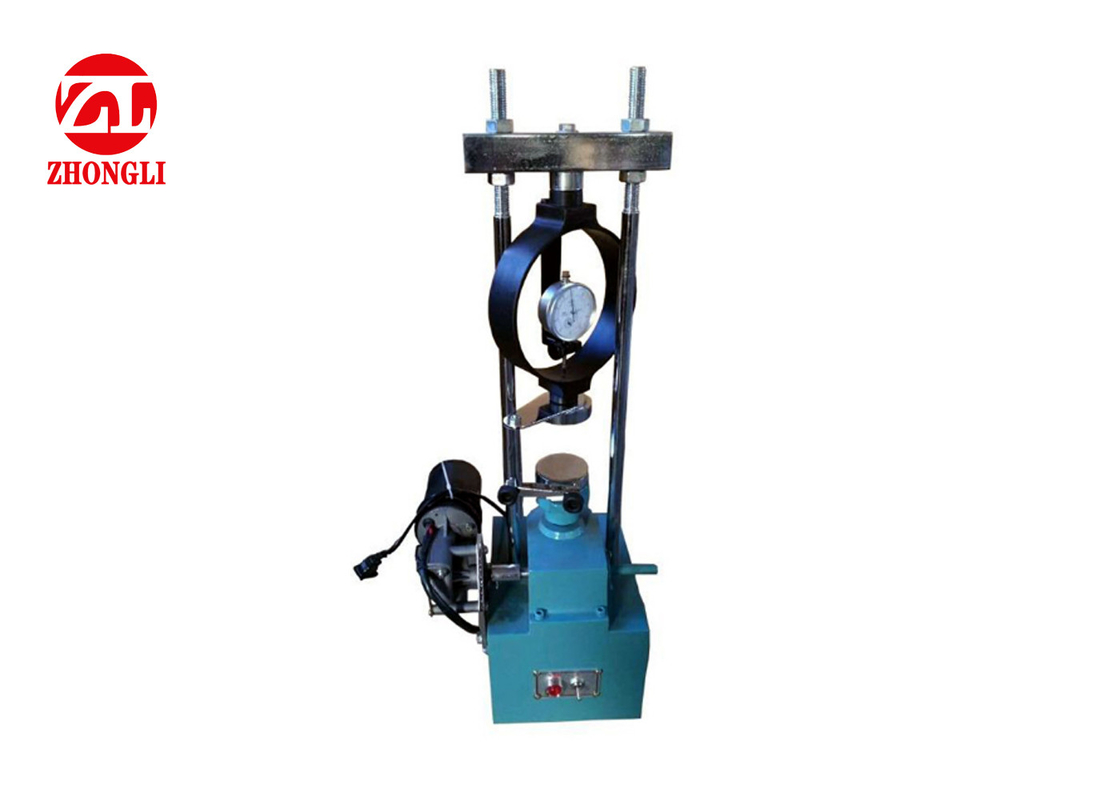

Large Image : Strain Controlled Soil Testing Apparatus , Electric Lime Unconfined Soil Pressure Gauge

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2422

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Maximum Load:	5KN	Motor Specification:	220V 170W
Electric Rising Speed:	3mm/min	Manual Ascending Speed:	18 Laps/1mm
Diameter Of Screw Disc:	Ф52mm	Lead Screw Moving Distance:	50mm
Highlight:	Unconfined Gauge Soil Testing Apparatus , Electric Lime Soil Pressure Gauge , Unconfined Soil Pressure Gauge

Strain Controlled Soil Testing Apparatus

Electric Lime Unconfined Soil Pressure Gauge

The Strain Controlled Electric Lime Soil Unconfined Pressure Gauge is a precision instrument designed for testing the compressive strength of lime-soil mixtures. This essential testing apparatus provides critical mechanical data for pavement design and maintenance applications, while also supporting various other geotechnical testing requirements.

Applications

This instrument evaluates the compressive strength of lime-soil, a crucial mechanical property for studying soil stabilization. The test results provide fundamental data for pavement design, construction quality control, and maintenance planning. The apparatus also supports compressive strength testing and other geotechnical evaluations.

Technical Specifications

Maximum Load	5KN
Motor Specification	220V 170W
Electric Rising Speed	3mm/min
Manual Ascending Speed	18 laps/1mm
Diameter Of Screw Disc	Ф52mm
Lead Screw Moving Distance	50mm

Structural Components

Base: Forms the foundation of the instrument, creating a stable frame with columns and beams
Jacking Device: Provides controlled loading during testing operations
Bearing Plate: Upper bearing plate positioned on the lower bearing plate for specimen support
Force Measuring Ring: 5KN capacity for precise pressure measurement and compressive strength determination
Dial Indicator: Installed in the force-measuring ring center with contacts engaging the inner ring surface

Available Specifications

Three different specifications are available to meet various testing requirements and application scenarios.
