Small Scale Laboratory Concrete Frequency Conversion Vibration Test Bench for Mortar Test Block

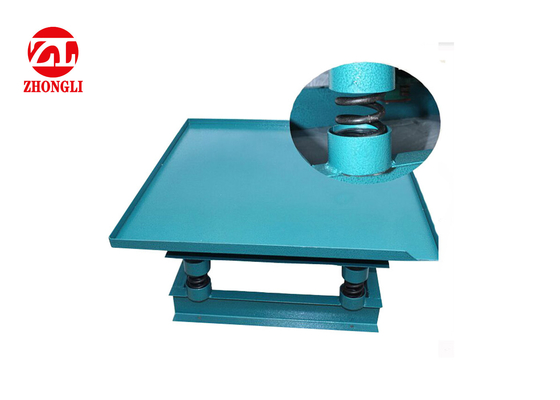

Large Image : Small Scale Laboratory Concrete Frequency Conversion Vibration Test Bench for Mortar Test Block

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2421

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Table Size:	500*500mm	Vibration Frequency:	2860 Times/min
Amplitude:	0.3-0.6mm	Vibrator Power:	0.55kw
Maximum Load:	100Kg	Voltage:	220V/380V Optional
Highlight:	Laboratory Concrete Vibration Test Bench , Mortar Test Block Vibration Test Bench , Mortar Test Block Concrete Vibrating Table

Small Scale Laboratory Concrete Frequency Conversion Vibration Test Bench

This specialized vibration test bench is designed for mortar test block preparation in laboratory settings, providing precise frequency conversion vibration for concrete specimen formation and compaction.

Product Overview

The vibrating table for concrete testing is primarily used for forming concrete specimens in laboratory environments, on-site construction locations, and for vibrating prefabricated components. It effectively compacts various concrete elements including slab columns, beams, and other structural components.

Applications

Ideal for laboratory specimen formation, on-site construction sample preparation, and vibration compaction of prefabricated concrete components including various slab columns, beams, and structural elements.

Structure and Working Principle

The concrete vibrating table consists of a base frame, vibrator spring, and other essential components. The table top and base frame are constructed from welded steel plates and section steel. The vibration mechanism includes a motor and a pair of identical eccentrics connected through hanger couplings, installed at the center of the table's reverse side to ensure stable, vertical vibration during operation.

Technical Specifications

Parameter	Model A	Model B	Model C
Table Size	500 * 500 mm	800 * 800 mm	1000 * 1000 mm
Vibration Frequency	2860 times/min	2860 times/min	2860 times/min
Amplitude	0.3-0.6 mm	0.3-0.6 mm	0.3-0.6 mm
Vibrator Power	0.55 kW	1.5 kW	1.5 kW
Maximum Load	100 kg	200 kg	250 kg
Voltage	220V/380V optional	220V/380V optional	220V/380V optional
