Ceramic Vacuum ISO 10545 Water Absorption Tester Digital Display Type

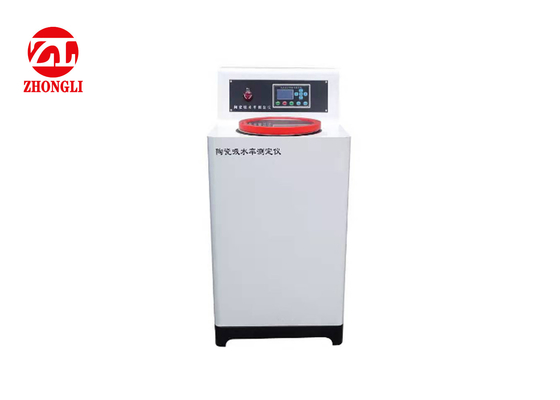

Large Image : Ceramic Vacuum ISO 10545 Water Absorption Tester Digital Display Type

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2420

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Vacuum Degree:	Local Atmospheric Pressure (unit MPa) - (minus) 0.01MPa	Volume:	Ф250 × 300mm
Vacuuming Time:	0-99 Minutes 59 Seconds Continuously Adjustable 0-99	Water Injection Time:	0-99 Minutes 59 Seconds Continuously Adjustable 0-99
Repeatability Error:	<5%	Voltage:	220V, 50HZ
Highlight:	220V Water Absorption Tester , Ceramic Vacuum Water Absorption Tester , Ceramic Vacuum Water Absorption Test Machine

ISO 10545 Digital Display Type Ceramic Vacuum Water Absorption Tester

Product Introduction:

This instrument complies with GB/T3810.3-2016 and ISO10545-3-1995 water absorption, apparent porosity, apparent relative density and bulk density measurement The ratio, apparent porosity, and bulk density were measured. It also meets the measurement conditions of GB/T3299-2011 "Determination of Water Absorption Rate of Ceramics for Daily Use".
The instrument can also be used to determine the water absorption of bricks, cement products, etc.

Technical Parameter

1. Vacuum degree: local atmospheric pressure (unit MPa) - (minus) 0.01MPa.
2. Volume: Ф250 × 300mm
3. Vacuuming time: 0-99 minutes 59 seconds continuously adjustable 0-99
4. Water injection time: 0-99 minutes 59 seconds continuously adjustable 0-99
5. Repeatability error: <5%
6. Time digital display
7. Voltage: 220V, 50HZ

The structure and composition of the instrument

The instrument adopts an electromechanical integration structure and consists of a vacuum container, a distilled water container, a vacuum pump, a vacuum gas injection valve, an electromagnetic water inlet valve, a water discharge valve, and a digital controller.
