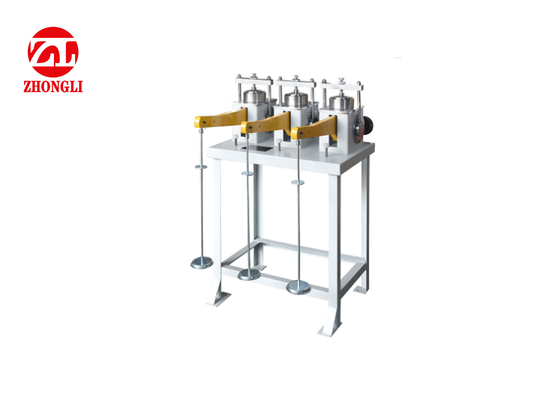

Laboratory GBT 4935 Soil Consolidation Test Machine Triple Medium And Low Pressure

Large Image : Laboratory GBT 4935 Soil Consolidation Test Machine Triple Medium And Low Pressure

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2417

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Soil Sample Area:	30cm2	Leverage Ratio:	1:12
Loading Method:	Vertical Loading	Loading Level:	12.5～1600kPa
Vertical Deformation:	Dial Indicator Range 0～10mm Accuracy 0.01mm Optional	Dimensions:	650500900mm
Highlight:	30cm2 Consolidation Test Machine , Laboratory Soil Consolidation Test Machine , Soil Consolidation Laboratory Testing Instrument

GBT 4935 Laboratory Soil Triple Medium Pressure And Low Pressure Consolidation Testing Machine

This advanced testing instrument is designed for soil compression analysis to determine the relationship between deformation and pressure, or void ratio and pressure of soil samples under confined conditions with axial drainage. The system measures deformation over time to calculate critical soil parameters including unit settlement, compressibility, compression index, rebound index, compressive modulus, and consolidation coefficient, tailored to meet specific project requirements.

Technical Specifications

Parameter	Medium Pressure	Low Pressure
Soil Sample Area	30cm² / 50cm²	30cm² / 50cm²
Leverage Ratio	1:12	1:12
Loading Method	Vertical loading	Vertical loading
Loading Levels	9 levels (30cm²) 16 levels (50cm²)	8 levels (30cm²) 14 levels (50cm²)
Pressure Range	12.5-1600 kPa (30cm²) 7.5-800 kPa (50cm²)	12.5-800 kPa (30cm²) 12.5-400 kPa (50cm²)
Specific Pressure Values	12.5/25/50/100/200/300/400/800/1600 kPa (30cm²) 7.5/12.5/20/25/30/50/80/100/160/200/260/300/360/400/760/800 kPa (50cm²)	12.5/25/50/100/200/300/400/800 kPa (30cm²) 7.5/12.5/20/25/30/50/80/100/160/200/260/300/360/400 kPa (50cm²)
