Bearing Ratio GB / T50123-1999 CBR test equipment For Soil And Pavement Base

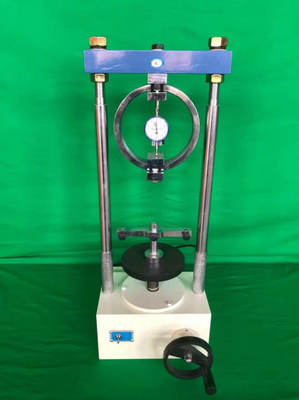

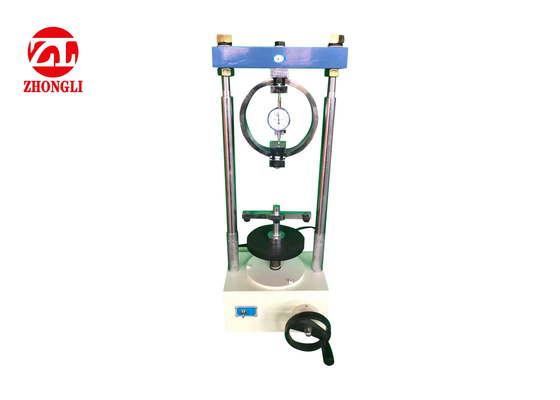

Large Image : Bearing Ratio GB / T50123-1999 CBR test equipment For Soil And Pavement Base

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2418

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Speed:	1mm/min	Maximum Pressure:	30KN
End Face Diameter:	Φ50mm	Length:	100mm
Dial Indicator:	0——10mm, 2 Pieces	Perforated Plate:	The Bottom Plates Are Each Fast
Load Plate:	4 Pieces (outer Diameter Φ150mm, Inner Diameter Φ52mm, Each 1.25kg)	Test Tube:	The Inner Diameter Is Φ152mm, The Height Is 170mm, And The Spacer Is Φ151mm And The Height Is 50mm
Instrument Size:	310 X 310 X 930mm (L X W X H)	Weight:	100kg
Highlight:	Soil CBR Test Equipment , Bearing Ratio CBR Test Equipment , CBR Laboratory Testing Instrument

Bearing Ratio GB/T50123-1999 CBR Test Equipment for Soil and Pavement Base

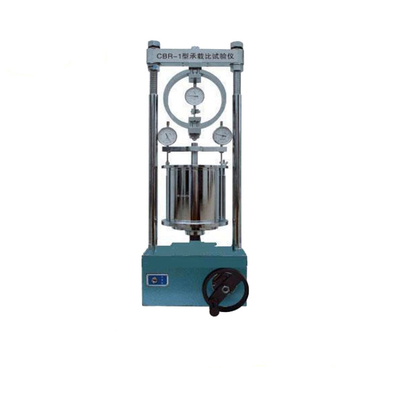

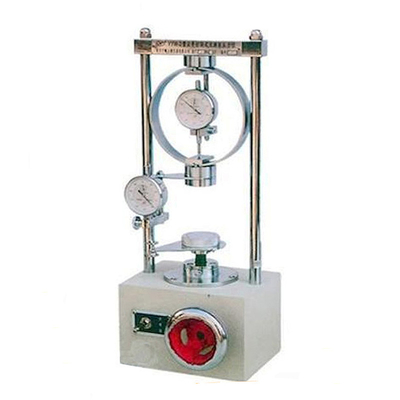

The CBR-1 type bearing ratio tester is designed for conducting bearing ratio tests on various soils and mixtures with particle sizes less than 40mm. This essential geotechnical testing instrument determines the load-bearing capacity of designed pavement, pavement base, subbase, and subgrade material layers after compaction in specified test tube molds.

Product Features

Compact design with high output capacity
User-friendly operation and setup
Comprehensive system including main unit, force ring, penetration rod, loading plate, dial indicators, and expansion measurement device
Ideal for laboratory and field testing applications

Applications

This bearing ratio (CBR) tester is used to evaluate the bearing capacity of various soils, pavement bases, and sub-base materials after specimen preparation in standardized test tubes, making it essential for civil engineering and construction quality control.

Technical Specifications

Bearing Ratio Tester Speed	1mm/min
Maximum Pressure	30KN
Penetration Rod End Face Diameter	Φ50mm
Penetration Rod Length	100mm
Dial Indicators	0-10mm (2 pieces)
Perforated Plate	Bottom plates with fastening mechanism
Load Plates	4 pieces (outer diameter Φ150mm, inner diameter Φ52mm, 1.25kg each)
Test Tube	Inner diameter Φ152mm, height 170mm with spacer Φ151mm, height 50mm
Instrument Dimensions	310 x 310 x 930mm (L x W x H)
Weight	100kg
