Product Details:
Payment & Shipping Terms:
|
| Eccentricity: | 22.5 Mm | Dimensions: | 700×650×600mm |
|---|---|---|---|
| Weight: | 109Kg | Speed: | 300±10%rp/min |
| Distance: | 195 | Sample Size: | 100 × 100 (mm) |
| High Light: | 22.5mm Eccentricity Surface Wear Tester,Ceramic Glazed Tile Surface Wear Tester,300rp/min Surface Wear Tester |
||

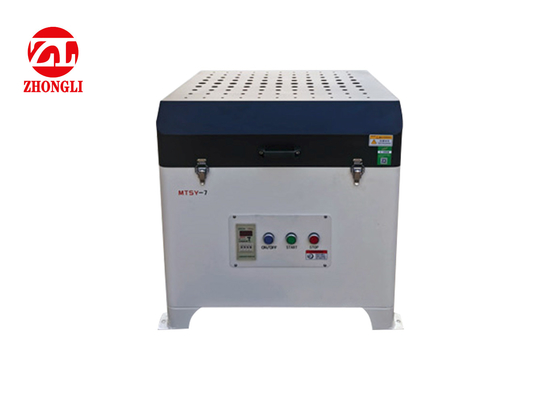

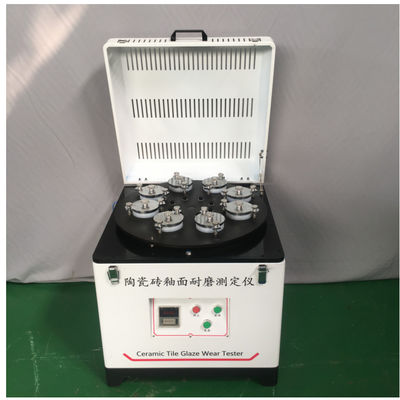

GB/T3810.7 Laboratory Ceramic Glazed Tile Glaze Surface Wear Tester
Product Introduction:
This tester is completely designed and manufactured according to ISO/DIS10545/7 "Ceramic Tiles - Glazed Tile Surface Abrasion Resistance Test Method" and GB/T3810.7 "Ceramic Tiles Glazed Abrasion Resistance Test Method". A certain amount of abrasive is placed on the glazed surface of the ceramic tile, so that the abrasive is ground on the glazed surface, and the difference classification of the glazed surface of the ground samples is visually compared.
Technical Parameter:

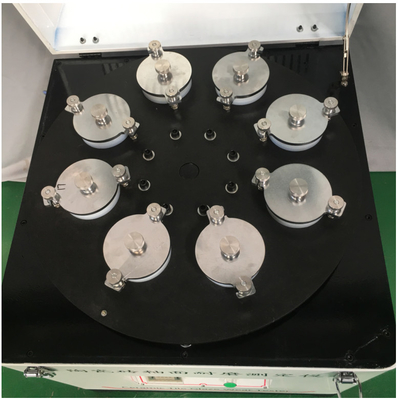

1. Sample size: 100 × 100 (mm); 8 samples (also known as eight-head grinding) or 3 samples (also known as three-head grinding) can be tested for wear resistance at the same time, and the resistance of less than 8 samples Grinding test can also be used.
2. The distance between the center of the support turntable and the center of each sample is 195, and the distance between the two adjacent sample clamps is equal.
3. Rated speed of the support plate: 300±10%rp/min
4. Eccentricity: e = 22.5 mm
5. The inner diameter of the metal fixture with rubber seal is Ф83, the space height in the fixture is 25.5mm, and the test area provided is about 54mm2
6. Dimensions: 700×650×600mm
7. Weight of the whole machine: 109Kg
