Geotextile GB / T15789 Water Permeability Tester With Flow Test

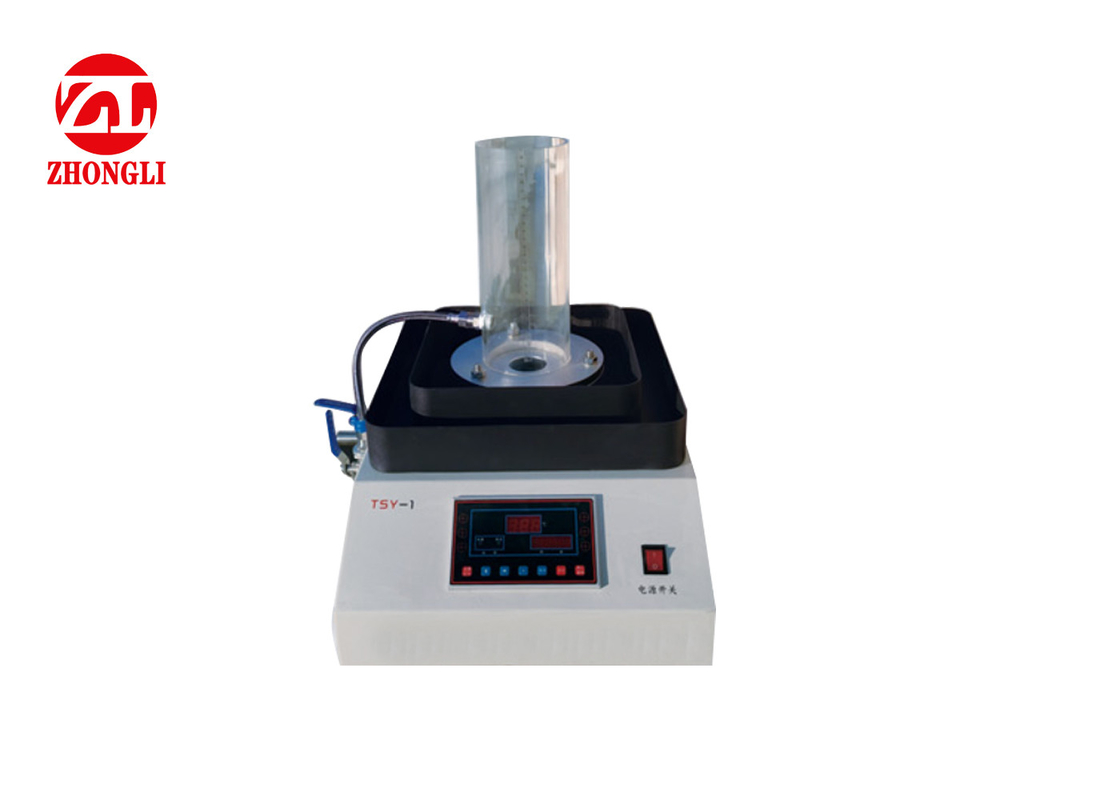

Large Image : Geotextile GB / T15789 Water Permeability Tester With Flow Test

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2402

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Maximum Head Pressure Difference:	250mm	The Inner Diameter Of The Holder:	ф50±0.5mm
The Maximum Thickness Of The Sample:	20mm	Time Counter:	0~99.99
Thermometer Range:	0~50	Measuring Cylinder:	1000mL
Power Supply:	220v	Dimensions:	500×550×600mm
Highlight:	1000mL Water Permeability Tester , Geotextile Water Permeability Tester , Geotextile Laboratory Testing Instrument

Geotextile GB/T15789 Water Permeability Tester With Flow Test

This instrument is designed to measure the water permeability of various types of geotextiles. Its performance meets the requirements specified in GB/T15789 and JTGE50 "Testing Methods for Water Permeability of Geotextiles". The tester measures water flow vertically through a single layer of geotextile under specified conditions.

Technical Specifications

Maximum head pressure difference	250mm
Inner diameter of the holder	ф50±0.5mm
Maximum thickness of the sample	20mm
Time counter	0~99.99
Thermometer range	0~50
Measuring cylinder	1000mL
Power supply	220v
Dimensions	500550600mm
Weight of the whole machine	36kg
