ISO 9863 JTG E50 Geotextile Thickness Gauge Meter For Geosynthetics And Related Products

Large Image : ISO 9863 JTG E50 Geotextile Thickness Gauge Meter For Geosynthetics And Related Products

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2403

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Presser Foot Area:	25cm (round Diameter Ф56.42mm)	Presser Foot Weight:	5N (weight 510.2g Four)
Sample Pressure:	2±0.01KPa; 20±0.1KPa; 200±0.1KPa	Percentage Table:	0～24±0.01mm
Micrometer:	0～25±0.001mm	Stopwatch:	Minimum Division Value 0.1s
Dimensions:	730×320×350mm	Weight:	40Kg
Highlight:	Geosynthetics Thickness Gauge Meter , Geotextile Thickness Gauge Meter , Geosynthetics Laboratory Testing Instrument

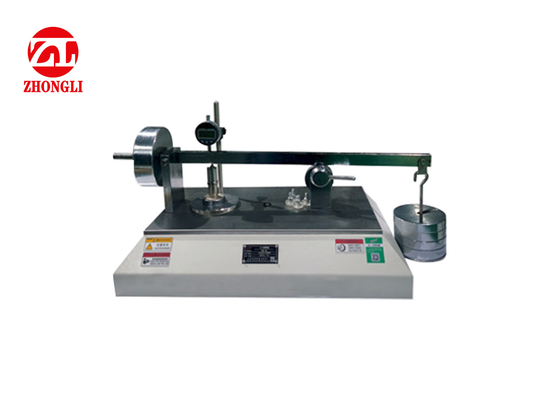

ISO 9863 JTG E50 Geotextile Thickness Gauge Meter

Professional testing instrument for geosynthetics and related products thickness measurement under various pressure conditions.

Working Principle

The geotextile thickness meter utilizes lever principle to amplify pressure arm length, enabling precise thickness testing of samples under 2kPa, 20kPa, and 200kPa pressure conditions within limited space and weight constraints. The instrument features simple structure, attractive design, and easy operation, making it the preferred choice for geotextile and geomembrane thickness production and verification.

Scope of Application

Designed for determining thickness of geosynthetics and related products under different pressures and specified time intervals.

Compliance Standards

JTG E50, ISO 9863, GB/T 13761

Technical Parameters

Parameter	Specification
Presser foot area	25cm² (round diameter Ф56.42mm)
Presser foot weight	5N (weight 510.2g four)
Sample pressure	2±0.01KPa; 20±0.1KPa; 200±0.1KPa
Percentage table	0～24±0.01mm
Micrometer	0～25±0.001mm
Stopwatch	Minimum division value 0.1s
Dimensions	730320350mm
Weight	40Kg
