Geotextile Cone Dynamic Perforation Tester Drop Punch GB / T17630 ISO 13433

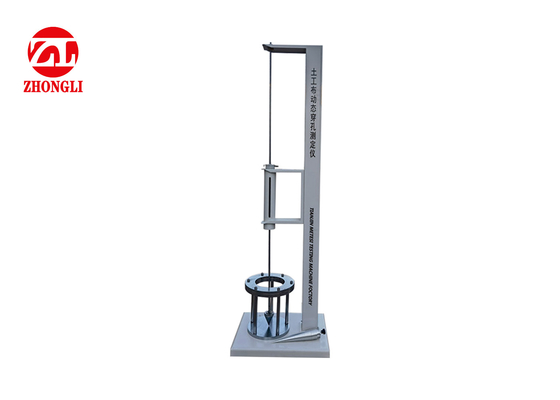

Large Image : Geotextile Cone Dynamic Perforation Tester Drop Punch GB / T17630 ISO 13433

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2406

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Inner Diameter Of Clamping Ring:	150±0.5(mm)	The Distance From The Tip Of The Steel Cone To The Sample:	500±2(mm)
Stainless Steel Cone:	Taper Angle 45	Total Mass:	1000±5(g)
Cone Quality:	600±5(g)	Dimensions:	435×575×1600(mm) Weight 55KG
Highlight:	Dynamic Perforation Tester , Geotextile Cone Perforation Tester , Drop Punch Perforation Tester

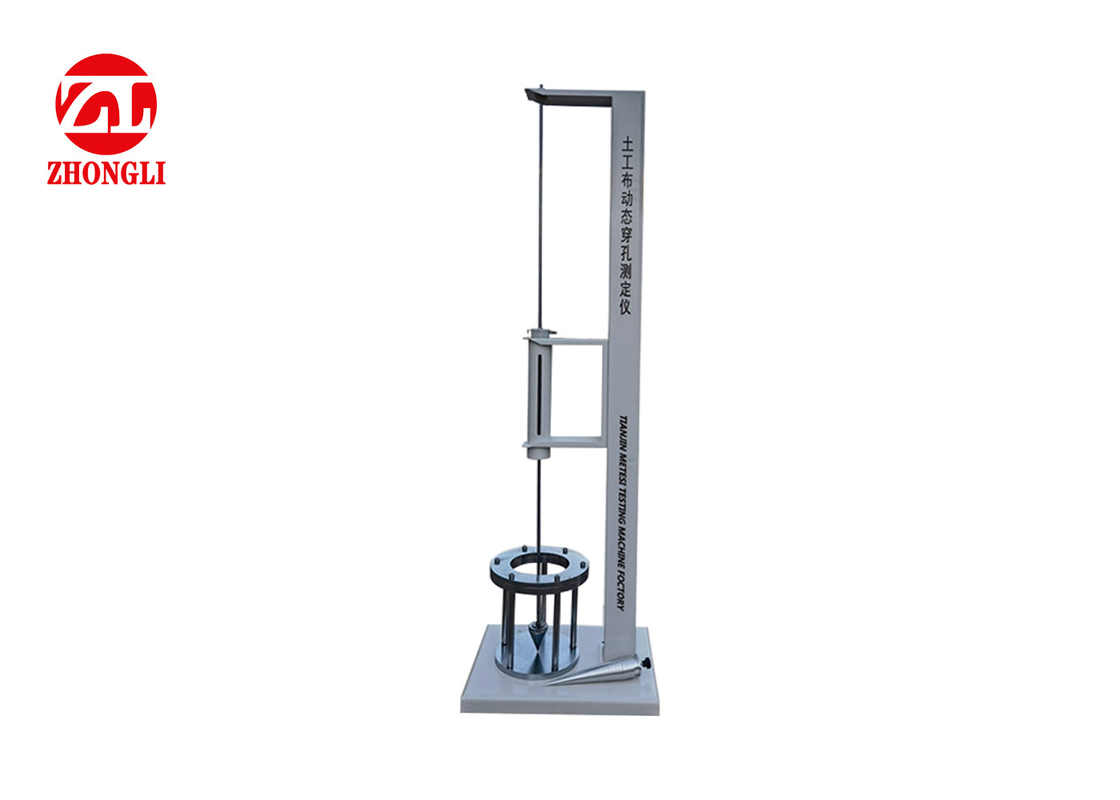

Geotextile Cone Dynamic Perforation Tester Drop Punch GB/T17630 ISO 13433

This instrument determines the ability of geotextiles and related products to resist penetration by steel cones falling from a fixed height, characterizing damage caused by sharp stones impacting geotextile surfaces. Performance conforms to national standard GB/T17630 requirements for "Dynamic Perforation Test of Geotextiles and Related Products - Falling Cone Method".

Testing Principle

The geotextile sample is clamped horizontally in a clamping ring, and a steel cone of specified mass is dropped onto the sample from 500mm height to create a hole. A small-angle measuring cone marked with scales is then inserted into the hole to measure penetration depth.

Technical Parameters

Parameter	Specification
Inner diameter of clamping ring	150±0.5 mm
Distance from steel cone tip to sample	500±2 mm
Stainless steel cone taper angle	45°
Total mass	1000±5 g
Cone mass	600±5 g
Dimensions	4355751600 mm
Weight	55 kg
