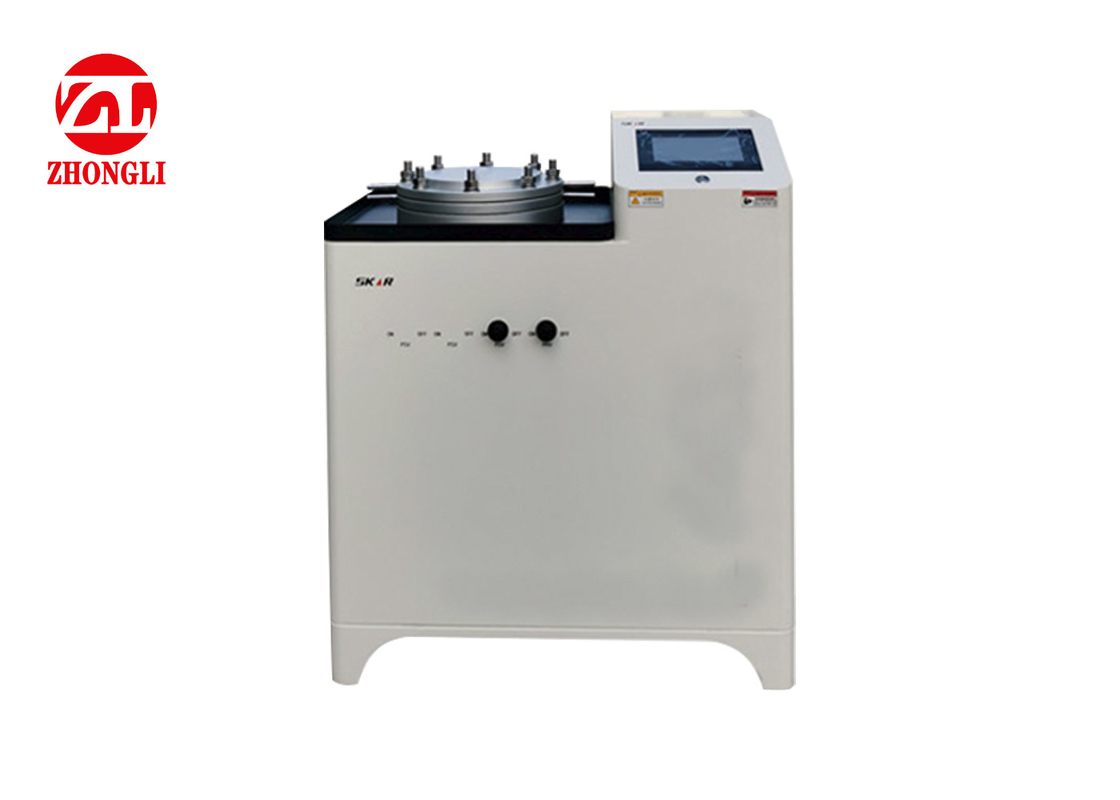

Geosynthetics Hydrostatic Pressure Tester for Geomembrane Impermeability

Large Image : Geosynthetics Hydrostatic Pressure Tester for Geomembrane Impermeability

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2408

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Test Accuracy:	0.5%	Through Hole Diameter Of Perforated Plate:	ф3mm
Diameter Of Water Collector:	ф200mm	Pressure Adjustment Range:	2.5MPa
Sample Size:	ф200mm, Effective Cross-sectional Area ≥200cm2	Dimensions:	600×750×1200mm
Power Supply:	AC380V	Total Weight:	87kg
High Light:	Geosynthetics Hydrostatic Pressure Tester , Impermeability Hydrostatic Pressure Tester , Impermeability Laboratory Testing Instrument

Geosynthetics Hydrostatic Pressure Tester ,Geomembrane Impermeability Tester

Geosynthetic material hydrostatic pressure tester is also called geomembrane impermeability tester, geosynthetic impermeability tester. It is suitable for testing the permeability coefficient of geomembrane and geocomposite material under the specified hydraulic pressure difference. Stable performance, convenient and practical.

Technical Parameter

Test accuracy	0.5%
Through hole diameter of perforated plate	ф3mm
Diameter of water collector	ф200mm
Pressure adjustment range	2.5MPa
Sample size	ф200mm, effective cross-sectional area ≥200cm2
Dimensions	600×750×1200mm
power supply	AC380V
Total Weight	87kg
