YT1227 SL235 Geosynthetic Gradient Ratio Test Geotextile Material Clogging Tester

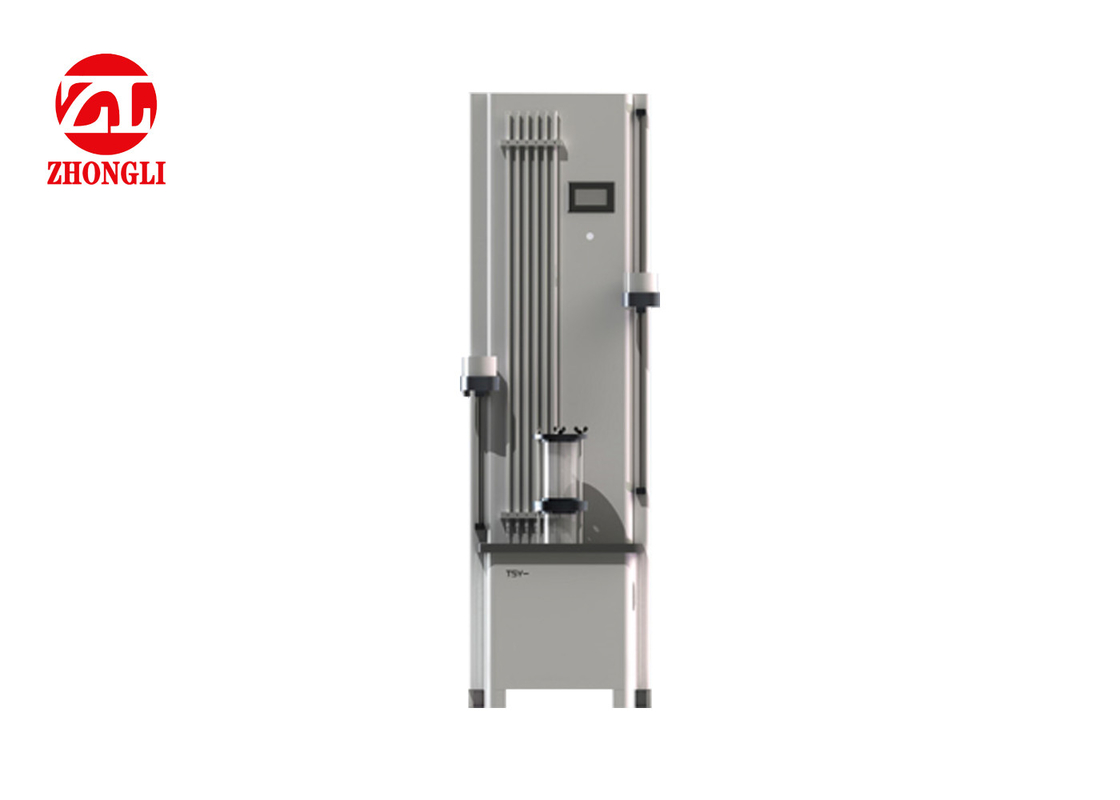

Large Image : YT1227 SL235 Geosynthetic Gradient Ratio Test Geotextile Material Clogging Tester

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2409

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Inner Diameter Of Test Tube:	Ф100mm	Thickness Of Soil Sample:	100mm
Screen Aperture:	6mm	Graduation Value Of Pressure Measuring Tube:	1mm
Temperature Measurement Range:	5~50℃	Power Supply:	220V, 50Hz
Dimensions:	800×700×2070mm	Weight Of The Whole Machine:	125Kg
Highlight:	Geotextile Gradient Ratio Test , Geosynthetic Gradient Ratio Test , Geotextile Clogging Laboratory Testing Instrument

YT1227 SL235 Geosynthetic Gradient Ratio Test Geotextile Material Clogging Tester

The YT1227 SL235 Geosynthetic Gradient Ratio Tester is designed for filter layer testing of geosynthetic materials. Developed and manufactured according to JTG E50, SL235 and other standards, this equipment measures the permeability coefficient and gradient ratio of soil and geotextile systems and their interfaces under controlled water flow conditions. It also determines the mud content of geotextiles to identify unacceptable clogging when used as filter layers with specific soils. The fouling test penetration fixture features alloy materials on both sides with organic material in the middle, providing excellent sealing performance and convenient, fast sample loading and unloading.

Technical Specifications

Inner diameter of test tube	Ф100mm
Thickness of soil sample	100mm
Screen aperture	6mm
Graduation value of pressure measuring tube	1mm
Temperature measurement range	5~50℃
Power supply	220V, 50Hz
Dimensions	8007002070mm
Weight of the whole machine	125Kg
