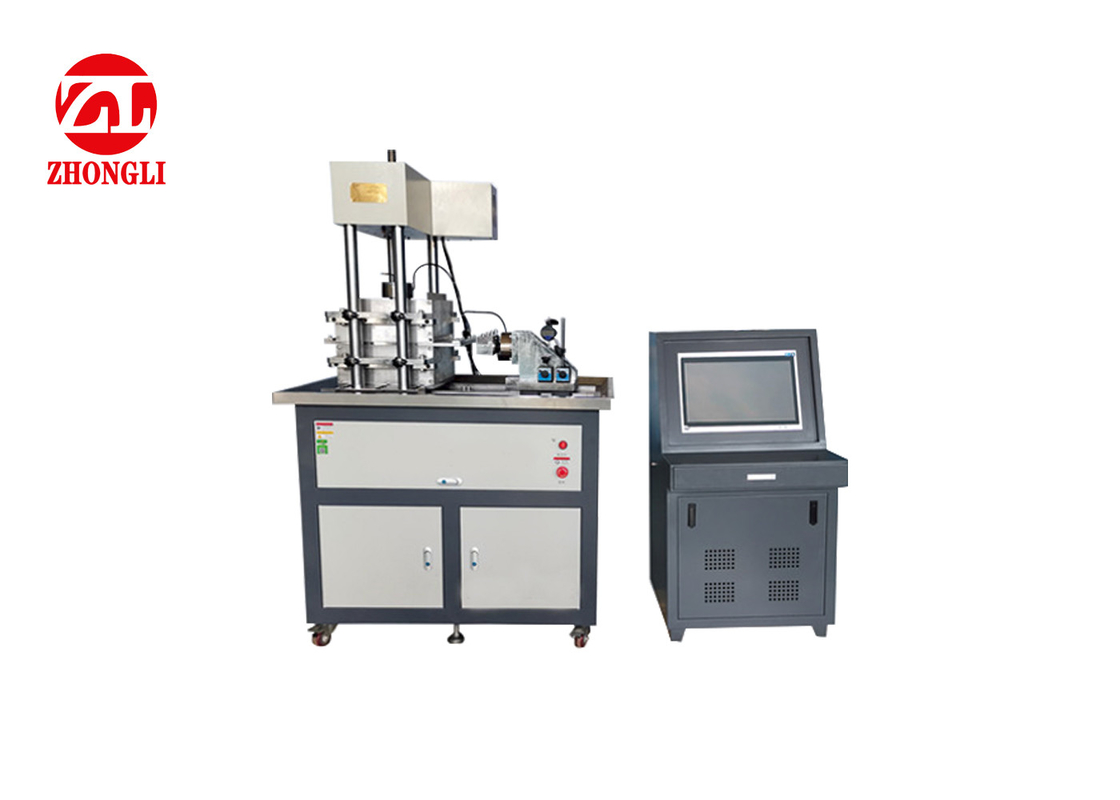

Geosynthetics Friction Pull Out Resistance Test Direct Shear For Geotextiles Mat

Large Image : Geosynthetics Friction Pull Out Resistance Test Direct Shear For Geotextiles Mat

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2410

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T, L/C, Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Inner Diameter Of Drawing Box:	300×300×300 Mm	Force Measurement Accuracy Error:	≤±0.3%
Force Measurement Range:	0 ~ 30 KN	Normal Pressure:	0～200 KPa
Horizontal Drawing Rate:	0.5mm/min	Horizontal Drawing Displacement:	0～50mm
Displacement Accuracy Error:	≤±0.3%	Power Supply:	220V 50Hz
Horizontal Shear Rate:	0.02～3mm/min	Dimensions:	1500×650×1700mm
Highlight:	Geotextiles Mat Pull Out Resistance Test , Geosynthetics Friction Pull Out Resistance Test , Geotextiles Mat Laboratory Testing Instrument

ASTM D5321 Geosynthetics Friction Direct Shear Tester Used Pull Friction Test Of Geotextiles Mat

The friction characteristics of the interface of sand/geotextile were determined by testing the contact surface of standard sand/geotextile. This instrument is suitable for all geotextiles and related products. The instrument adopts high-precision servo motor.

By testing the pull-out friction resistance of the geosynthetic material and the surrounding soil, the pull-out resistance characteristics of the geosynthetic material were determined. It is suitable for soil of various soil properties and states and various types of geotextiles, geomembranes, geotextiles and geogrids.

Standards:

ISO12957.1, GB/T17635.1, ASTMD5321, JTGE50, SL235

Technical parameters

1. Inner diameter of drawing box	300×300×300 mm
2. Force measurement accuracy error	≤±0.3%
3. Force measurement range	0 ~ 30 KN
4. Normal pressure	0～200 kPa
5. Horizontal drawing rate	0.5mm/min
6. Horizontal drawing displacement	0～50mm
7. Displacement accuracy error	≤±0.3%
8. Power supply	220V 50Hz
9. Shearing box size	300×300mm
10. Horizontal shear rate	0.02～3mm/min
11. Horizontal shear displacement	0～50mm
12. Dimensions	1500×650×1700mm
13. Weight of the whole machine	450Kg
