ISO 13431 Tensile Testing Machine GB / T 17637 Geosynthetic Creep

Large Image : ISO 13431 Tensile Testing Machine GB / T 17637 Geosynthetic Creep

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2413

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Maximum Load:	20KN	Load Accuracy:	≤±1%
Fixture Width:	50mm And 200mm Optional	Effective Creep Space:	800mm
Effective Test Width:	350mm	Displacement Measurement Accuracy:	0.03mm
Time Measurement Error:	≤±1%	Dimensions:	2300×550×1850 Mm
Highlight:	Geosynthetic Creep Tensile Testing Machine , Geosynthetic Tensile Testing Machine , Geosynthetic Tensile Creep Test

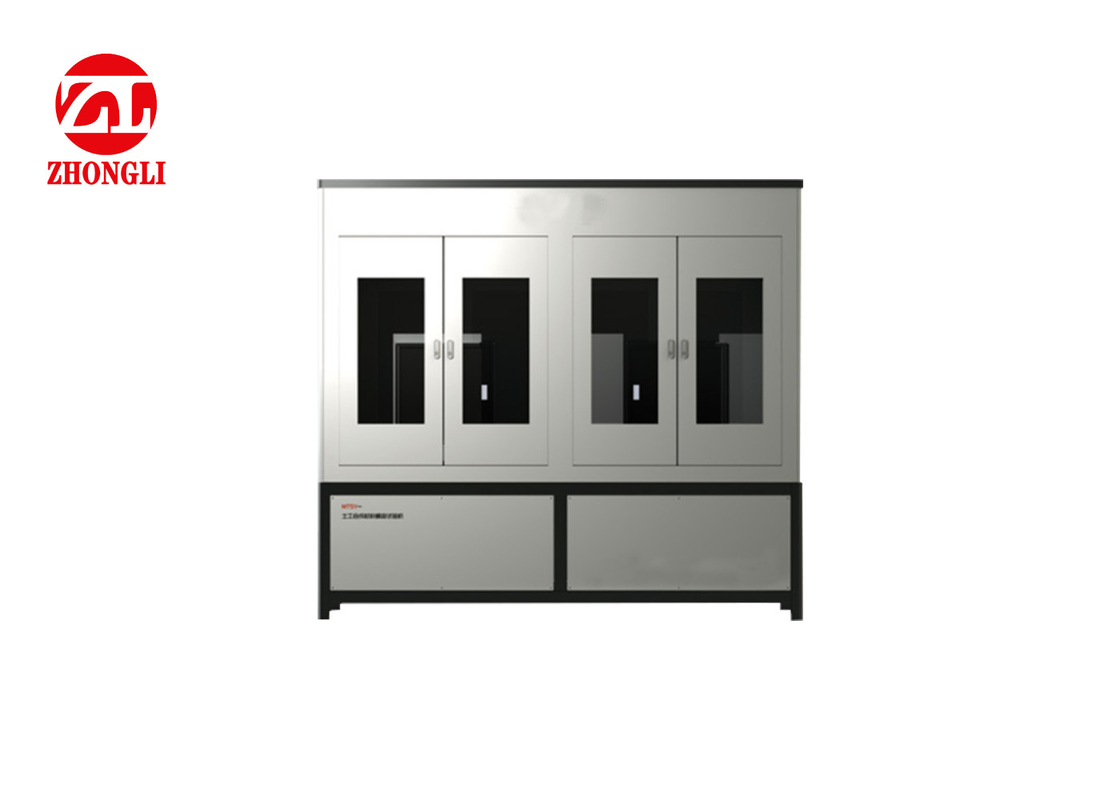

ISO 13431 GB/T 17637 Geosynthetic Creep Tensile Testing Machine

This specialized testing machine evaluates the tensile creep and tensile creep rupture properties of geotextiles and related products. It is designed for products that may experience structural collapse due to premature failure or when creep affects reinforcement integrity. The system comprises three main components: data acquisition and processing unit, lever weight loading mechanism, and the main frame structure. The entire testing process can be controlled via microcomputer, with automatic periodic data collection or manual data acquisition options.

Compliance Standards

ISO 13431
GB/T 17637
JTG E50
SL 235

Technical Specifications

Parameter	Specification
Maximum Load	20KN
Load Accuracy	≤±1%
Fixture Width	50mm and 200mm optional
Effective Creep Space	800mm
Effective Test Width	350mm
Displacement Measurement Accuracy	0.03mm
Time Measurement Error	≤±1%
Dimensions	23005501850 mm
