JTGE50 Geosynthetics Thermal Conductivity Tester Intelligent Guarded Hot Plate

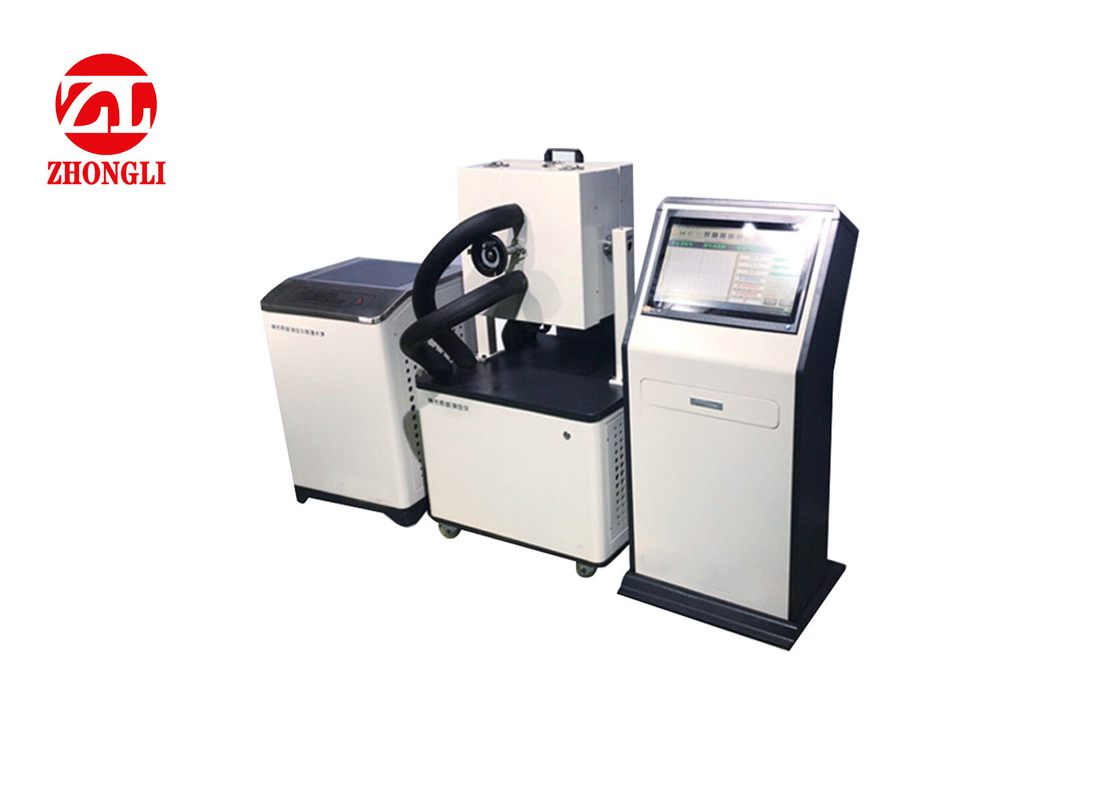

Large Image : JTGE50 Geosynthetics Thermal Conductivity Tester Intelligent Guarded Hot Plate

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	ISO
Model Number:	ZL-2414

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Packaged within wooden case
Delivery Time:	5-7 days
Payment Terms:	T/T,L/C,Western Union
Supply Ability:	100 set per month

Contact Now

Detailed Product Description

Specimen Specification:	300X300mm Thickness 10～45mm (preferably Thickness 25mm)	Cold Plate Temperature:	5℃～50℃
Hot Plate Temperature:	Room Temperature～80℃	Test Accuracy:	≤2%
Test Repeatability:	<1%	Power Supply Voltage:	AC 220V Total Power 2KW
Use Environment:	10-40℃ (recommended Use Environment Is Laboratory With Air Conditioner, Temperature Range: 25±5℃)	Dimensions:	800 X 600 X 1600mm
Highlight:	220V Thermal Conductivity Tester , Geosynthetics Thermal Conductivity Tester , Geosynthetics Thermal Conductivity Testing Machine

JTGE50 Geosynthetics Thermal Conductivity Tester Intelligent Guarded Hot Plate

The JTGE50 Geosynthetics Intelligent Guarded Hot Plate Thermal Conductivity Tester is specialized equipment designed and manufactured according to relevant standards including GBl0294 and JTGE50. This instrument is used for precise detection of thermal conductivity in thermal insulation materials.

Application Scope

Thermal conductivity (or thermal resistance) is the primary thermal performance characteristic of insulation materials and serves as the main technical indicator for identifying material insulation properties. With the introduction of building energy conservation regulations, accurate measurement of this parameter has become increasingly important for proper material selection and energy efficiency optimization.

Technical Specifications

Parameter	Specification
Specimen Specification	300*300mm, Thickness 10-45mm (recommended thickness 25mm)
Cold Plate Temperature	5℃ - 50℃
Hot Plate Temperature	Room Temperature - 80℃
Test Accuracy	≤2%
Test Repeatability	<1%
Power Supply Voltage	AC 220V, Total Power 2KW
Operating Environment	10-40℃ (recommended laboratory with air conditioning: 25±5℃)
Dimensions	800 * 600 * 1600mm
Machine Weight	215Kg
