"Computer Control Torque Rheometer"

"Computer Control Torque Rheometer"
"Computer Control Torque Rheometer" "Computer Control Torque Rheometer" "Computer Control Torque Rheometer" "Computer Control Torque Rheometer"

Large Image :  "Computer Control Torque Rheometer"

Product Details:
Place of Origin: China
Brand Name: ZL
Certification: CE,ISO
Model Number: ZL-3001C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Computer Control Torque Rheometer and Mixer 3 Segments Heating is packaged within wooden case.
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 60 Sets
Contact Now
Detailed Product Description
Product Name: Computer Control Torque Rheometer And Mixer 3 Segments Heating Computer: Dell Desktop Computer
Temp. Control: 6 Segments Temperature: Room Temperature To 350℃
Torque Measuring Range: 0~300N.m Speed Accuracy: 0.5%F.s
Melt Pressure Measuring Range: 0~100Mpa Key Words: Torque Rheometer Mixer
Computer: Industrial Computer Desktop Computer
Highlight:

Computer Control Mixer Torque Rheometer

,

3 Segments Heating Mixer Torque Rheometer

,

Torque Rheometer And Mixer

\n

\n
Computer Control Torque Rheometer and Mixer 3 Segments Heating
\n
\n
Mixer Specifications
\n
    \n
  • Mixer volume: 60ml
    • \n
  • Material: STAVAX stainless steel imported from Sweden ASSAB
    • \n
  • Rotor type: Roller, Banbury, Delta, Cam, Delta, Sigma
    • \n
  • Rotor treatment: Nitridation
    • \n
  • Nitridation depth: \u22650.2mm
    • \n
  • Temperature range: RT-350\u2103 (3 segments of electrical heater)
    • \n
  • Temperature control accuracy: \u00b10.5\u2103
    • \n
  • Heating rate: 200\u2103/11 minutes
    • \n
  • Gear ratio: 3:2
    • \n
  • Torque range: 0-300Nm
    • \n
  • Temperature sensor: K-shaped thermocouple
    • \n
  • Heating method: Electrical heating
    • \n
  • Heater: Imported heater
    • \n
  • Heating power: 1700W
    • \n
  • Heating range: 3 segments
    • \n
  • Cooling method: Compressed air cooling
    • \n
\n
\n
\n
Torque Rheometer Main Control
\n
    \n
  • Motor brand: FUji Servo motor
    • \n
  • Power: 4Kw
    • \n
  • Power source: AC220VNE,14A,E\u22644\u03a9
    • \n
  • Computer: industrial computer desktop computer
    • \n
  • Temperature control: 6 segments
    • \n
  • Temperature range: Room temperature to 350\u2103
    • \n
  • Temperature control accuracy: \u00b10.5\u2103
    • \n
  • Cooling control: 4 segments of compressed air
    • \n
  • Torque measuring range: 0~300N.m
    • \n
  • Torque check accuracy: 0.5%F.s
    • \n
  • Rotate speed: 2~200rpm (stepless)
    • \n
  • Speed accuracy: 0.5%F.s
    • \n
  • Melt pressure measuring range: 0~100Mpa
    • \n
  • Melt pressure measuring accuracy: 0.5\uff05F.S
    • \n
\n
\n
\n
Software Capabilities
\n
    \n
  • Measuring and control
    • \n
  • Mixer data processing system
    • \n
  • Extruder data processing system
    • \n
  • Polymer melt viscosity measuring data processing system
    • \n
\n
\n
\n
Spare Parts and Tools
\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n\n
No.DescriptionUnitQuantity
1Power cord/PC1
2Signal cable/PC1
3Tool box/PC1
4Hex wrenchsuit1
5"C" wrench/PC1
6Monkey wrench/PC1
7Loading hopper/PC1
8Safety copper pin/PC4
95kg weight/PC1
10485 convertor/PC1
11Copper shovel/PC2
12Copper brush/PC2
13Cross junction plate/PC1
14Screw unlock pin/PC1
15Cotton glovespair1
\n
\n
\n
Product Images
\n

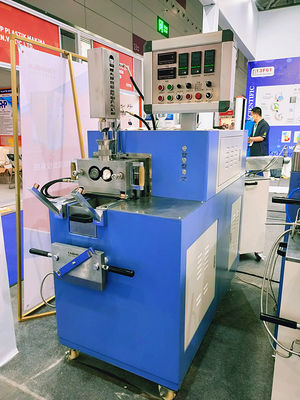

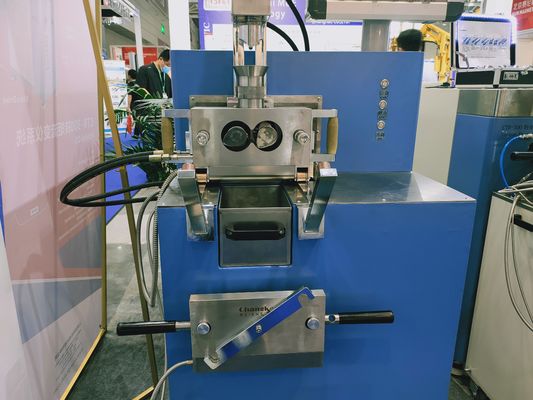

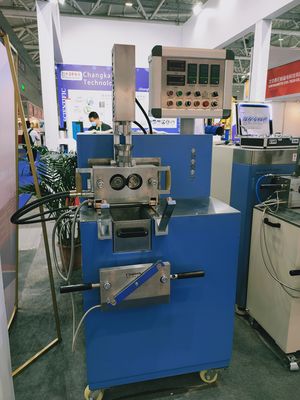

\nComputer Control Torque Rheometer and Mixer front view\nComputer Control Torque Rheometer and Mixer side view\nComputer Control Torque Rheometer and Mixer control panel\n
\n
\n
