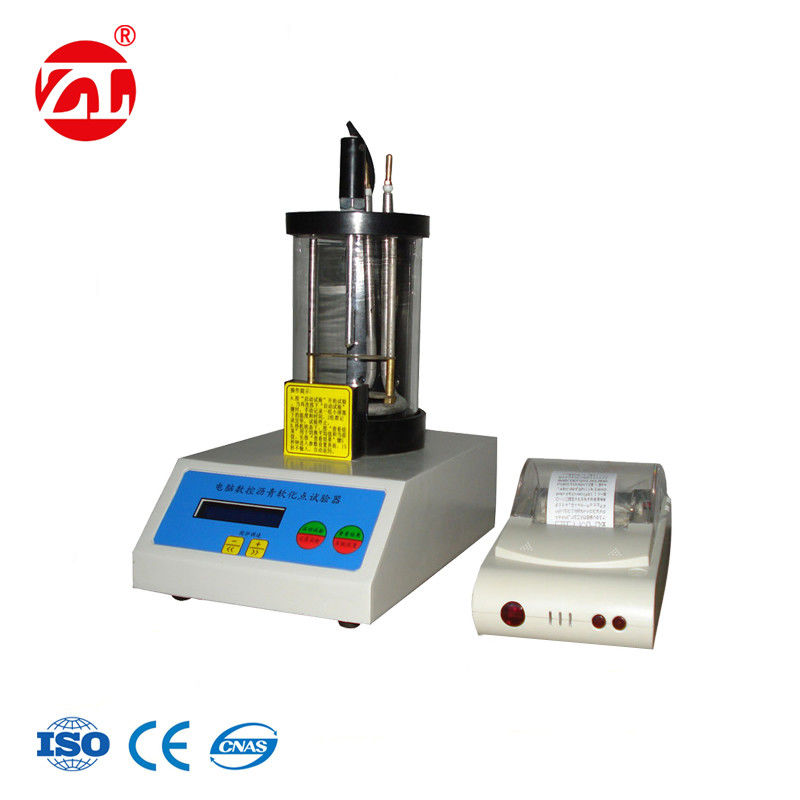

Microcomputer Automatic Asphalt Softening Point Tester With LCD GB/T4507

Large Image : Microcomputer Automatic Asphalt Softening Point Tester With LCD GB/T4507

Product Details:

Place of Origin:	China
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-2409

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	GB/T4507 Microcomputer Automatic Asphalt Softening Point Tester with LCD is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	60 Sets

Contact Now

Detailed Product Description

Product Name:	GB/T4507 Microcomputer Automatic Asphalt Softening Point Tester With LCD	Temperature Range:	-5~270°C
Test Range:	5~180°C	Rate Of Temperature Rise:	(5±0.5)°C/min
Testing Method:	Manual Testing Or Opto-electrical Automatic Testing	Steel Ball Quality:	3.5g±0.05g
Steel Ball Diameter:	9.53mm	Temperature Precision:	0.1°C
Highlight:	rubber tensile testing machine , rubber testing equipments

Microcomputer Automatic Asphalt Softening Point Tester With LCD GB/T4507

Product Overview

The GB/T4507 Microcomputer Automatic Asphalt Softening Point Tester with LCD is designed for precise determination of softening points in asphalt, tar, liquid asphalt, and various asphalt types. This instrument serves as the optimal solution for asphalt manufacturers, highway and bridge construction companies, educational institutions, and research departments.

Compliance Standards

Manufactured in accordance with the National Standard of People's Republic of China GB/T4507 and the Industry Standard JTJ052 Specifications and Test Methods of Bitumen and Bituminous Mixtures for Highway Engineering.

Key Features

Microcomputer-controlled technology with linear heating and automatic stirring operation
Simultaneous testing of two samples with automatic result display
Convenient, efficient, and reliable operation for laboratory environments
Stable heating rate of 5.0±0.5°C/min after 3 minutes in measurement state
Continuously adjustable stirrer speed for precise control

ZL-2409 Asphalt Softening Point Tester (LCD Display, High Temperature Type)

Parameter	Specification
Temperature Range	-5~270°C
Test Range	5~180°C
Rate of Temperature Rise	(5±0.5)°C/min
Testing Method	Manual testing or opto-electrical automatic testing
Steel Ball Mass	3.5g±0.05g
Steel Ball Diameter	9.53mm
Steel Ball Sinking	25.4mm
Ring Standard	JTJ052-2000 rules standard
Timing Range	0~99min 99sec
Temperature Precision	0.1°C
Implementation Standard	T4505, ASTMD36, TO6O6-2000
Supply Voltage	220V
Dimensions	300×200×300mm
Weight	12KG
Power	1.1KW
Environmental Temperature	5~40°C
Environmental Humidity	≤85%
