" One - key " Operation Automatic Condom Inflation Burst Testing Machine

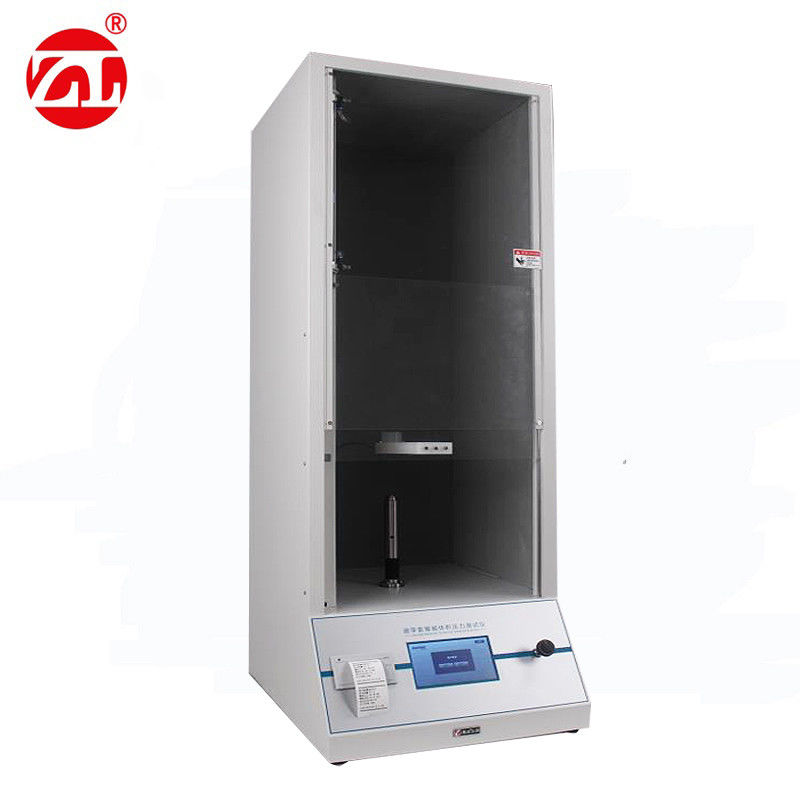

Large Image : " One - key " Operation Automatic Condom Inflation Burst Testing Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3061

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	" One - key " Operation Automatic Condom Inflation Burst Testing Machine is packaged within wooden case.
Delivery Time:	5-8 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	50 sets / month

Contact Now

Detailed Product Description

Product Name:	" One - Key " Operation Automatic Condom Inflation Burst Testing Machine	Pressure Range:	0-99.99KPa
Pressure Accuracy:	0.01Kpa	Volume Range:	0-100dm 3
Volumetric Accuracy:	0.01dm 3	Air Interface:	Ф 6 Mm Pu Tube
Highlight:	rubber tensile testing machine , rubber hardness tester

"One-Key" Operation Automatic Condom Inflation Burst Testing Machine

Product Overview

This automatic testing machine is designed for measuring the bursting capacity and pressure of various condoms, rubber gloves, and similar products. It complies with GB7544-2009 Appendix G requirements for bursting volume and pressure measurement.

Key Features

Standard automatic air expansion shaft clamping system that doesn't damage samples
Professional measurement and control software for real-time statistics of bursting flow, volume, and pressure data
"One-key" operation for efficient and intelligent testing process
Touch screen display with automatic result statistics and printing
Flexible test modes with accessory support for diverse applications
Automatic protective door lifting mechanism
Remote upgrade capability
Three-level authority system with data audit and search functions
Optional PC software available

Testing Principle

The condom is placed on the blow rod, covering the bilge cover position. The instrument first inflates the inflating sleeve, securing the condom between the inflating sleeve and clamp. After a brief software delay, the condom is inflated until it bursts. The screen displays bursting pressure and gas volume during bursting, expressed in cubic decimeters (integrated to 1dm³) and kilopascals (rounded to 0.01 kPa). The inflation rate is adjustable, and tests can be manually terminated if air leakage occurs, recording bursting volume and pressure as zero.

Technical Specifications

Parameter	Specification
Pressure Range	0-99.99 KPa
Pressure Accuracy	0.01 KPa
Volume Range	0-100 dm³
Volumetric Accuracy	0.01 dm³
Air Source Pressure	0.6 MPa - 1 MPa (user-provided)
Air Interface	Ф 6 mm PU Tube
Overall Dimensions	300mm (L) × 350mm (W) × 430mm (H)
Power Source	AC 220V 50Hz
Net Weight	18 kg
Standard Configuration	Host, Micro Printer
Optional Parts	Professional Software, Communication Cable
