|Product Name:||PLC Melt Flow Rate Meter MFR & MVR For Plastic , Meltblow Fabric , Petrochemical||Die Diameter:||Ф2.095±0.005mm|
|Cylinder Diameter:||Ф9.550±0.025mm||Temperature Range:||50℃-450℃|
|Temperature Constant Accuracy:||±0.2℃||Resolution:||0.1℃|
rubber tensile testing machine,
rubber testing equipments

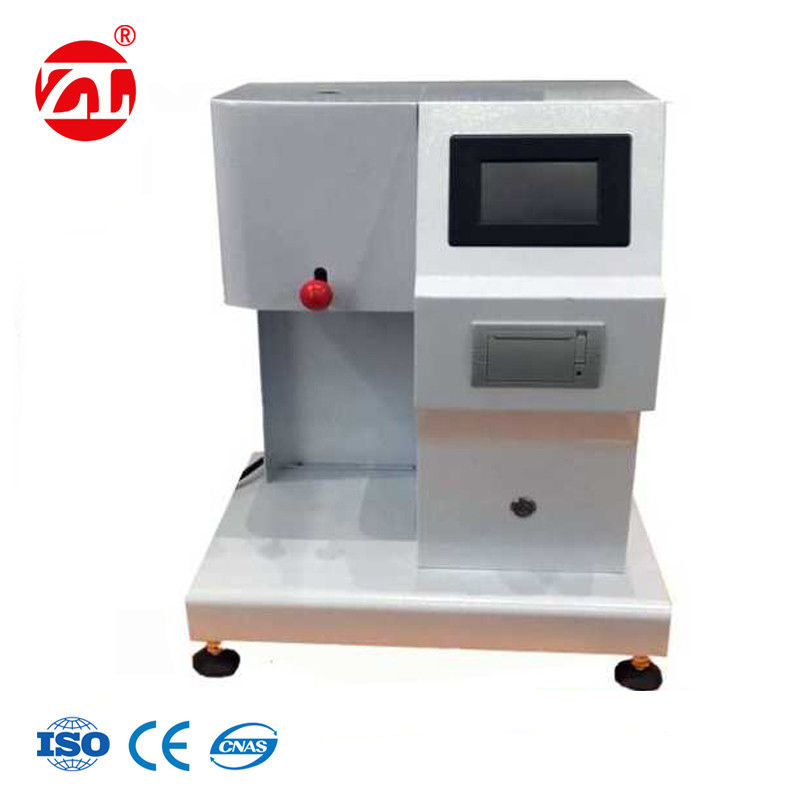

PLC Melt Flow Rate Meter MFR & MVR For Plastic , Meltblow Fabric , Petrochemical
ZL-3014C PLC Melt Flow Indexer meets the requirement of GB/T3682-2000,ASTM D3364(sand ASTM D1238-98.And also ,we design and manufacture the instrument after we made a reference of similar standards ,such as JB/T5456 and ISO 1133 .It is used to determine the melt mass-flow rate (MFR) and the melt volume-flow rate (MVR) of thermoplastics materials .It adopts auto sampling method and the cut samples are weighed up by balance when it is used to determine MFR .When it is used to determine MVR ,it measures the time which the piston is used to move the specified distance first through the displacement transducer and auto timer system and calculates MVR according to the formula later. The final results of the two methods are all displayed on the machine’s PLC screen and printed and exported by computer .The instrument has high accuracy on data measurement with simple operation and stable capability. It is not only suitable for the tests of engineering plastics with higher melt temperature ,such as PC ,FI plastics, nylon ,but also for the plastics with lower melt temperature ,such as PE ,PP ,POM ,PS ,ABS resin and poly carbonic acid ester ,etc .It has wide range of applications in some industries ,such as plastic fabrication ,plastic goods ,petrochemical industry ;collage and university and science and research institute and commodity inspection department .
1.Extrusion section :
|Cylinder length||152±0.1 mm|
|Diameter of piston head||9.475±0.015 mm|
|Length of piston head||
2 . Standard test load (kg ,8 grades)
1st grade :0.325kg = (piston stem +weight tray +heat insulation sheath +weight # 1) = 3.187N
2nd grade :1.200kg = (0.325+weight # 2 0.875) = 11.77N
3rd grade :2.160kg = (0.325+weight # 3 1.835) = 21.18N
4th grade :3.800kg = ((0.325+weight #4 3.475) =37.26N
5th grade :5.000kg = (0.325+weight #5 4.675) = 49.03N
6th grade :10.000kg = (0.325+weight #5 4.675+weight #6 5.000) =98.07N
7th grade :12.500kg = (0.325+ weight #5 4.675+weight #6 5.000+ weight #7 2.500) =122.58N
8th grade :21.600kg = (0.325+ weight #2 0.875+ weight #3 1.835+ weight #4 3.475+ weight #5 4.675+weight #6 5.000+ weight #7 2.500+weight #8 2.915) =211.82N
The test load relative error shall not be more than ±0.5% .
3.Temperature range : 50℃-450℃
4. Temperature constant accuracy : ±0.2℃
5. Resolution :0.1℃
6.Power :220V±10% 60Hz
1. How to choose the most suitable Mechanical Equipment ?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do andthe required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15~20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines
according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, we warmly welcome and sincerely invite you or your team to visit our factory, we will help to arrange hotel and pick up you from airport.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 95 countries, like USA, Canada, Russia,UK, Italy, Germany, European , India, Pakistan, Philippine, Singapore, Malaysia,Thailand , Vietnam, Korea,Saudi Arabia,Brazil...and so on.
6. How about your warranty?
Generally,our warranty is two years. Within the warranty period, we can offer technique support and part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.
8. What is the order process?
Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment - packing - delivery - customer receiving - after service.
9. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
