85 Ton Vertical Mode - Locking Horizontal Injection Tie Bar Less Machine

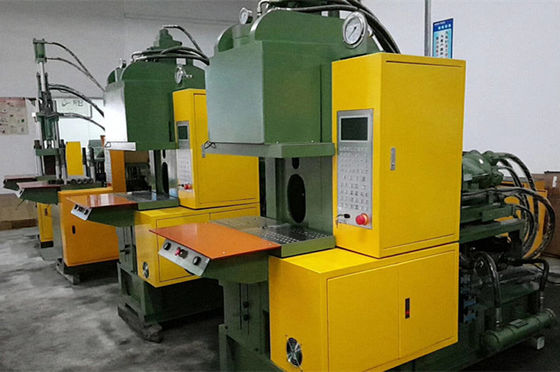

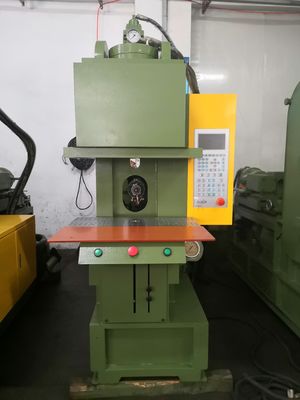

Large Image : 85 Ton Vertical Mode - Locking Horizontal Injection Tie Bar Less Machine

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3059C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	85 Ton Vertical Mode - Locking Horizontal Injection Tie Bar Less Machine is packaged within wooden case.
Delivery Time:	20-40 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	20 sets / month

Contact Now

Detailed Product Description

Product Name:	85 Ton Vertical Mode - Locking Horizontal Injection Tie Bar Less Machine	Number Of Temperature Control:	3+1
Screw Stroke:	168mm	Max.screw Speed:	0-190rpm
Max. Hydraulic Pressure:	175	Min. Mold Height:	200
Clamping Force:	85 Ton	Key Words:	Vertical Mode-Locking Horizontal Injection
Highlight:	rubber tensile testing machine , rubber testing equipments

85 Ton Vertical Mode - Locking Horizontal Injection Tie Bar Less Machine

Product Overview

Vertical mold opening with horizontal injection, suitable for insert molding
Nitrided steel screw, material tube, high torque hydraulic motor drive with multi-stage injection pressure for excellent plasticizing performance
Direct pressure mother-mold lock cylinder design featuring rapid mold clamping, low-pressure safety mold clamping, automatic mold closing, and multiple pressure control for enhanced safety and extended mold life
Electrical protection device ensuring operator safety and preventing errors
Automatic fault display for quick and easy maintenance
Electronic control and hydraulic systems using brand-name components for quiet, precise, and durable operation
Multi-stage temperature control with multi-stage injection pressure, rate of fire, and back pressure stepless adjustment for precision plastic parts molding
Optional servo energy-saving motor available
Wide range of programmable functions including automatic inclusion, extraction, and fully-automatic production
Available in two column and four column configurations (optional)

Technical Specifications

Type	Unit	ZL-3059-450	ZL-3059-550	ZL-3059-850
Injection System
Screw diameter	mm	30	35	45
Injection pressure	Kg/cm²	1742	1594	1244
Theoretical shot volume	cm³	85	135	260
Max. injection weight (PS)	g	77	123	290
Injection rate	cm³/sec	52	69	122
Screw stroke	mm	168
Max. screw speed	rpm	0-190
Nozzle contact force	tons	2.4	2.6	3.9
Nozzle retraction stroke	mm	180	200	150
Number of temperature control	-	3+1
Material hopper capacity	L	25	50
Clamping System
Clamping Force	tons	45	55	85
Opening Force	tons	8.3	13.5	15
Platen Size	mm	580×430	650×490	700×300
Distance Between Tie Bars	mm	400×250	500×340
Min. Mold Height	mm	260/200	210
Opening Stroke	mm	200	270
Max. Open Daylight	mm	460/400	480
Ejector Force	tons	1.3	2.5
Ejector Stroke	mm	45	80
Hydraulic Power System
Max. Hydraulic Pressure	Kg/cm² (mPa)	140	175
Pump Output	L/min	41	65	76
Oil Reservoir Capacity	L	130	150	300
Cooling Water Consumption	/hr	600-800	800-1000	1200-1500
Pump Motor Power	KW	7.5	11	11
Barrel Heating Power	KW	3.5	4.5	7.5
Total Wattage	KW	11	12	18.5
Others
Machine Weight	tons	1.5	2.5	5.6
Machine Dimensions L×W×H	m	1.8×1.17×2.34	2×1.2×2.69	3.9×1.5×2.7
