Heat Deformation And Vicat Soften Point Tester ( Digital Type )

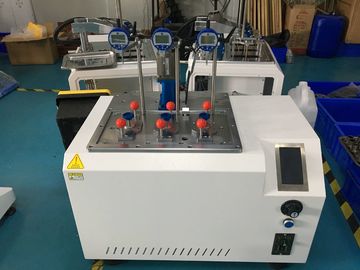

Large Image : Heat Deformation And Vicat Soften Point Tester ( Digital Type )

Product Details:

Place of Origin:	CHINA
Brand Name:	ZL
Certification:	CE,ISO
Model Number:	ZL-3015B

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Heat Deformation And Vicat Soften Point Tester is packaged within wooden case.
Delivery Time:	4-7 work days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	40 sets / month

Contact Now

Detailed Product Description

Product Name:	Heat Deformation And Vicat Soften Point Tester	Control Temperature:	Room Temperature -300℃
Temperature Precision:	±0.5℃	Deformation Resolution:	0.01 Mm
Sample Frame:	3 Sample Frame Automatic Up And Down	Heating Power:	4 Kw
Highlight:	rubber tensile testing machine , rubber testing equipments

Heat Deformation And Vicat Soften Point Tester (Digital Type)

Product Overview

This digital tester is used to determine heating deflection and Vicat softening temperature of plastics, rubber, and similar materials. It is an essential instrument for R&D institutions, colleges, and quality assurance departments of enterprises. The sample holders feature automatic up and down functionality for enhanced testing efficiency.

Standards Compliance

Meets Standards: IS075(E), IS0306(E), GB/T8802, GB/T1633, GB/T1634

Technical Specifications

Parameter	Specification
Control Temperature	Room temperature - 300℃
Temperature Rise Speed	(12±1)℃/6min (5±0.5)℃/6min
Temperature Precision	±0.5℃
Max. Temperature Control Accuracy	±1℃/6min (HDT) ±0.5℃/6min (VST)
Deformation Maximum Measurement	1mm (VST) 0.36mm (HDT)
Deformation Resolution	0.01 mm
Sample Frame	3 sample frame automatic up and down
Heating Medium	Cyclamen silicon oil (viscid degree 200), Transformer lead oil (prepared by customer)
Cooling Method	Natural cooling (Medium temperature > 150℃) Water cooling or natural cooling (Medium temperature < 150℃)
Quality of Load Rod and Pallet	68±1g
Heating Power	4 kW
Display	Digital type
Power	220V+10%, 15A, 15HZ

Weight Specifications

Weight Specification	A	B	C	D	E	F	G	H	I	J	W
Weight (g)	1000	500	200	100	50	20	10	5	2	1	76
No.	12	3	6	3	3	6	3	3	6	3	3

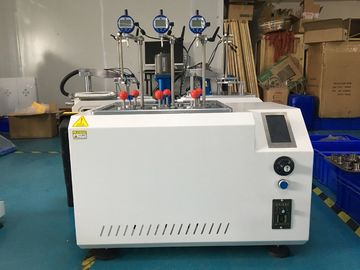

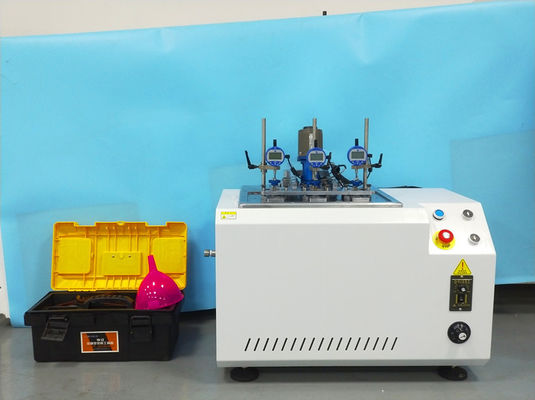

Product Images
