| Product Name: | Hydrostatic Pressure Tester | Pressurized Range: | 0.1Mpa-16MPa |
|---|---|---|---|
| Constant Pressure Accuracy: | +2%,-1% | Timing Range: | 1min~10000h |
| Timing Accuracy: | Less Than 0.1% | Test Pieces: | 3(standard),6 (or Order) 100 |
| High Light: | rubber tensile testing machine,rubber hardness tester |
||

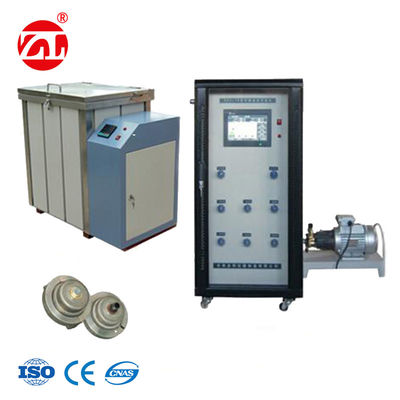

Hydrostatic Pressure Tester , LCD Touch Screen And PLC Control
Control mode
The machine uses a programmable logic controller (PLC) control, use LCD touch screen input control data and instructions and displays the results of operation and process control. The test is completed or reached the test of time, automatically stop working. Brightest are independent of each other, if the way the test is completed or fails, does not affect the work of other road.
The main structure:
The test machine by the pressure control system, consisting of a heated medium tank and the holder of three parts.
1. The pressure control system: mainly by the pressure source, the pressure lines and electrical control of three parts. Pressure source (ie, high-pressure pump) is used for the primary system pressure test conditions provided by the total pressure, the use of European and American imports or joint venture production of quality high flow high pressure piston pump. Pressurized pipe routing accumulators, pressure gauge, solenoid valves, check valves, filters, manual needle valve, connecting piping and other components, which is imported from Germany, the solenoid valve, pressure sensor using domestic high-end products, copper tubing tube, quick connect card sets, other fittings are stainless steel pipe fittings. Electrical control by touch screen, PLC master controller, AD converter module, relays, various switches and other components.
2, The thermostat medium tank: mainly by the cabinet, the circulation pump, a heater (condenser) and temperature control system. According to the user setting its working temperature, for medium water in the tank is heated (cooling), and gradually reaches the user desired temperature. Medium box split single thermostat and thermal heating and cooling two.
3, Fixtures: According chucking way into type A (without lever) and B (with lever) of two types. A type clamps are generally applicable to the following plastic pipe diameter φ250, B-type clamps are generally applicable to plastic pipe diameter φ250 above. This series of reasonable structure fixture clamping fast, reliable sealing, easy removal features.
XGY-16P series of hydrostatic and pipes burst test software with full Chinese graphical interface, real-time monitoring during the test during the test of time - pressure curve, with the printout, store the number of trials
Parameters
| Pressurized range | 0.1Mpa-16MPa |
| Constant pressure accuracy | +2%,-1% |
| Timing range | 1min~10000h |
| Timing accuracy | less than 0.1% |
| Test pieces | 3(standard),6 (or order) 100 |
| Power supply | 220v±10% |
| Temp Range | Room-temp.~95°C or 18°C~95°C (Thermal cooling medium tank) |
| Power | AC220V,4.5kw |
