Product Details:
Payment & Shipping Terms:
|
Model Number: | ZL-3012A | Dial Value: | 0 ~ 100HA |
---|---|---|---|
Recommended Range: | 20 ~ 90HD | Pressure Needle Head Size: | 0-2.5mm |
Weight: | About 0.5 Kg | Warranty: | 12 Month |
Highlight: | rubber testing equipments,rubber hardness tester |

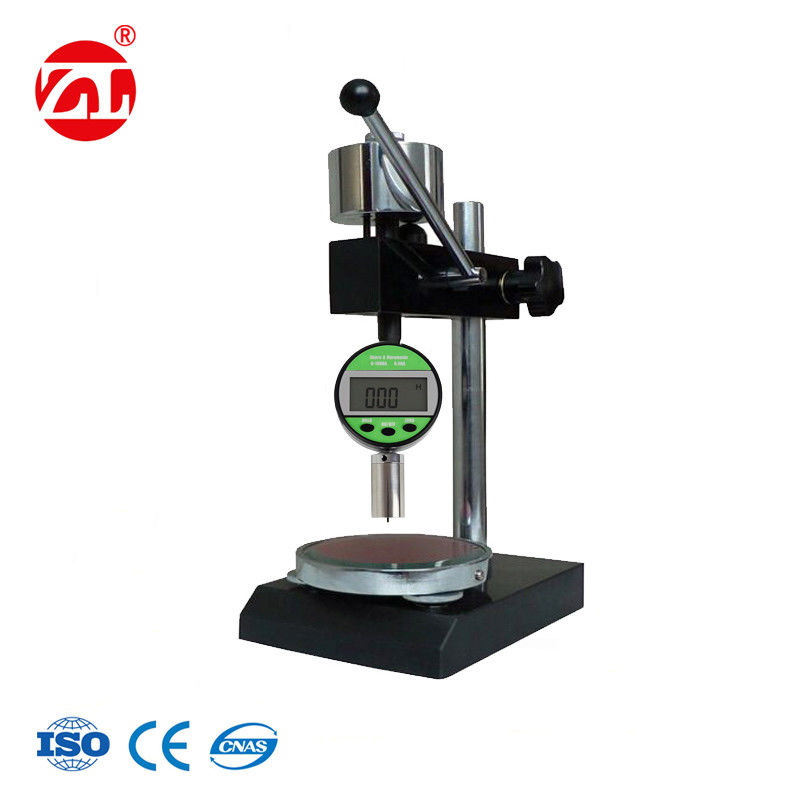

GB T531 Shore A Rubber Testing Machine , Plastic Hardness Test Meter
1. Equipment Overview:
Shore A Rubber Hardness Tester is a measure of vulcanized rubber, rubber and plastic hardness
instrument, which has A-type, D type, C type three kinds of patterns. A-type and D type were applied to the
low hardness and high hardness in the hardness of rubber materials. C-applied compression rate of 50%, the
stress 0.049Mpa above, the use of rubber and the use made of plastic foam in the shoe with micro hardness
testing. The hardness Executive GB/T531, GB2411, HG/T2489JB6148 requirements.
2. Technical parameter:
Product Name | ZL-3012A Shore A Rubber Hardness Tester |
Dial Value | A type 0-100HA,D type 0-100HD,C type 0-100HW |
Pressure needle stroke | 0-2.5mm |
Pressure needle tip pressure | A type,C type Z0.55N-8.06N D type 0-44.5N |
Accuracy | ±1HA |
3.Meet standard:
GB/T531, GB2411, HG/T2489JB6148
